| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | K26 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:K26 forward

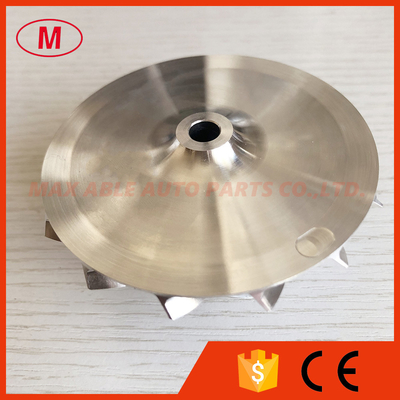

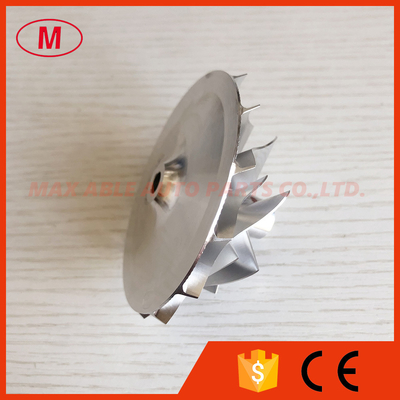

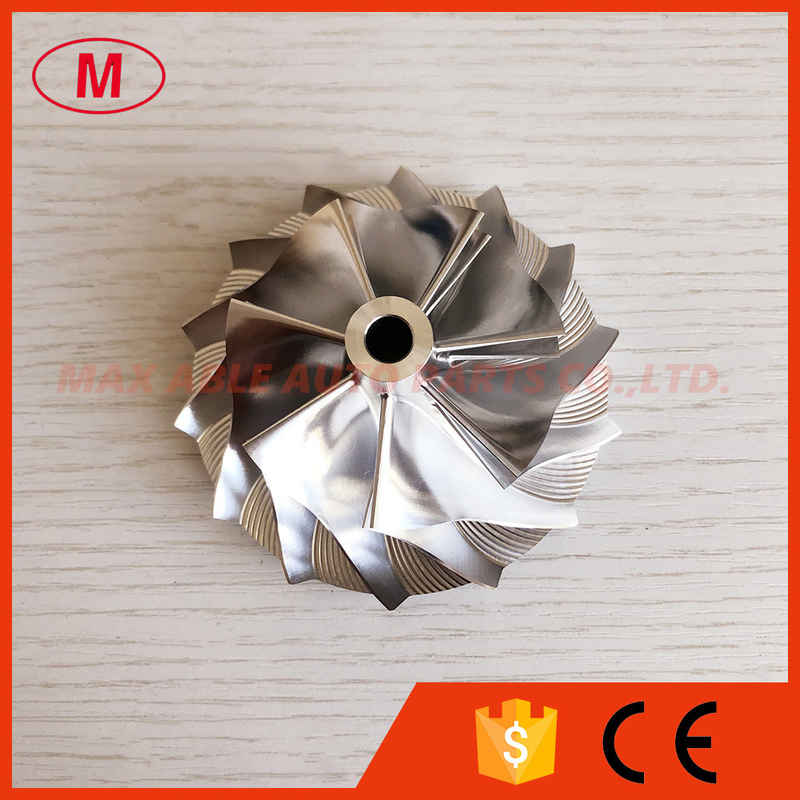

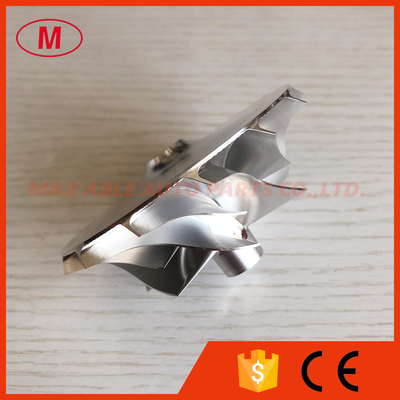

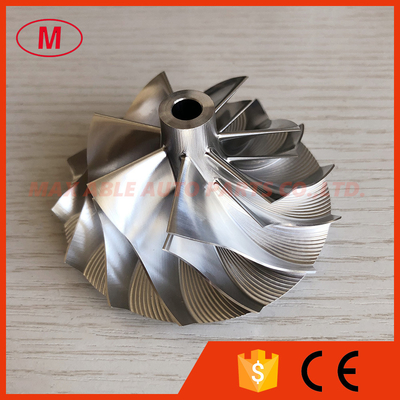

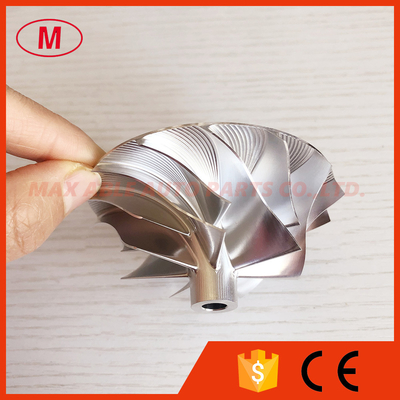

2.K26 55.40/77.00mm 7+7 blades high performance turbo milling/aluminum 2618/billet compressor wheel
3.SIZE:
Nose Diameter:13.26mm
inducer:55.40mm
Exducer:77.00mm
Tapered tip exducer:81.71mm
Tip height:5.08mm
Superback:5.30mm
Overall height:40.30mm
bore size :7.02mm
bore type:through
Trailing angle:60 degree
Cutback:3.0mm
SP Height angle:-3.00
Blade height:25.92mm
Splitter height:17.05mm
7+7blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5. aluminum 2618/milling/ billet high performance compressor wheel
6.Please send email to me or talk to me on online ,if you want to know more details.
All the compressro wheels have been balanced.
