| Brand Name: | NO |
| Model Number: | GT4088R |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GT4088R forward

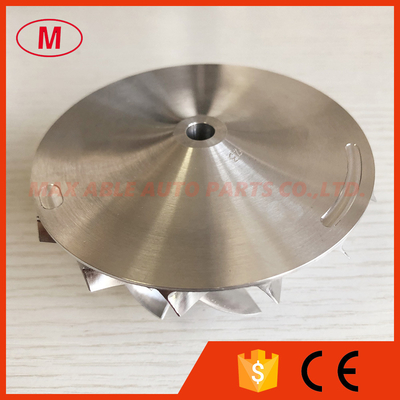

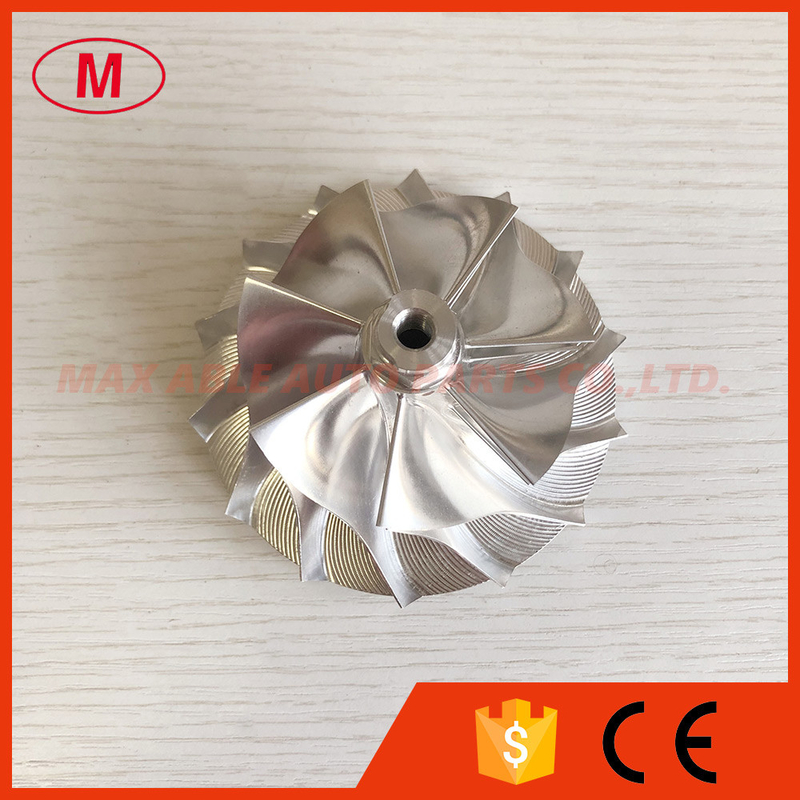

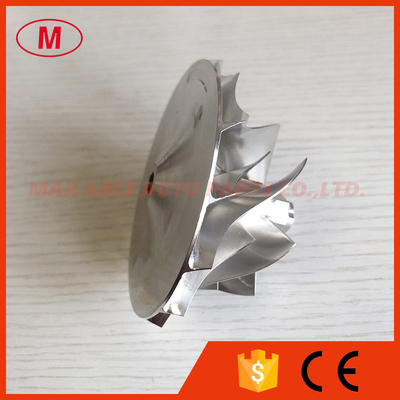

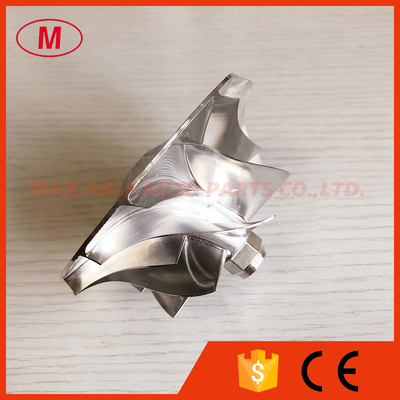

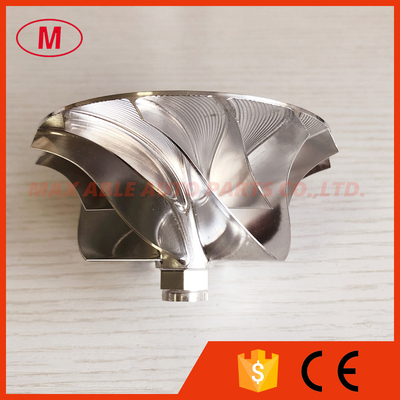

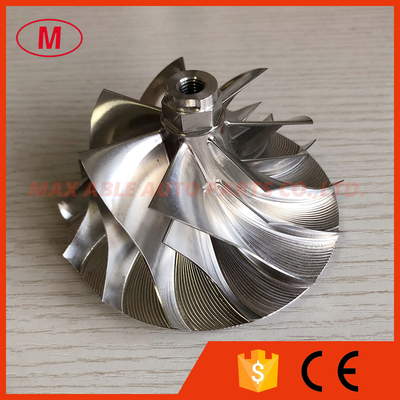

2.GT4088R 63.50/88.25mm 451583-0004 7+7blades Turbocharger Billet/milling/aluminum 2618 compressor wheel for racing 751470-5003
3.Size:
Nose diameter:17.80mm
inducer:63.50mm
Exducer:88.25mm
Tapered tip exducer:92.27mm
Tip height :7.18mm
superback:5.30mm
Overall height:53.43mm
Bore size:7.48mm
Trailing Angle:60
Bore type:Threaded-M7x1.0LHT
Cutback:0.0
splitter height:23.65mm
sp height angle:-7.20
FIT for OE compressor housing
blades height:36.56mm
7+7 blades
forward rotation
Tapered tip angle:18 degree
4.High quality and competitive price.
5.Any questions please send email to me.
