| Model Number: | T04E |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 56.48/74.99mm | Type: | Turbochargers |
|---|
1. MODEL:T04E FORWARD

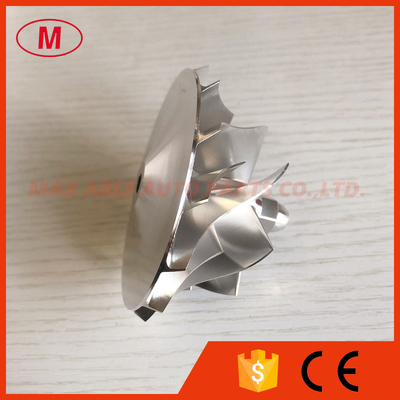

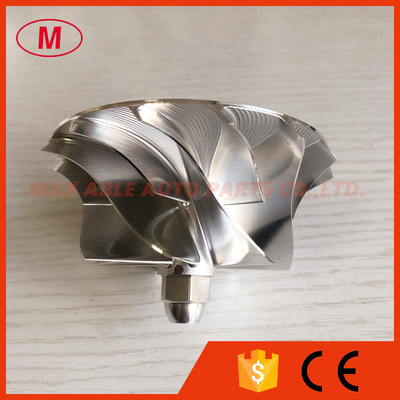

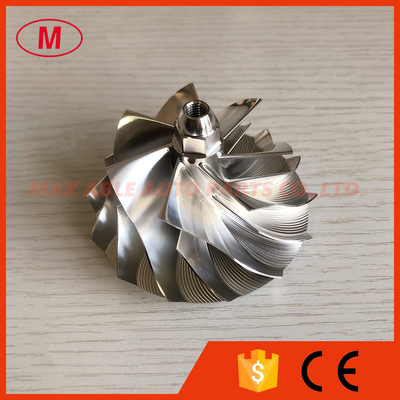

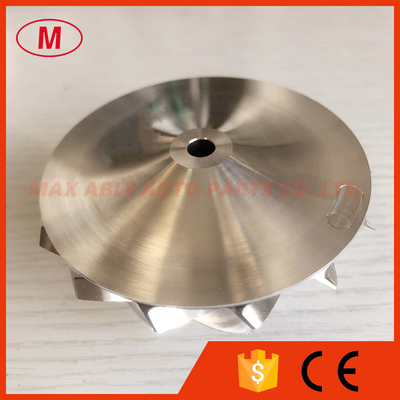

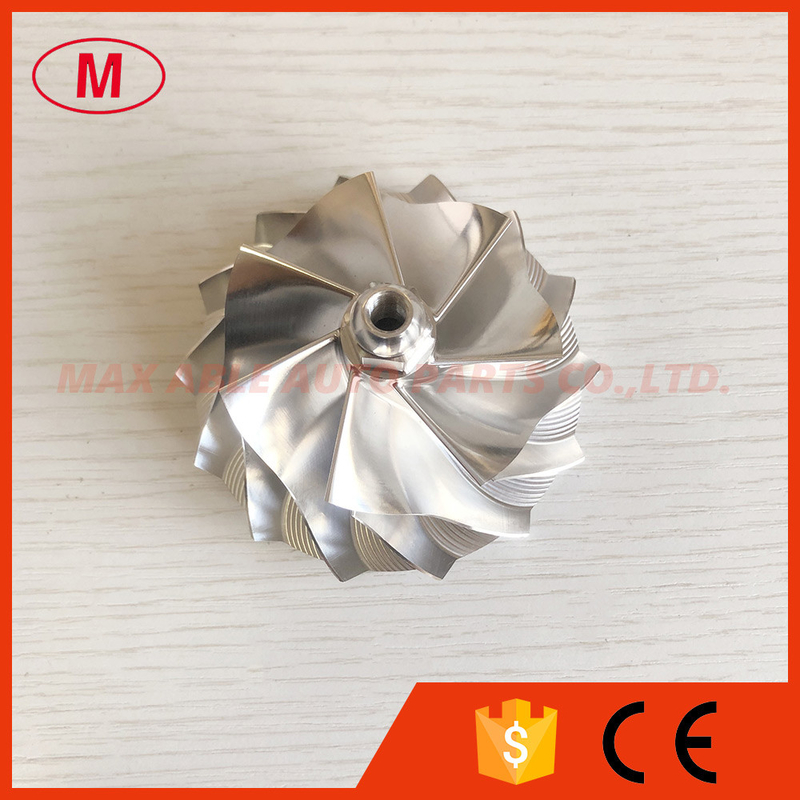

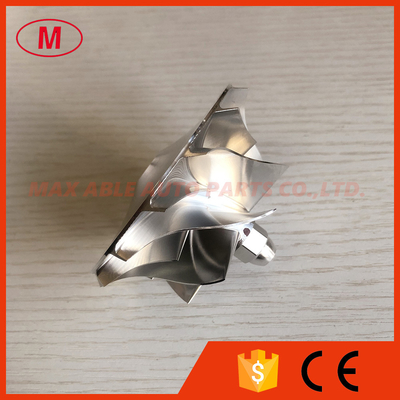

2.T04E 56.48/74.99mm 442476-0014 7+7 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 452092-0001/465225-0009/465355-0003/465629-0001/465633-0001/465637-0001/465653-0001/465780-0001/465907-0001/466229-0001/466290-0003
3.Size:
Nose diameter:15.29mm
inducer:56.48mm
Exduder:74.99mm
Tapered tip exducer:80.30mm
Tip height:5.60mm
Superback:4.96mm
Overall height:51.00mm
bore size :6.35mm
bore type:Threaded 1/4-28G-LHT
Trailing Angle:45
Cutback:0.0
SP Height angle:-5.80
Blades height:31.70mm
Splitter height:18.00mm
Tapered tip Angle:30 degree
7+7 blades
Forward rotation
Fit for OE compressor housing
Application:
452092-0001
465225-0009
465355-0003
465629-0001
465633-0001
465637-0001
465653-0001
465780-0001
465907-0001
466229-0001
466290-0003
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
