| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | HX60 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:HX60

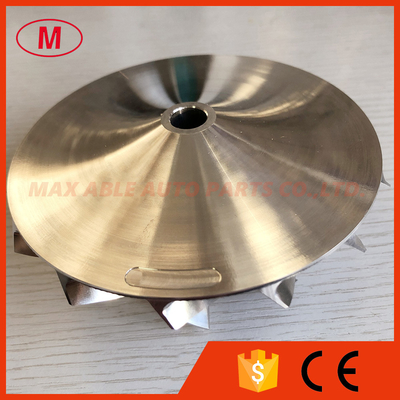

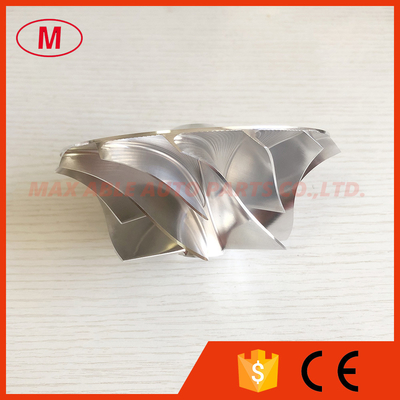

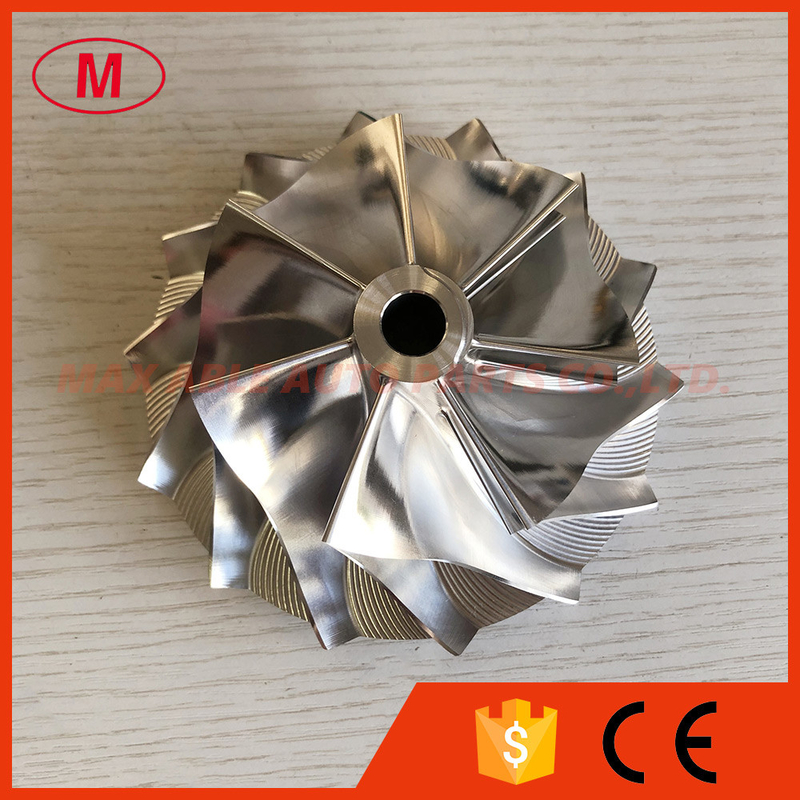

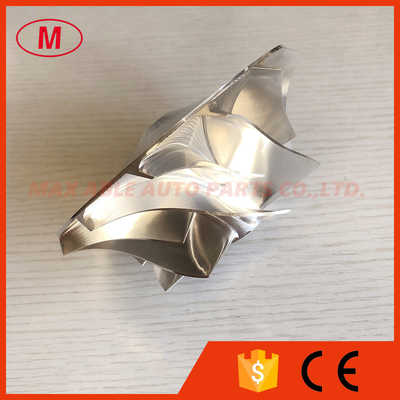

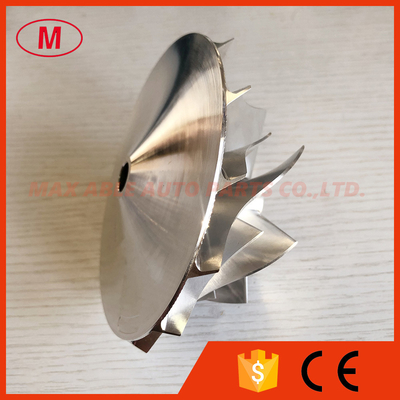

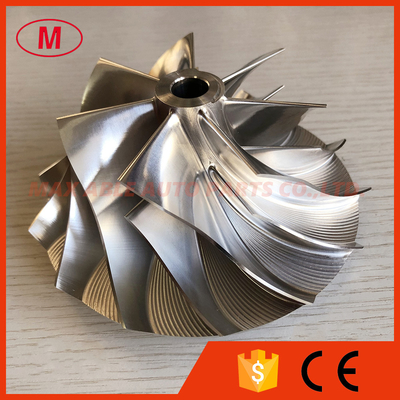

2. HX60 4040285 80.00/113.01mm 7+7 blades high performance turbo billet/milling/Aluminum 2618 compressor wheel for 4047148/4038499/4042879
3.Size:
Nose Diameter:20.83mm
inducer:80.00mm
Exducer:113.01mm
Tapered tip exducer:120.41mm
Tip height:7.41mm
Superback:9.27mm
Overall height:55.99mm
Bore size:11.12mm
Trailing angle:50
Cutback:1.0
Splitter height:29.85mm
SP height angle:-10.00
Blades height:44.47mm
7+7 BLADES
forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.We have many size.
All the compressor wheel have been balanced.
