| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |

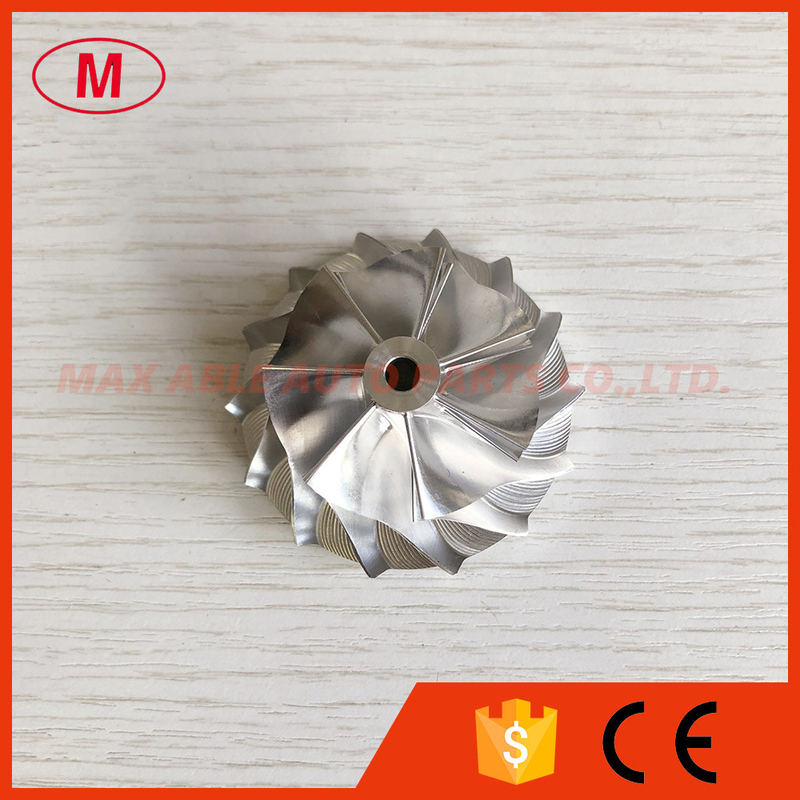

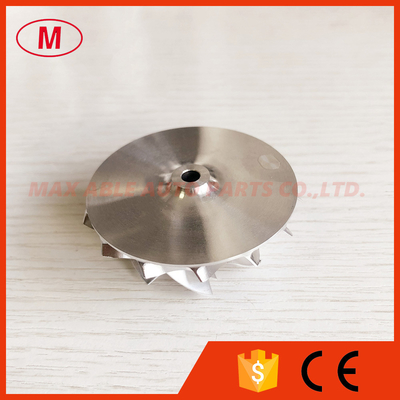

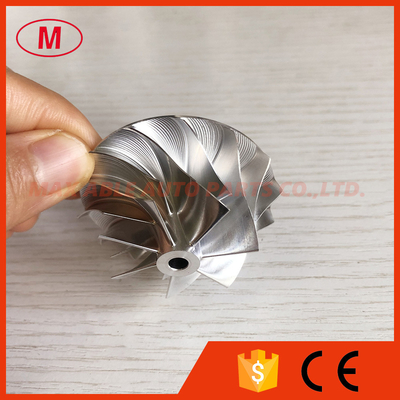

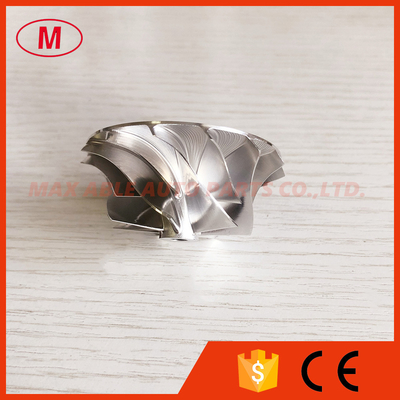

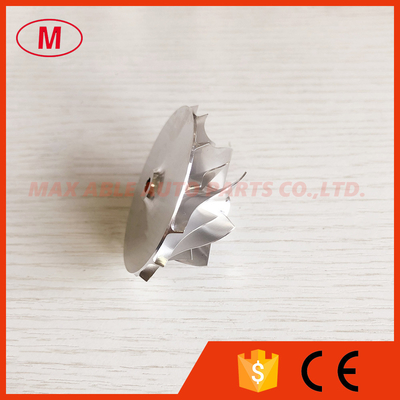

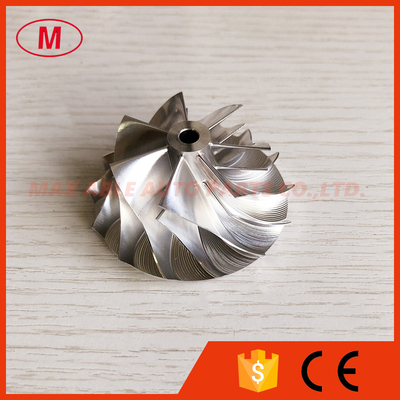

1.Model:K04 forward
3.Size:
Nose diamter:10.36mm
inducer:38.58mm
Exduder:52.00mm
Tapered tip exducer:55.39mm
Tip height:3.94mm
Superback:2.60mm
Overall height:25.70mm
bore size :4.61mm
Trailing angle:75
Cutback:4.5
SP height angle:-8.40
Blade height:21.40mm
Splitter height:14.65mm
It is custom size ,please check carefully before buying.
7+7 blades
Forward rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
