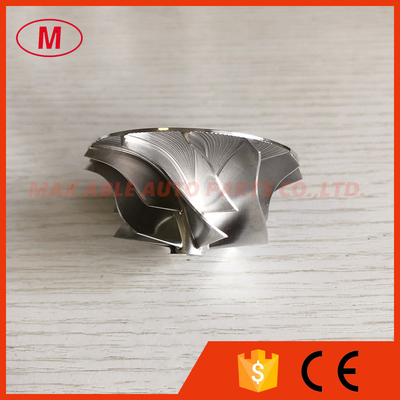

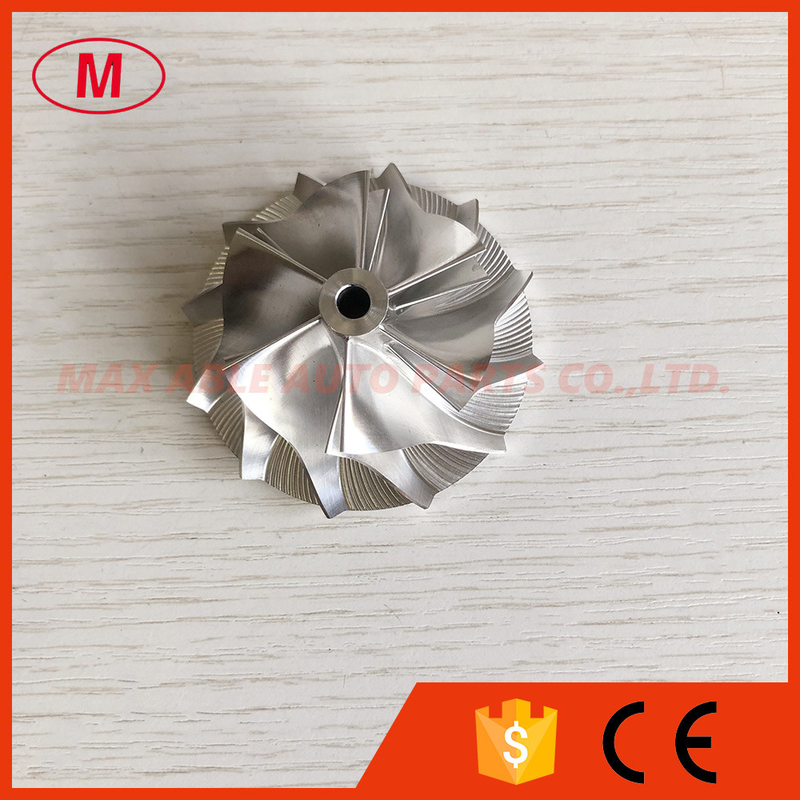

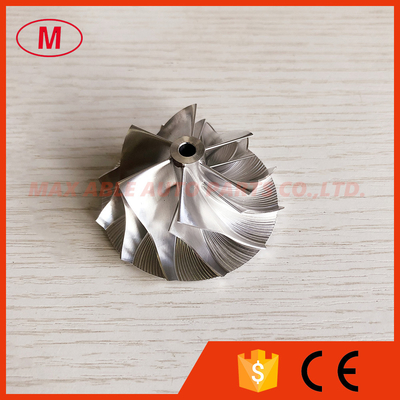

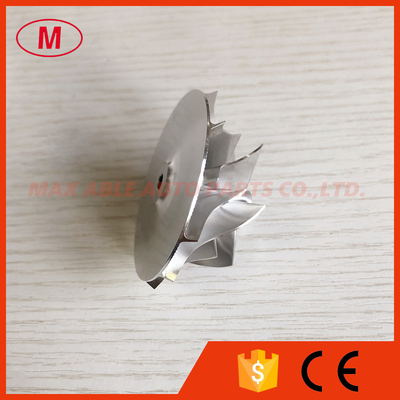

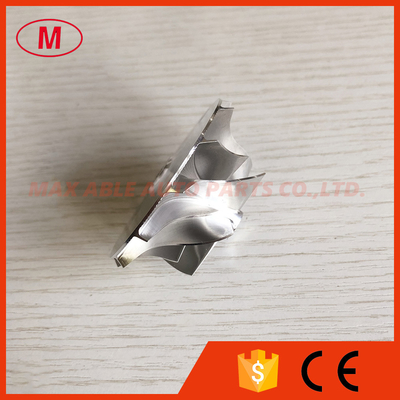

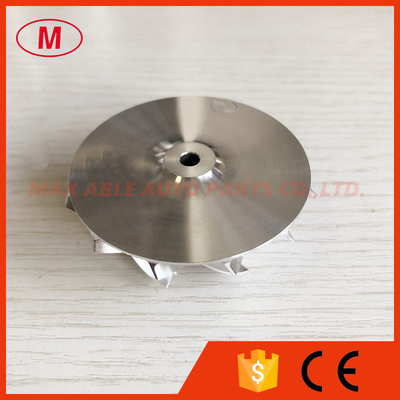

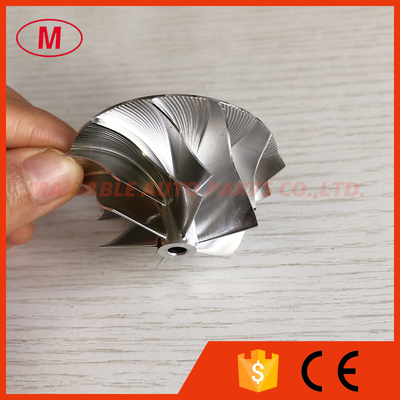

K04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel

K04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel

    • K04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel
    • K04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel
    • K04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel
    • K04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel
    • K04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel
    • K04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel
    • K04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel
    • K04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel

    Product Details:

    Place of Origin: CHINA
    Brand Name: NO
    Model Number: K04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description

    1. MODEL:K04 forward

    2.K04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel

    3.Size:

    Nose diameter:9.64mm

    inducer:41.20mm

    Exduder:56.08mm

    Tapered tip exducer:59.58mm

    Tip height:4.03mm

    Superback:1.80mm

    Overall height:27.70mm

    bore size :4.61mm

    Trailing Angle:60

    Cutback:8.0

    SP height angle:-2.50

    Blade height:24.20mm

    Splitter height:15.90mm

    6+6 blades

    Tapered tip Angle:30 degree

    Forward rotation

    It is for OE compressor housing

    4.High quality and competitive price.

    5.if you want more details, please send email to me.

    We can produce as your requirement.



    The more models we also have.

    K04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheelK04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheelK04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheelK04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheelK04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheelK04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel
