| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | K26 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:K26 forward

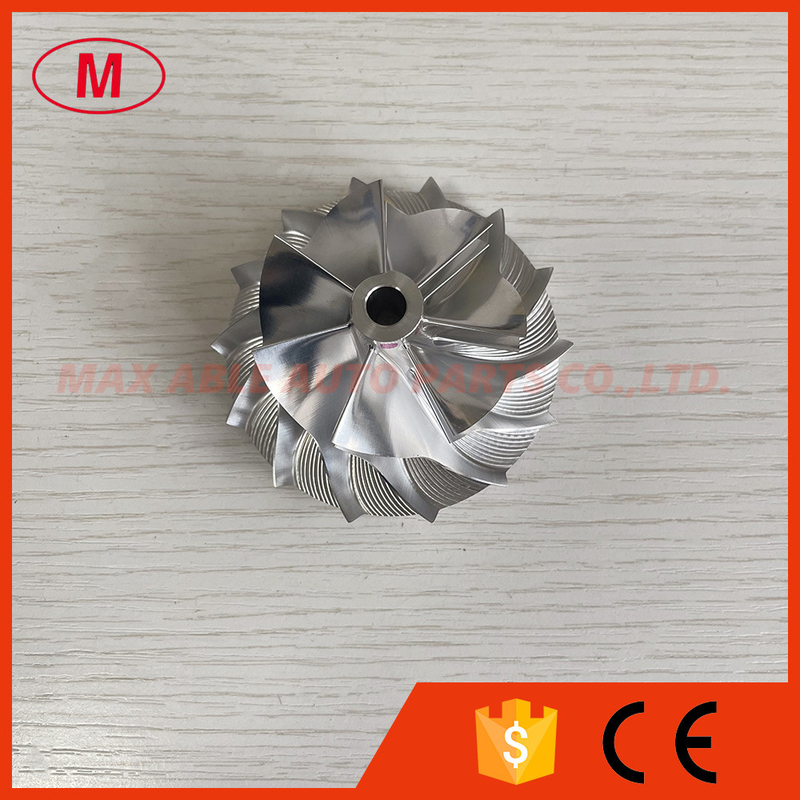

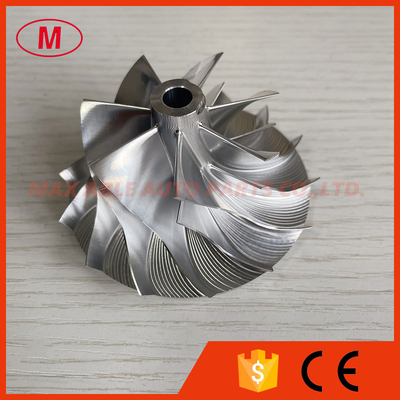

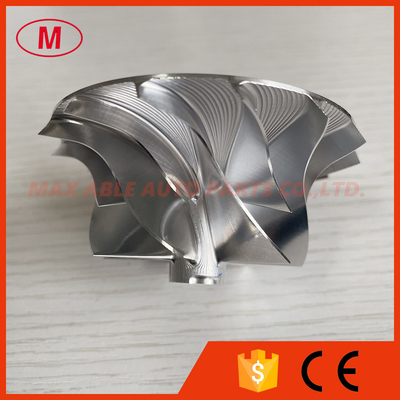

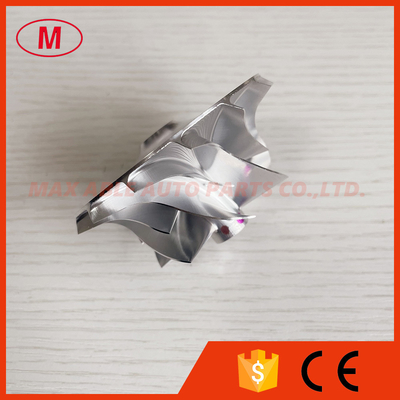

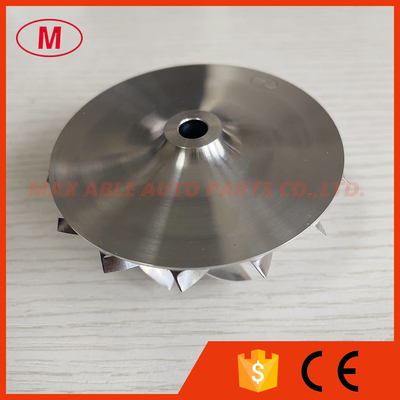

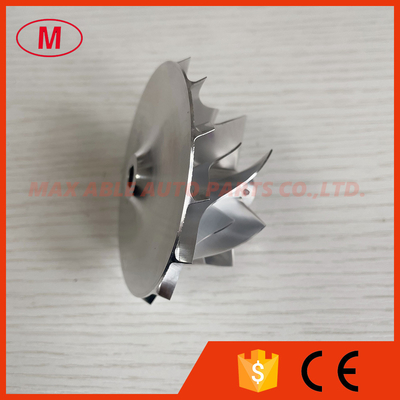

2.K26 50.33/71.00mm 7+7blades high performance milling/aluminum 2618/billet compressor wheel for 5326-970-0000 B-MW M57D30TOP Twin Turbo
3.Size:
Nose diameter:12.97mm
inducer:50.33mm
Exduder:71.00mm
Tapered tip exducer:75.71mm
Tip height:5.07mm
Superback:4.99mm
Overall height:39.83mm
bore size :7.02mm
bore type:through
Trailing Angle:65 degree
Cutback:0.00
Splitter height:19.80mm
SP height angle:-13.9 degree
Blade height:29.88mm
7+7 blades
Tapered tip Angle:30 degree
Forward rotation
It is for OE compressor housing.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
