1.Model:GT15-25 Forward

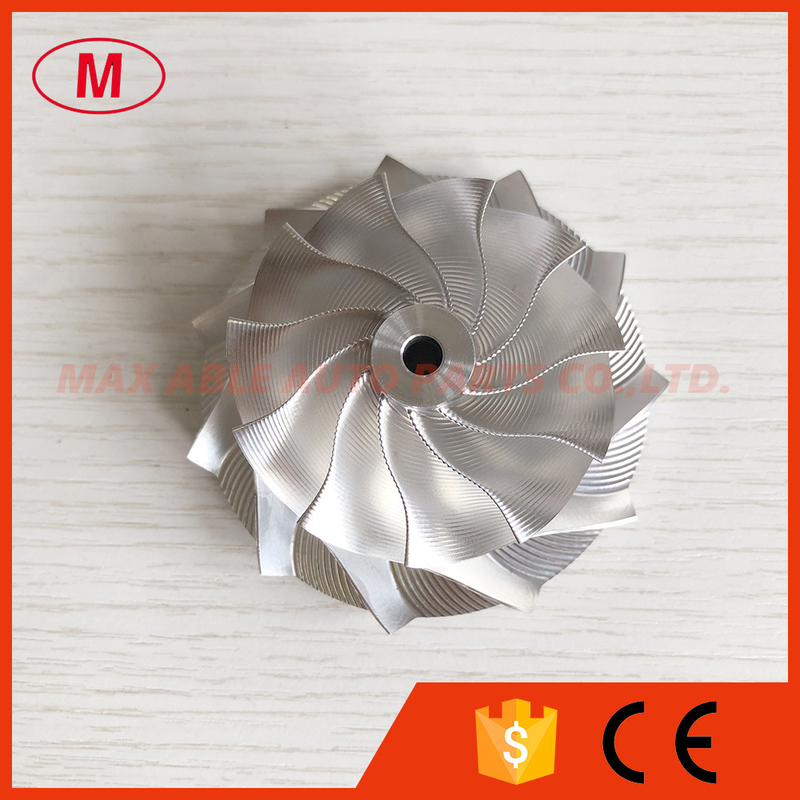

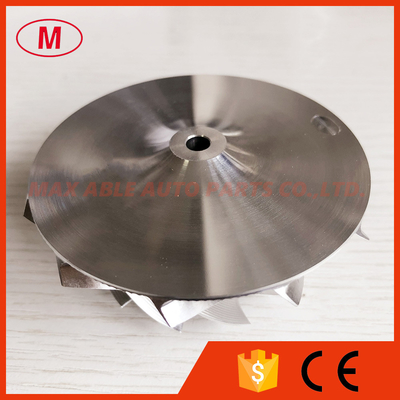

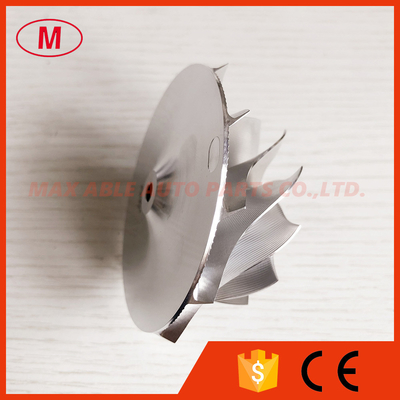

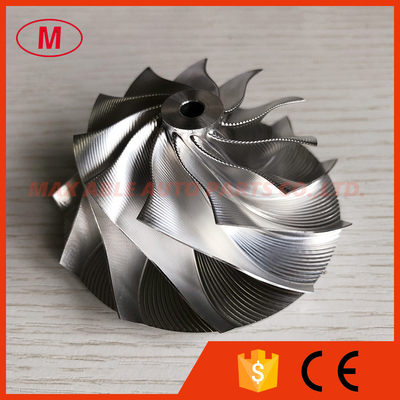

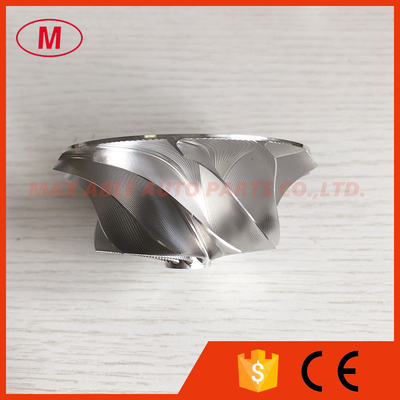

2. GT15-25 53.11/70.98mm 11+0 blades Point Milling, Snake Curve,Twisted Blade design, Performance Design turbo billet/aluminum 2618/milling turbocharger compressor wheel .
3.Size:
Nose diameter:13.22mm
inducer:53.11mm
Exduder:70.98mm
Tapered tip exducer:75.78mm
Tip height:5.16mm
Superback:3.79mm
Overall height:36.10mm
Bore size:5.08mm
Trailing angle:50
Cutback:8.0
SP Height angle:0.00
Blades height:26.70mm
Splitter height:0.00mm
11+0 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price.
5.We have many other size ,please send email to me !
ALL the compressor wheel have been balanced.
