Brand Name: | NO |
Model Number: | K16 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
1.Model:K16 forward

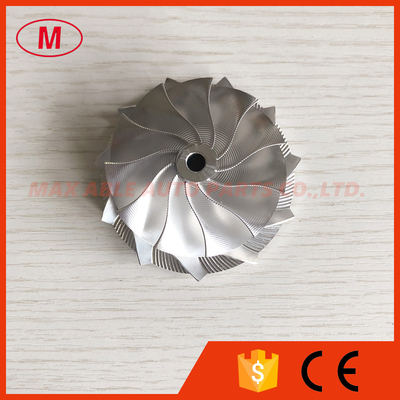

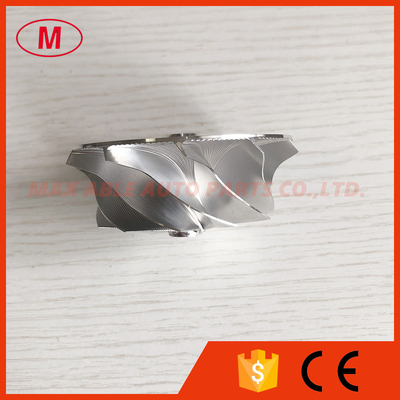

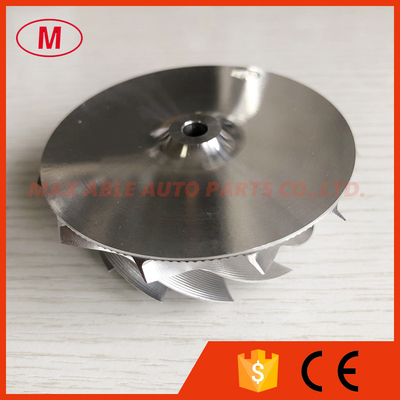

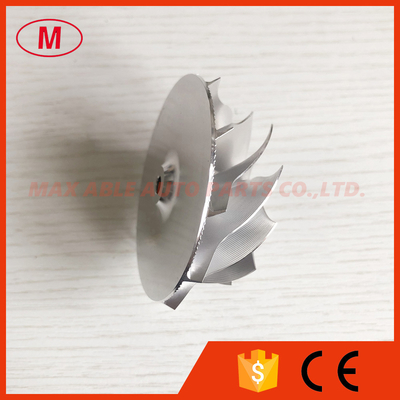

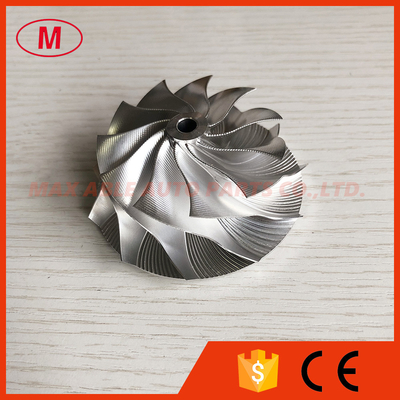

2. K16 54.70/67.00mm 11+0 Blades Point Milling, Snake Curve turbo aluminum 2618/milling/Billet compressor wheel
3.Size:
Nose diameter:11.50mm
Inducer:54.70mm
Exducer:67.00mm
Tapered tip exducer:71.32mm
Tip height:4.74mm
Superback:2.67mm
Overall height:31.06mm
Bore size:5.41mm
bore type:through
Trailing angle:60 degree
Cutback:8.0
SP height angle:0.0
Splitter height:0.00mm
Blade height:23.50mm
11+0 blades forward
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
All the compressor wheel have been balanced.
