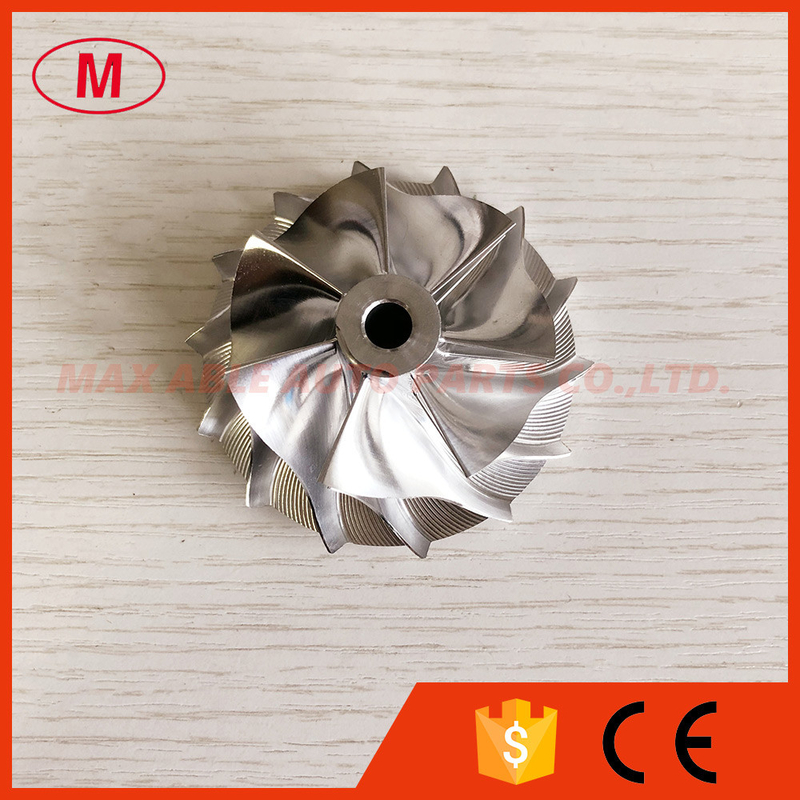

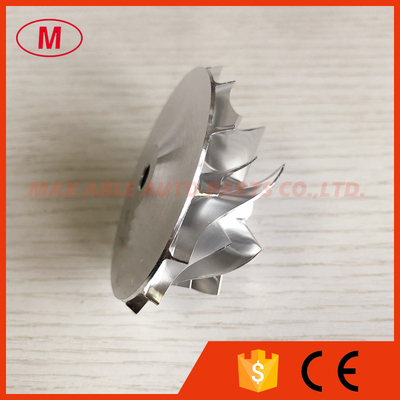

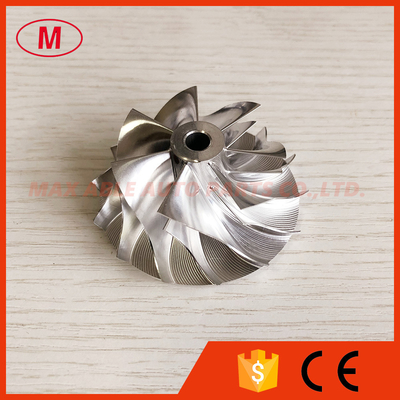

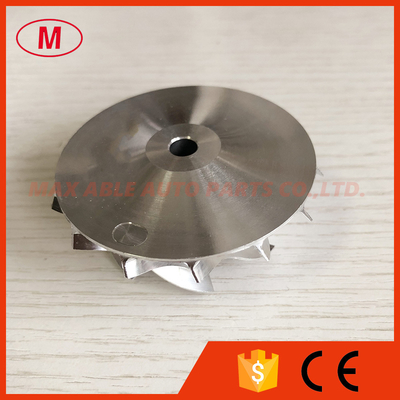

TD05H 16G small 46.48/60.00mm 7+7 blades 49178-43300 Turbo milling/Aluminum 2618/billet compressor wheel for 49178-02001

TD05H 16G small 46.48/60.00mm 7+7 blades 49178-43300 Turbo milling/Aluminum 2618/billet compressor wheel for 49178-02001

    • TD05H 16G small 46.48/60.00mm 7+7 blades 49178-43300 Turbo milling/Aluminum 2618/billet compressor wheel for 49178-02001
    • TD05H 16G small 46.48/60.00mm 7+7 blades 49178-43300 Turbo milling/Aluminum 2618/billet compressor wheel for 49178-02001
    • TD05H 16G small 46.48/60.00mm 7+7 blades 49178-43300 Turbo milling/Aluminum 2618/billet compressor wheel for 49178-02001
    • TD05H 16G small 46.48/60.00mm 7+7 blades 49178-43300 Turbo milling/Aluminum 2618/billet compressor wheel for 49178-02001
  • TD05H 16G small 46.48/60.00mm 7+7 blades 49178-43300 Turbo milling/Aluminum 2618/billet compressor wheel for 49178-02001

    Product Details:

    Brand Name: NO
    Model Number: TD05H

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:TD05H forward

    2.TD05H 16G small 46.48/60.00mm 7+7 blades 49178-43300 Turbo Billet/milling/Aluminum 2618 compressor wheel for 49178-02001, 49178-01460, 49178-04340, 49178-04400, 49178-04500, 49178-04510, 49178-05200,49178-06200, 49178-06290, 49178-06300, 49178-06310, 49178-06380, 49178-06390

    3.Size:

    Nose diameter:14.35mm

    Inducer:46.48mm

    Exducer:60.00mm

    Tapered tip exducer:64.60mm

    Tip height:4.99mm

    Superback:2.80mm

    Overall height:27.61mm

    bore size :6.50mm

    bore type:through

    Trailing angle:65 degree

    Cutback:0.0mm

    Blades height:22.93mm

    splitter height:15.60mm

    Sp height angle:-5.40

    7+7 Blades

    forward rotation

    Tapered tip angle:30 degree

    It is custom size ,please check carefully before buying.

    4.High quality and competitive price.

    5.if you want more details, please send email to me.

    All the billet wheels have been balanced.
