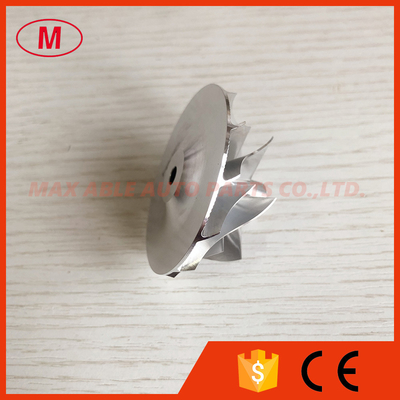

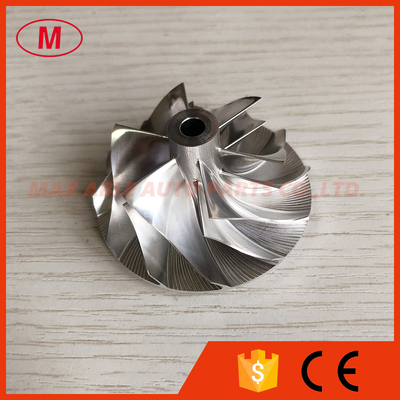

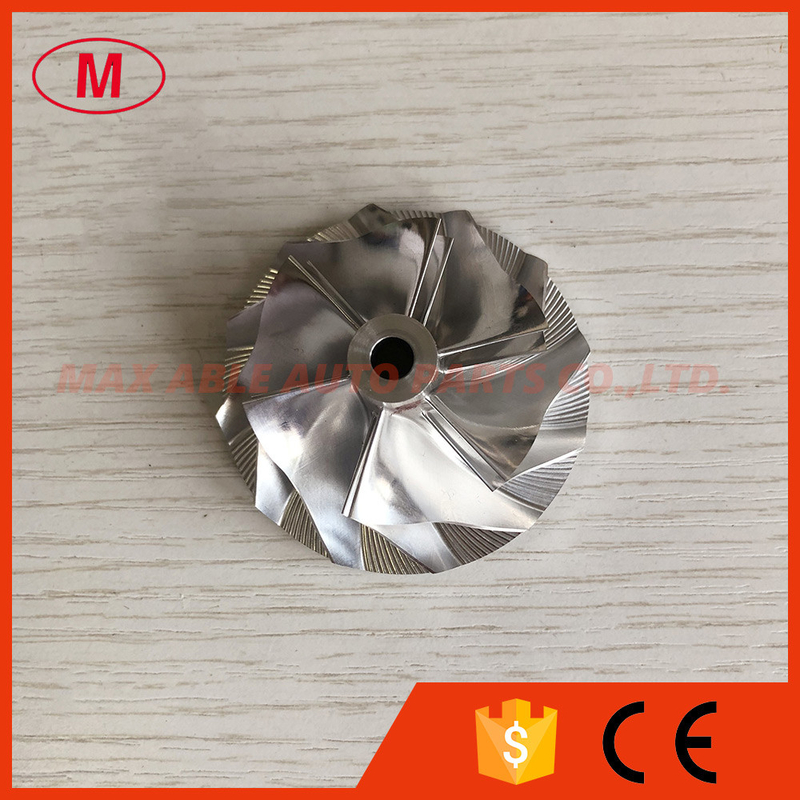

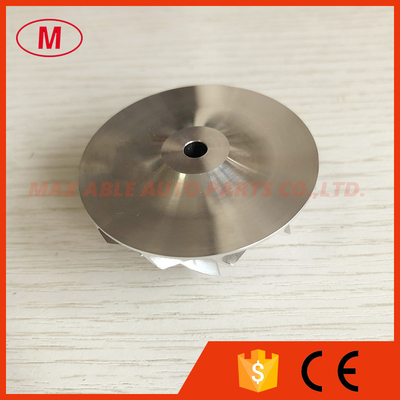

GT15-25 436131-0002 38.58/52.02mm 6+6 blades turbocharger milling/billet compressor wheel for 452204/454061/454135/70595

Contact Now

Detailed Product Description

1.Model:GT15-25 Forward

2.GT15-25 436131-0002 38.58/52.02mm 6+6 blades turbocharger billet/milling/aluminum 2618 compressor wheel for 452204/454061/454135/70595

3.Size:

Nose diameter:10.54mm

Inducer:38.58mm

Exducer:52.02mm

Tip height:4.86mm

Superback:2.37mm

Overall height:26.04mm

Bore size:5.08mm

bore type:through

Trailing angle:50 degree

Cutback:0.0

SP Height angle:1.00

Blade height:18.77mm

Splitter height:12.50mm

6+6 blades

Forward rotation

Tapered tip angle:0 degree

It is custom size ,please check carefully before buying.

3.High quality and competitive price.

4.if you want more details, please send email to me.

We can produce as your requirement.minimun order 5pcs

All the compressor wheels have been balanced.

The more models we also have.
