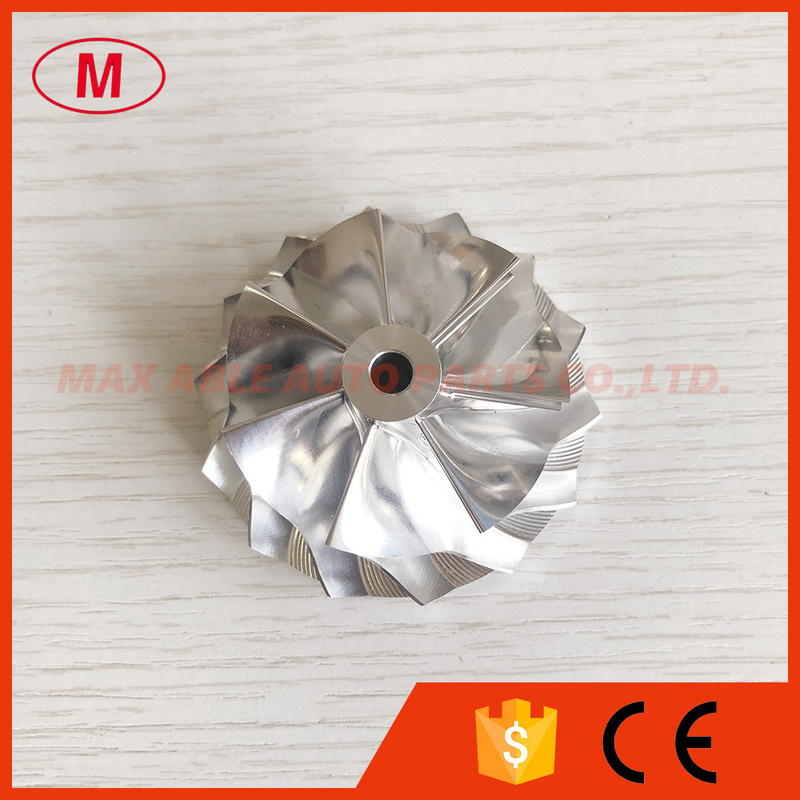

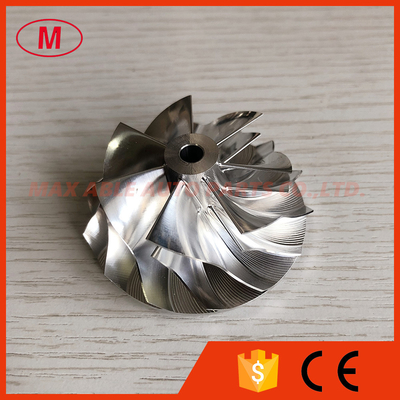

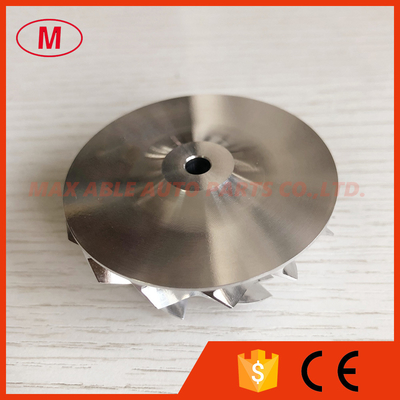

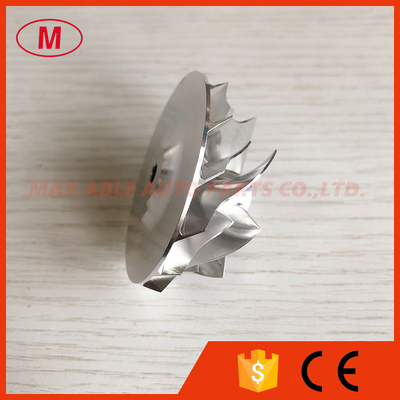

TD04 42.55/53.19mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel

TD04 42.55/53.19mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel

    • TD04 42.55/53.19mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel
    • TD04 42.55/53.19mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel
    • TD04 42.55/53.19mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel
    • TD04 42.55/53.19mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel
    • TD04 42.55/53.19mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: no
    Certification: ISO
    Model Number: TD04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: Neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, ,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description



    1.Model:TD04 Forward

    2.TD04 42.55/53.19mm 7+7 blades turbo billet/milling/aluminum 2618 compressor wheel

    3.Size:

    Nose diameter:11.73mm

    Inducer:42.55mm

    Exducer:53.19mm
    Tapered tip exducer:55.30mm
    Tip height:5.47mm
    Superback:1.90mm
    Overall height:24.53mm
    Bore size:5.00mm
    Trailing angle:45
    Bore type:Through
    Cutback:2.2
    SP Height angle:-6.40
    Blade height:20.56mm
    Splitter height:13.40mm
    7+7 blades
    Forward rotation
    Tapered tip angle:13.6 degree
    It is custom size,please check carefully before buying
    4.High quality ,competitive price and good service.
    5.We can also produce as your requirement.
    All the compressor wheels have been balanced.
    6.If you want more details, please send email to me or talk to me online.
    We will try our best to meet your needs.



    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    TD04 42.55/53.19mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel
    TD04 42.55/53.19mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheelTD04 42.55/53.19mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheelTD04 42.55/53.19mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel
