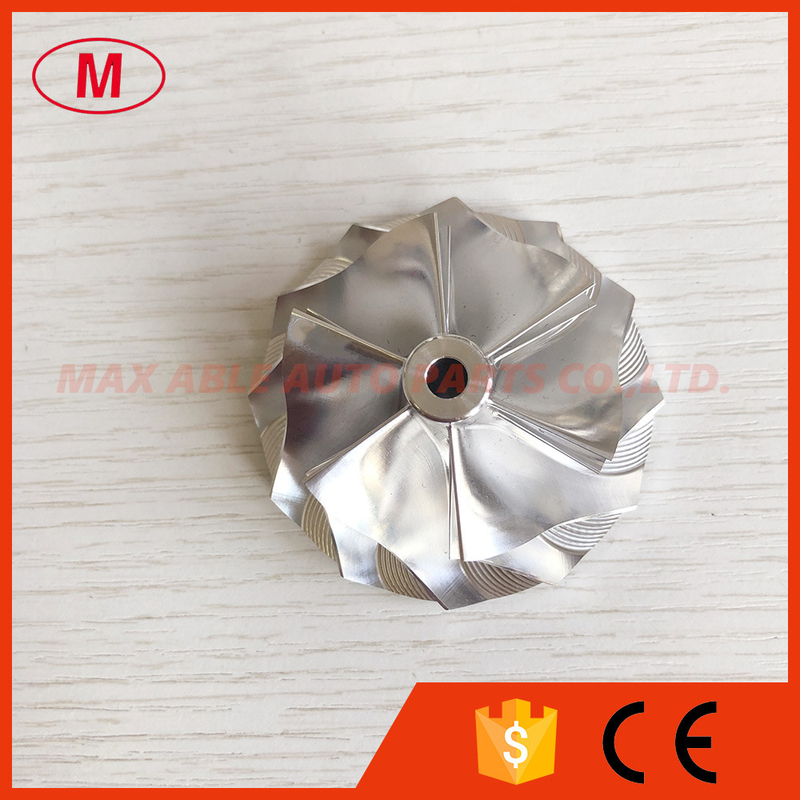

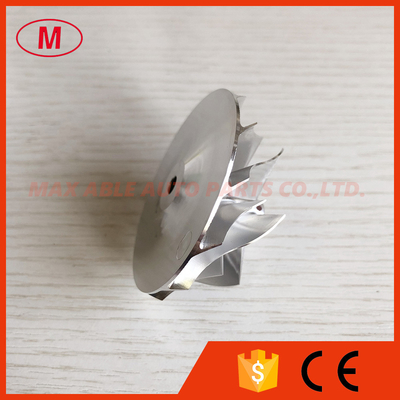

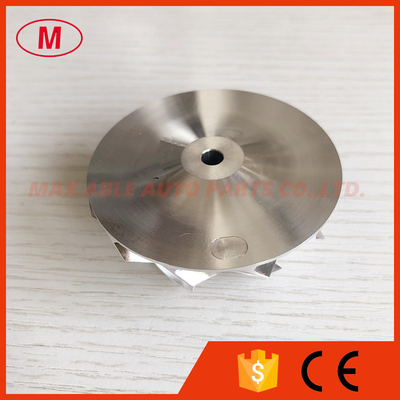

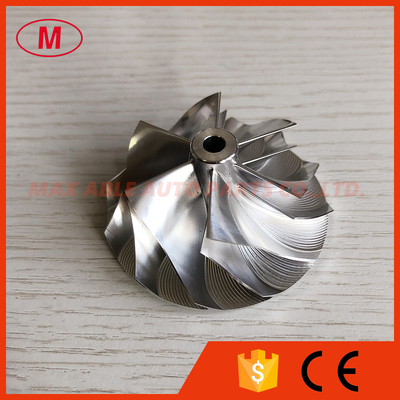

TD04HL 43.75/57.25mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel

TD04HL 43.75/57.25mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel

    • TD04HL 43.75/57.25mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD04HL 43.75/57.25mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD04HL 43.75/57.25mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD04HL 43.75/57.25mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD04HL 43.75/57.25mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: TD04HL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Size: 43.75/57.25MM Type: Turbochargers

    1. MODEL:TD04HL forward
    2.TD04HL 43.75/57.25mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:11.00mm
    Inducer:43.75mm
    exducer:57.25mm
    Tapered tip exducer:58.44mm
    Tip height:5.25mm
    Superback:1.90mm
    bore size :5.00mm
    Overall height:26.67mm
    Trailing angle:38
    Cutback:5.0
    SP height angle:-1.00
    Blade height:22.00mm
    Splitter height:14.70mm
    6+6 blades forward
    Tapered tip angle:18 degree
    It is custom size ,please check carefully before buying.
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
