| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 54.06/71.40mm | Type: | Turbochargers |
|---|
1.Model:RHF5 forward

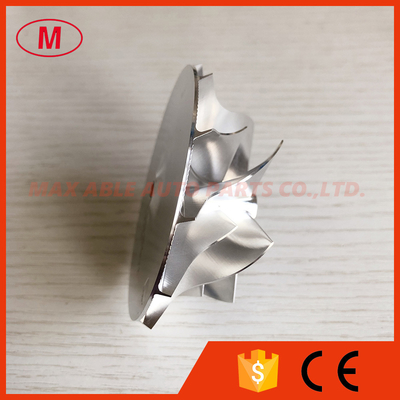

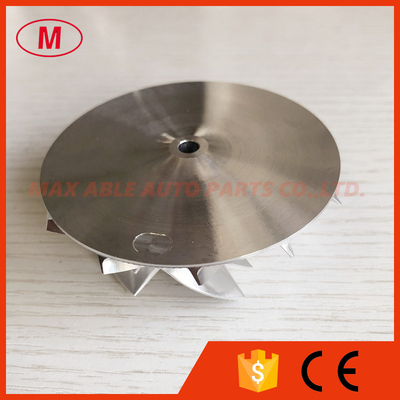

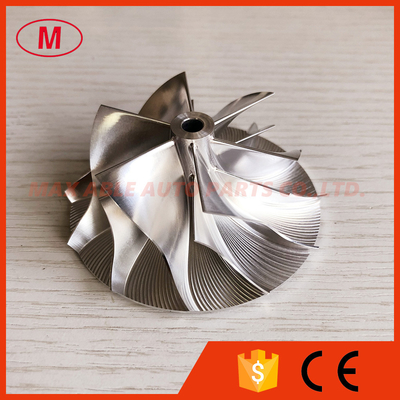

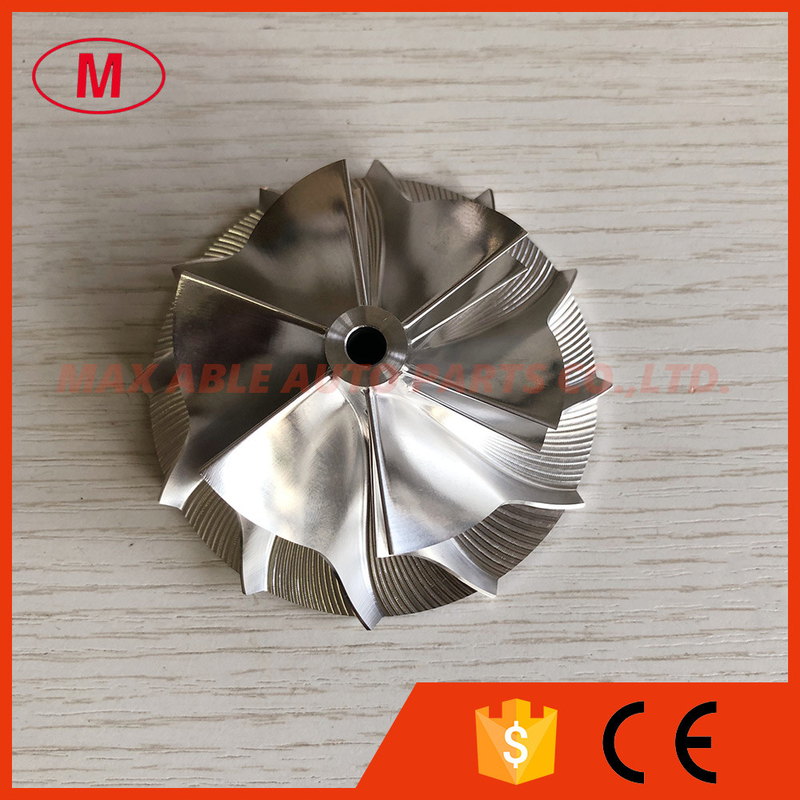

2. RHF5 54.06/71.40mm 6+6 Blades high performance billet/aluminum 2618 turbo compressor wheel
3.Size:
Nose diameter:11.06mm
Inducer:54.06mm
Exducer:71.40mm
Tapered tip exducer :74.97mm
Tip height:4.09mm
Superback:1.53mm
Overall height:30.00mm
Bore:5.10mm
bore type:through
Trailing angle:60
Cutback:0.0
SP height angle:0.00
Blades height:26.70mm
Splitter height:17.00mm
6+6 blades
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price.
5.if you want to know more details ,please send email to me !
We have more model you want.
All the billet compressor wheels have been balanced.
