Model Number: | RHF5 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
1. MODEL:RHF5 forward

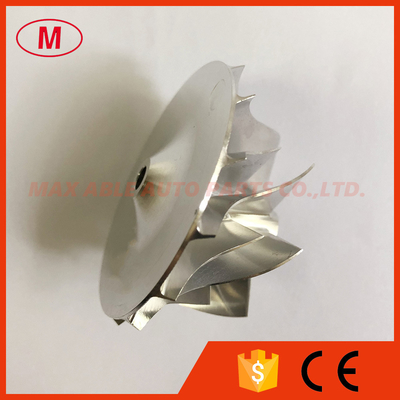

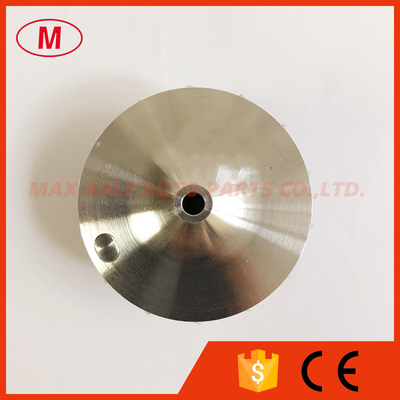

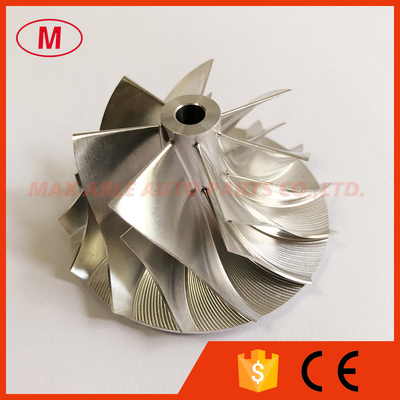

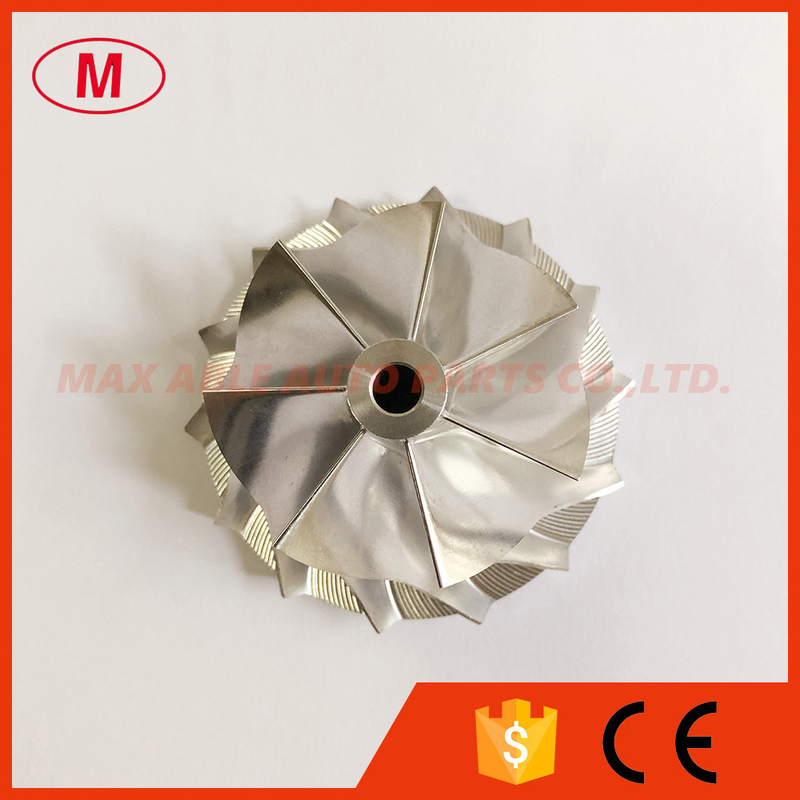

2.RHF5 42.00/54.80mm 7+7 blades high performance turbo turbocharger aluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:10.59mm
Inducer:42.00mm
exducer:54.80mm
Tapered tip exducer:57.91mm
Tip height :3.69mm
superback:3.74mm
Overall height:31.22mm
Bore size:5.11mm
Trailing Angle:55
Cutback:3.0
SP height Angle:-4.60
Blades height:25.13mm
Splitter Height:15.70mm
7+7 blades
forward rotation
Tapered tip Angle: 30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
We can produce as your requirement.
