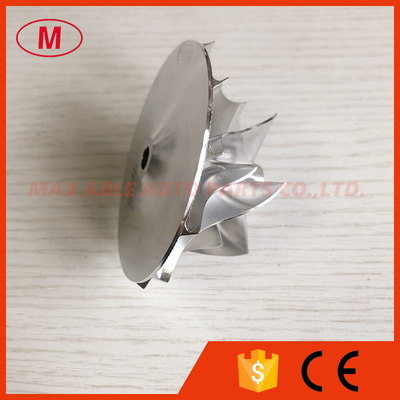

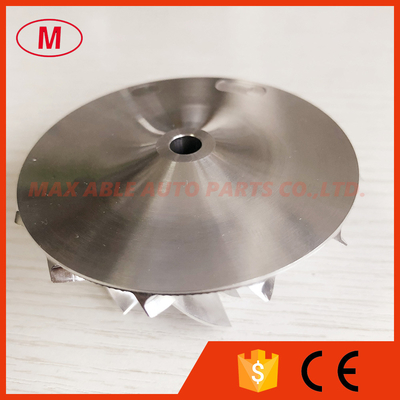

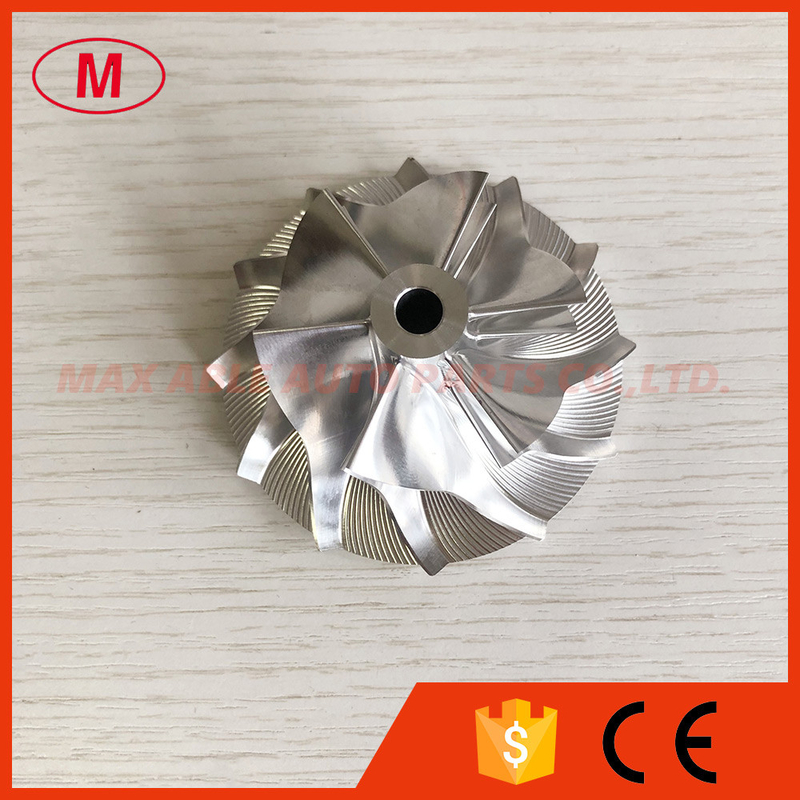

TD05H 155G6 47.05/68.01mm 6+6 blades 49378-01642/EVO X high performance HIGH blade Turbo Billet/milling compressor wheel

TD05H 155G6 47.05/68.01mm 6+6 blades 49378-01642/EVO X high performance HIGH blade Turbo Billet/milling compressor wheel

    • TD05H 155G6 47.05/68.01mm 6+6 blades 49378-01642/EVO X high performance HIGH blade Turbo Billet/milling compressor wheel
    • TD05H 155G6 47.05/68.01mm 6+6 blades 49378-01642/EVO X high performance HIGH blade Turbo Billet/milling compressor wheel
    • TD05H 155G6 47.05/68.01mm 6+6 blades 49378-01642/EVO X high performance HIGH blade Turbo Billet/milling compressor wheel
    • TD05H 155G6 47.05/68.01mm 6+6 blades 49378-01642/EVO X high performance HIGH blade Turbo Billet/milling compressor wheel
    • TD05H 155G6 47.05/68.01mm 6+6 blades 49378-01642/EVO X high performance HIGH blade Turbo Billet/milling compressor wheel

    Product Details:

    Model Number: TD05H

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:TD05H forward
    2. TD05H 155G6 47.05/68.01mm 6+6 blades 49378-01642/EVO X high performance HIGH blade Turbo Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:13.51mm
    Inducer:47.05mm
    exducer:68.01mm
    Tapered tip exducer:71.83mm
    Tip height:4.31mm
    Superback:2.90mm
    bore size :6.50
    Overal height:35.00mm
    Cutback:0.0
    Trailing angle:55
    SP height angle:-8.60
    Blade height:28.90mm
    Splitter height:19.75mm
    6+6 blades forward
    it is for OE compressor housing
    Tapered tip angle:30 degree
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
