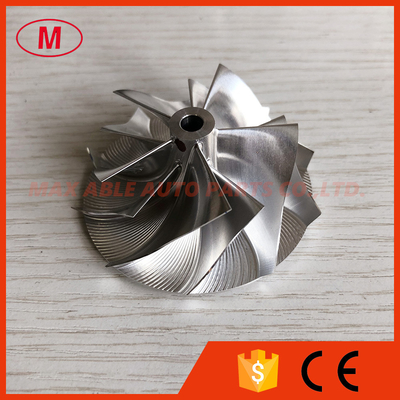

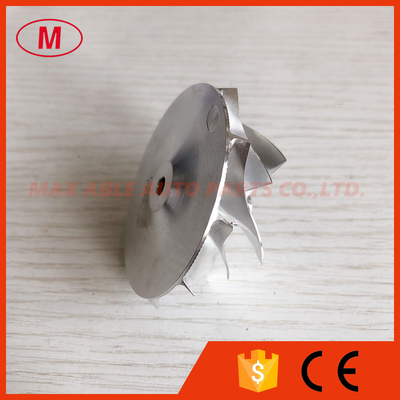

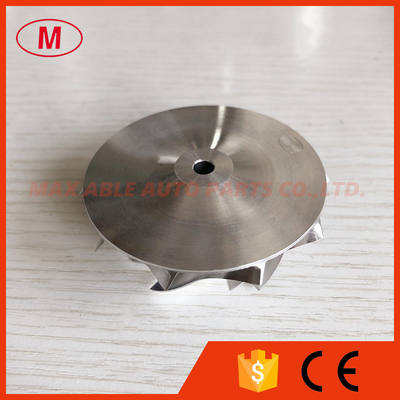

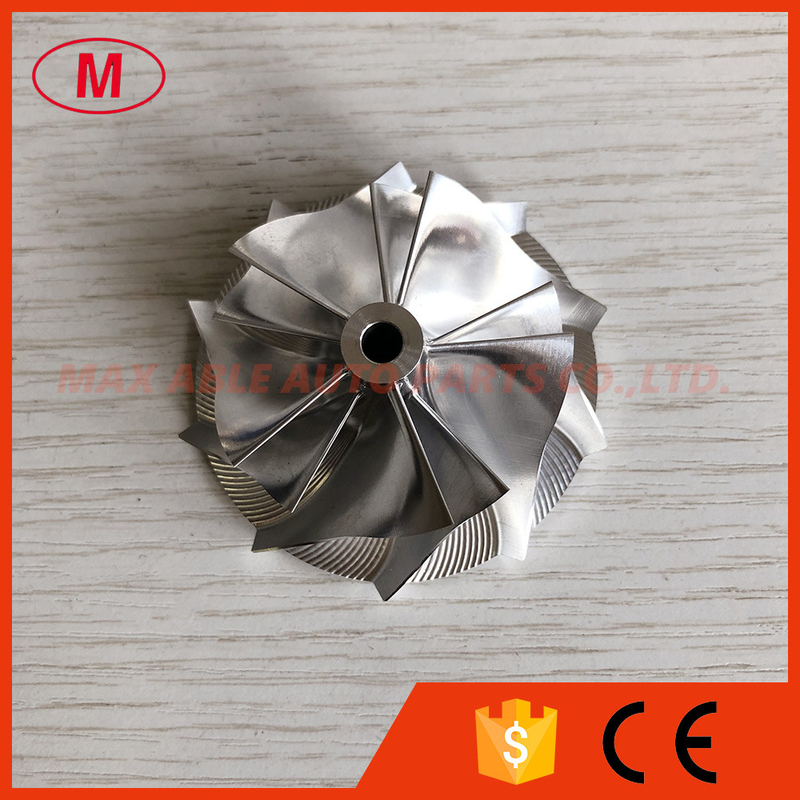

TD04HL 19T reverse 46.02/58.00mm 5+5 blades 49189-X BILLET Turbocharger Billet/milling/aluminum 2618 compressor wheel

TD04HL 19T reverse 46.02/58.00mm 5+5 blades 49189-X BILLET Turbocharger Billet/milling/aluminum 2618 compressor wheel

    • TD04HL 19T reverse 46.02/58.00mm 5+5 blades 49189-X BILLET Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD04HL 19T reverse 46.02/58.00mm 5+5 blades 49189-X BILLET Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD04HL 19T reverse 46.02/58.00mm 5+5 blades 49189-X BILLET Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD04HL 19T reverse 46.02/58.00mm 5+5 blades 49189-X BILLET Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD04HL 19T reverse 46.02/58.00mm 5+5 blades 49189-X BILLET Turbocharger Billet/milling/aluminum 2618 compressor wheel

    Product Details:

    Model Number: TD04HL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:TD04HL 19T reverse
    2.TD04HL 19T reverse 46.02/58.00mm 5+5 blades 49189-X BILLET Turbocharger Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Inducer:46.02mm
    exducer:58.00mm
    Nose diameter:10.05mm
    Tapered tip exducer:62.58mm
    Tip height:4.97mm
    Superback:1.90mm
    Overall height:26.13mm
    bore size :5.00mm
    Trailing angle:60
    Cutback:0.0
    SP height angle:-4.50
    Blade height:22.40mm
    Splitter height:17.35mm
    5+5 blades
    reverse rotation
    Tapered tip angle:30 degree
    It is for OE compressor housing
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
    We can produce as your requirement.
