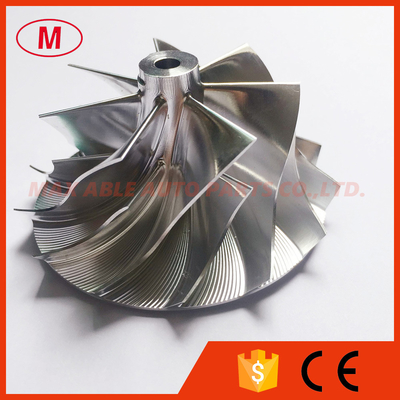

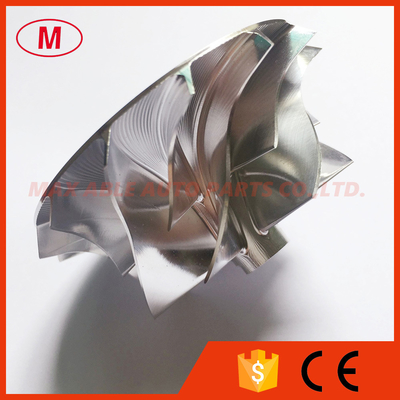

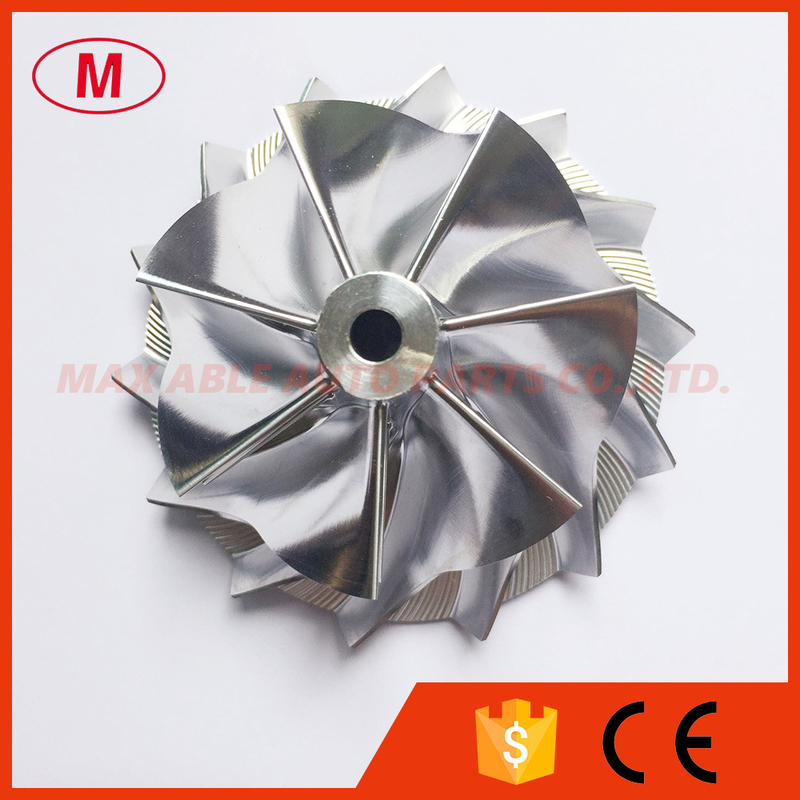

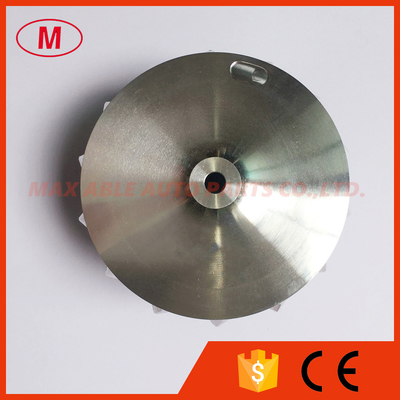

K16 reverse 7+7 blades 54.64/71.00mm Turbocharger Billet/milling/aluminum 2618 compressor wheel

K16 reverse 7+7 blades 54.64/71.00mm Turbocharger Billet/milling/aluminum 2618 compressor wheel

    • K16 reverse 7+7 blades 54.64/71.00mm Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • K16 reverse 7+7 blades 54.64/71.00mm Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • K16 reverse 7+7 blades 54.64/71.00mm Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • K16 reverse 7+7 blades 54.64/71.00mm Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • K16 reverse 7+7 blades 54.64/71.00mm Turbocharger Billet/milling/aluminum 2618 compressor wheel

    Product Details:

    Model Number: K16

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:K16 Reverse
    2.K16 reverse 7+7 blades 54.64/71.00mm Turbocharger Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:12.97mm
    Inducer:54.64mm
    exducer:71.00mm
    Tapered tip exducer:76.96mm
    Tip height:6.16mm
    Superback:2.67mm
    bore size :5.41mm
    Overall height:37.50mm
    Cutback:0.0
    ​Trailing Angle:60
    SP height nagle:-10.00
    Blade height:29.88mm
    Splitter height:19.00mm
    7+7 blades reverse
    it is Customs size,please check carefully before buying.
    Tapered tip Angle:30 degree
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
