Max Able Auto Parts Co.,Ltd.
Customer Satisfy is the eternal pursue of corporation.
Customer Satisfy is the eternal pursue of corporation.
 |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | S400 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:S400 forward

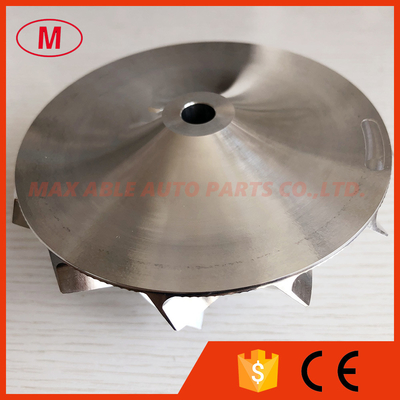

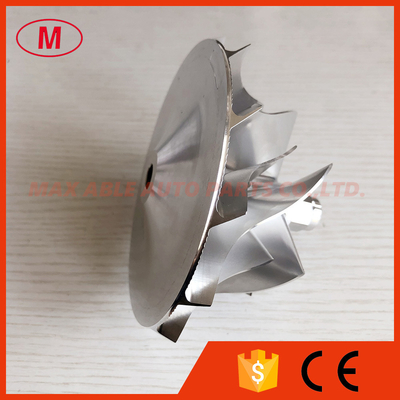

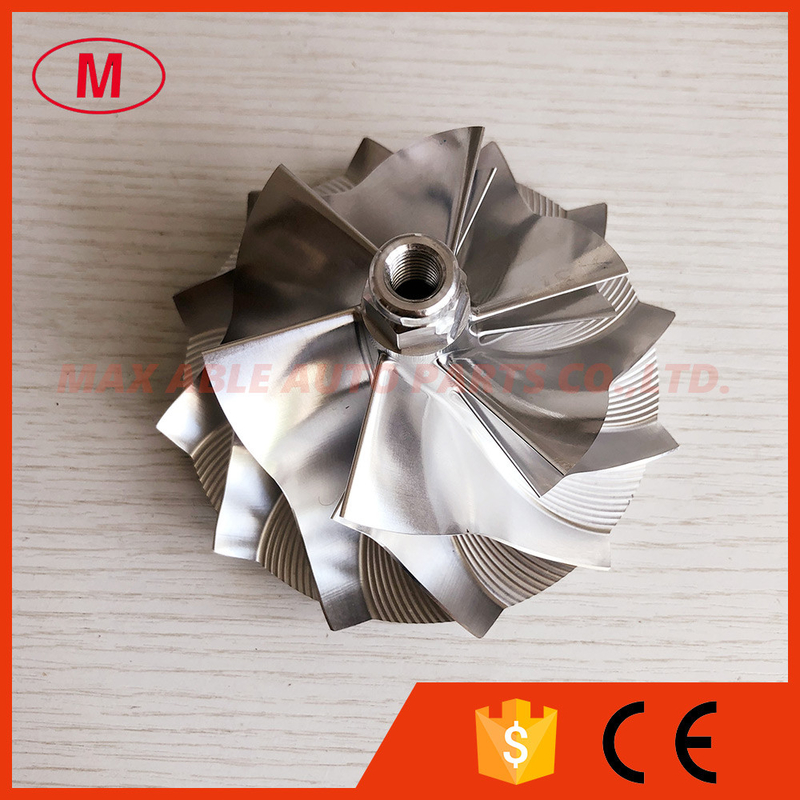

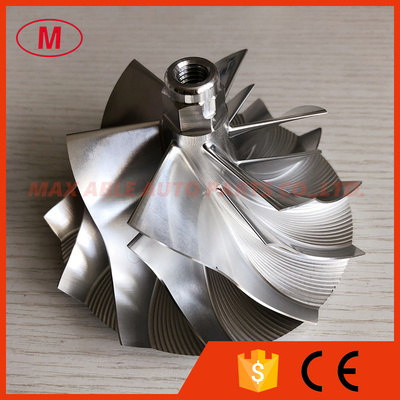

2.S400 174513 80.30/111.10mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel for racing
3.Size:
Nose diameter:19.83mm
inducer:80.30mm
Exduder:111.10mm
Tapered tip exducer:120.44mm
Tip height:9.09mm
Superback:7.55mm
Overall height:75.40mm
bore size :10.00mm
Trailing Angle:55
Bore type:Threaded-M10x1.5LHT
Cutback:0.00
SP height angle:-9.80
Sp height :34.00mm
Blade height:48.33mm
6+6 blades
Tapered tip Angle:30 degree
Forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
