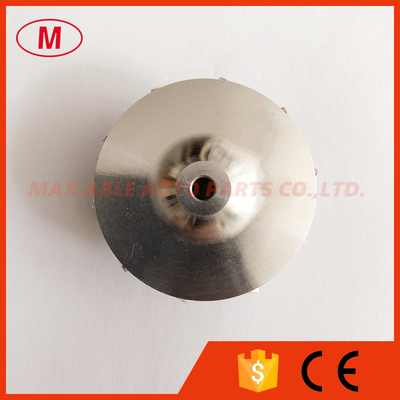

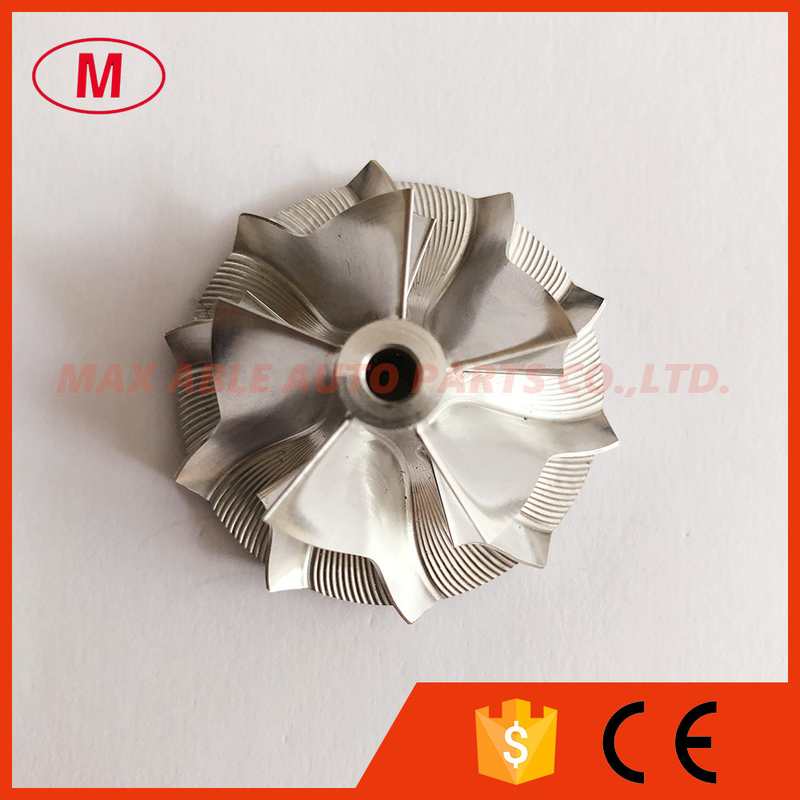

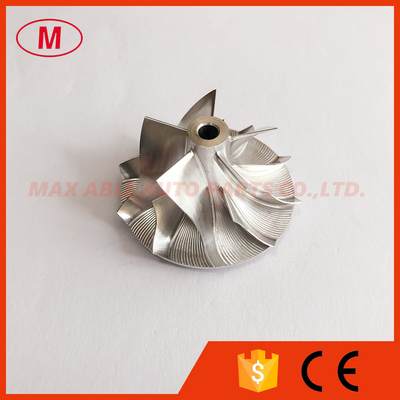

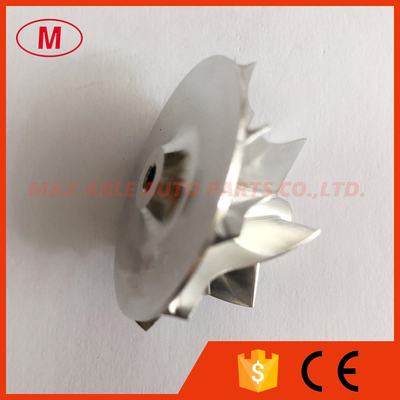

KP35 5+5 blades 29.60/41.00mm high performance turbo Billet/milling/aluminum 2618 compressor wheel

KP35 5+5 blades 29.60/41.00mm high performance turbo Billet/milling/aluminum 2618 compressor wheel

    • KP35 5+5 blades 29.60/41.00mm high performance turbo Billet/milling/aluminum 2618 compressor wheel
    • KP35 5+5 blades 29.60/41.00mm high performance turbo Billet/milling/aluminum 2618 compressor wheel
    • KP35 5+5 blades 29.60/41.00mm high performance turbo Billet/milling/aluminum 2618 compressor wheel
    • KP35 5+5 blades 29.60/41.00mm high performance turbo Billet/milling/aluminum 2618 compressor wheel
    • KP35 5+5 blades 29.60/41.00mm high performance turbo Billet/milling/aluminum 2618 compressor wheel

    Product Details:

    Model Number: KP35

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: , T/T, Western Union, MoneyGram
    Supply Ability: 1000PCS /MONTHS
    Contact Now
    Detailed Product Description

    1. MODEL:KP35 forward
    2. KP35 29.60/41.00mm 5+5blades high performance turbo Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:8.50mm
    Inducer:29.60mm
    exducer:41.00mm
    Tapered tio exducer:43.79mm
    Tip height:3.27mm
    Superback:2.81mm
    bore size :4.10mm
    Overall height:23.66mm
    Cutback:0.0
    Trailing Angle:45
    SP height angle:-5.00
    Blade height:18.60mm
    Splitter height:9.40mm
    5+5 blades forward rotation
    It is for OE compressor housing
    Tapered tip Angle:30 degree

    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
