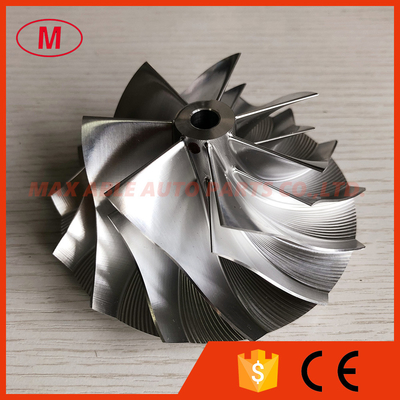

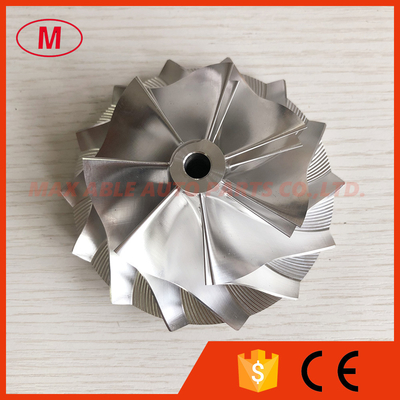

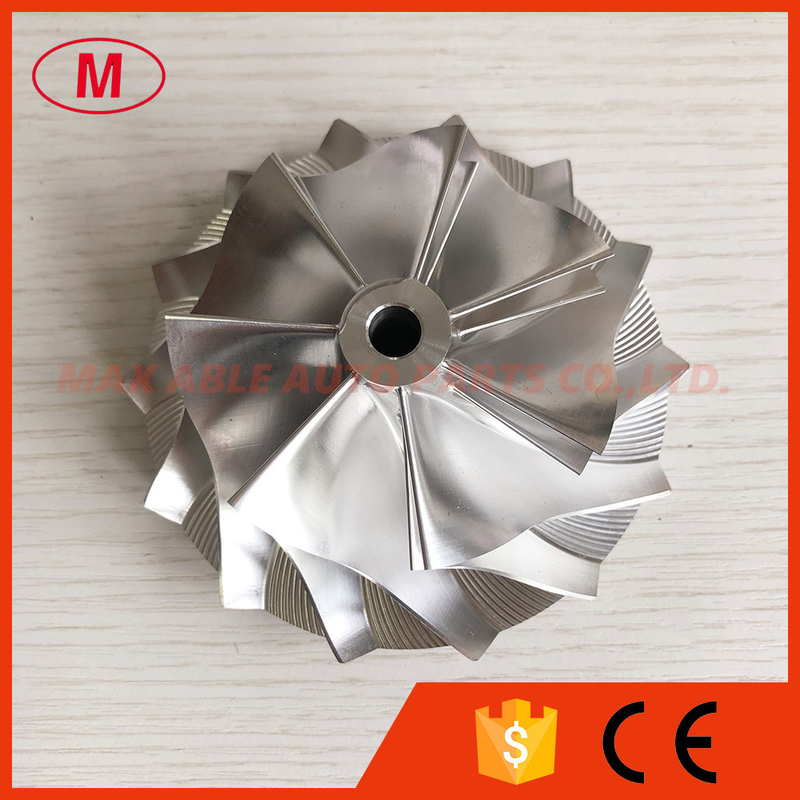

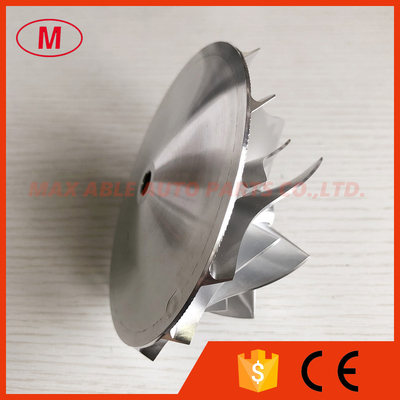

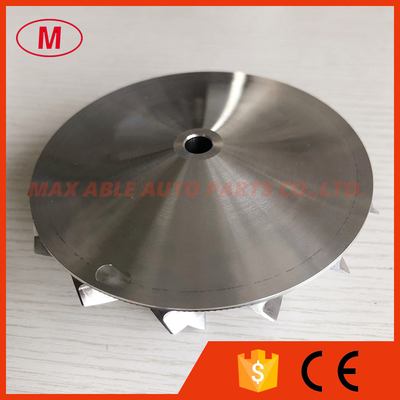

HX50 7+7 blades 71.00/99.01mm high performance turbo milling/aluminum 2618/billet compressor wheel

HX50 7+7 blades 71.00/99.01mm high performance turbo milling/aluminum 2618/billet compressor wheel

    • HX50 7+7 blades 71.00/99.01mm high performance turbo milling/aluminum 2618/billet compressor wheel
    • HX50 7+7 blades 71.00/99.01mm high performance turbo milling/aluminum 2618/billet compressor wheel
    • HX50 7+7 blades 71.00/99.01mm high performance turbo milling/aluminum 2618/billet compressor wheel
    • HX50 7+7 blades 71.00/99.01mm high performance turbo milling/aluminum 2618/billet compressor wheel
    • HX50 7+7 blades 71.00/99.01mm high performance turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Model Number: HX50

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: , T/T, Western Union, MoneyGram
    Supply Ability: 1000PCS /MONTHS
    Contact Now
    Detailed Product Description

    1.Model:HX50 forward
    2.HX50 7+7 blades 71.00/99.01mm high performance turbo Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:17.10mm
    Inducer:71.00mm
    exducer:99.01mm
    Tapered tip exducer:105.17mm
    Tip height:6.34mm
    Superback:6.27mm
    bore size :8.01mm
    bore type:through
    Overall height:45.05mm
    Cutback:0.0
    Trailing Angle:50 degree
    SP height angle:-2.40
    Blade height:36.81mm
    Splitter height:25.20mm
    7+7 blades forward
    Fit for OE compressor housing
    Tapered tip Angle:30 degree

    4.High quality and competitive price.
    5.if you want more details, please send email to me.
    we can desgin and produce as your requirement.

    All the compressor wheels have been balanced.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    HX50 7+7 blades 71.00/99.01mm high performance turbo milling/aluminum 2618/billet compressor wheelHX50 7+7 blades 71.00/99.01mm high performance turbo milling/aluminum 2618/billet compressor wheelHX50 7+7 blades 71.00/99.01mm high performance turbo milling/aluminum 2618/billet compressor wheelHX50 7+7 blades 71.00/99.01mm high performance turbo milling/aluminum 2618/billet compressor wheelHX50 7+7 blades 71.00/99.01mm high performance turbo milling/aluminum 2618/billet compressor wheel
