| Brand Name: | NO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GT15-25 forward

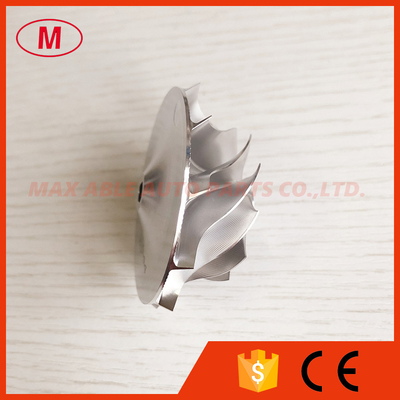

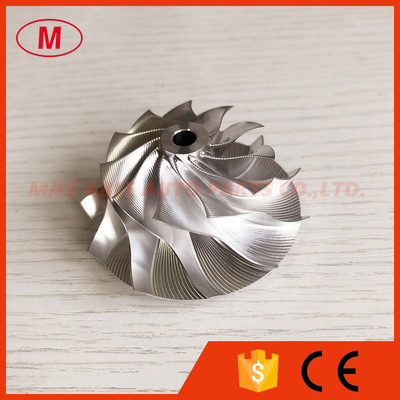

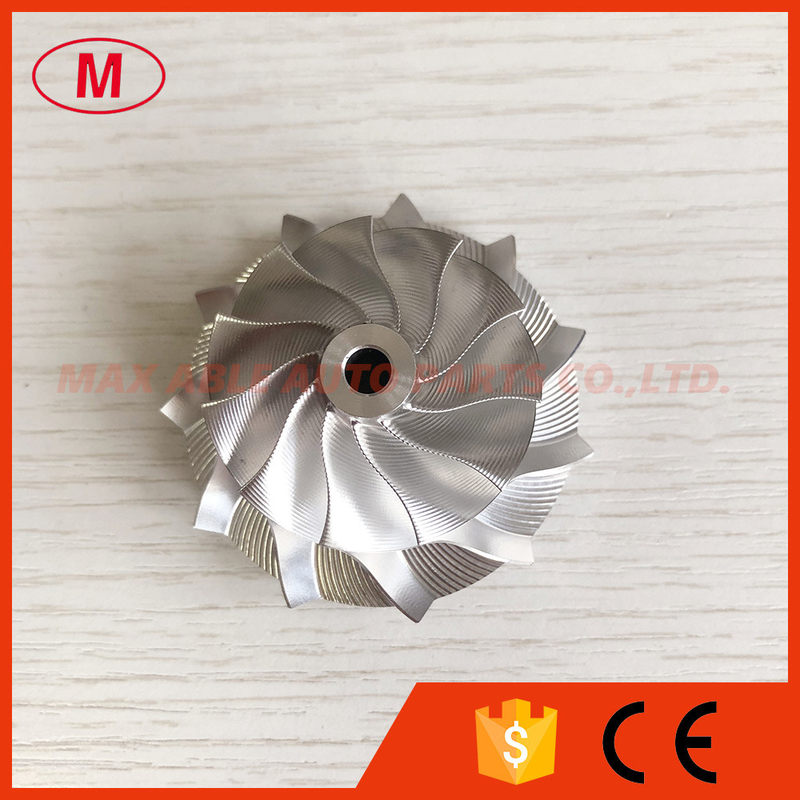

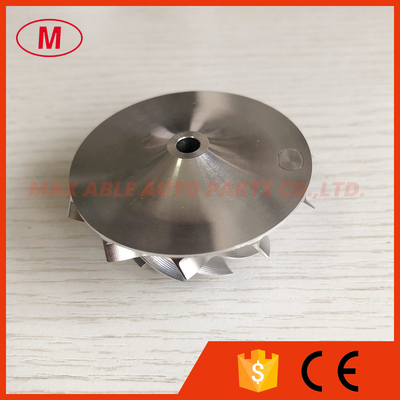

2. GT15-25 38.62/52.00mm 11+0 blades high performance point milling/snake curve Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose Diameter:10.42mm
inducer:38.62mm
Exducer:52.00mm
Tapered tip exducer:56.22mm
Tip height:4.66mm
Superback:3.90mm
Overall height:27.58mm
Bore size:5.08mm
bore type:through
Trailing angle:60 degree
Cutback:10.0
SP height angle:0.00
Splitter height:0.00
Blade height:19.00mm
11+0 blades
forward rotation
Tapered tip angle:30 degree
it is custom size ,please check carefully before buying
4.High quality and competitive price.
5.Any questions please send email to me.
All the billet compressor wheels have been balanced.
We have more size ,if you want ,please don't hesitate to contact me.
