| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | T04E |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 61.40/82.00mm | Type: | Turbochargers |
|---|
1. MODEL:T04E forward

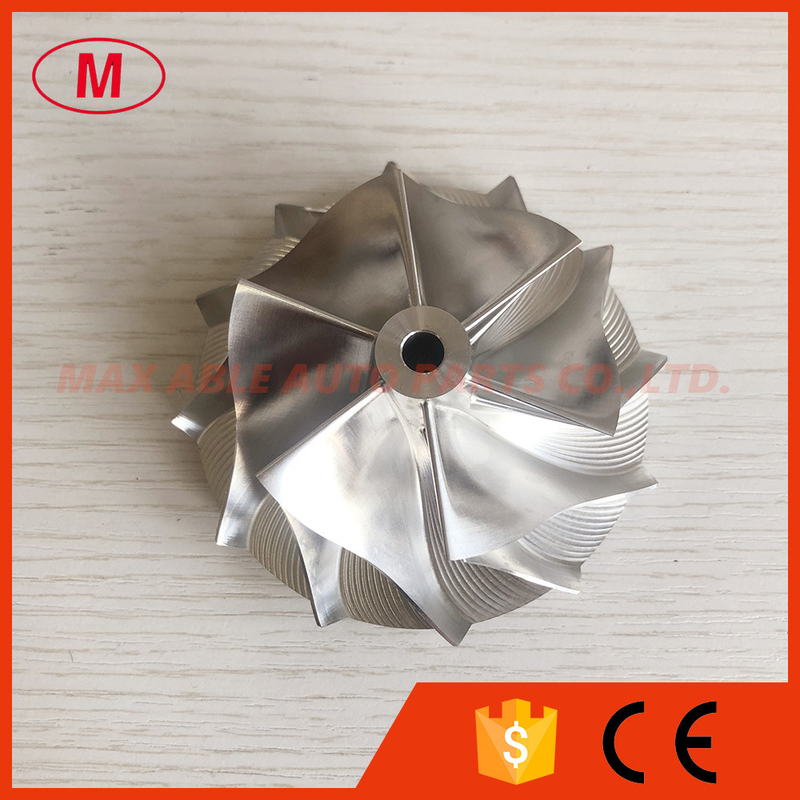

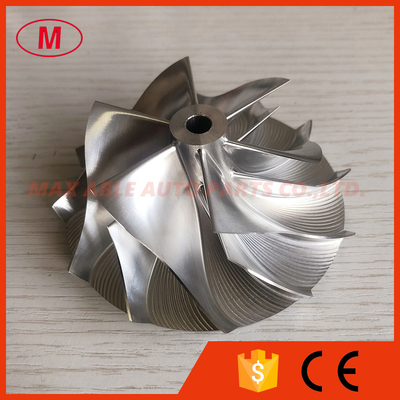

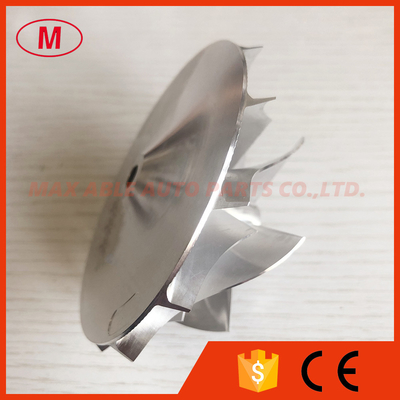

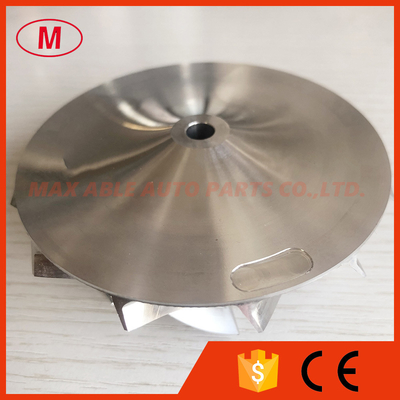

2.T04E forward 61.40/82.00mm 6+6 blades high performance turbo billet/milling/alumimun 2618 compressor wheel
3.Size:
Nose diameter:14.50mm
inducer:61.40mm
Exducer:82.00mm
Tapered tip exducer:87.82mm
Tip height:6.04mm
Superback:4.96mm
Overall height:36.40mm
Bore size:6.35mm
Trailing Angle:60
Sp height angle:0.00
Splitter height:17.50mm
Blade height:29.15mm
Cutback:0.0
Tapered tip angle: 30 degree
6 long 6 short.
Forward rotation
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
