Max Able Auto Parts Co.,Ltd.
Customer Satisfy is the eternal pursue of corporation.
Customer Satisfy is the eternal pursue of corporation.
 |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:RHF5 reverse

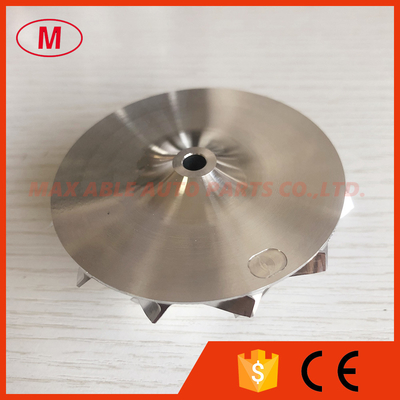

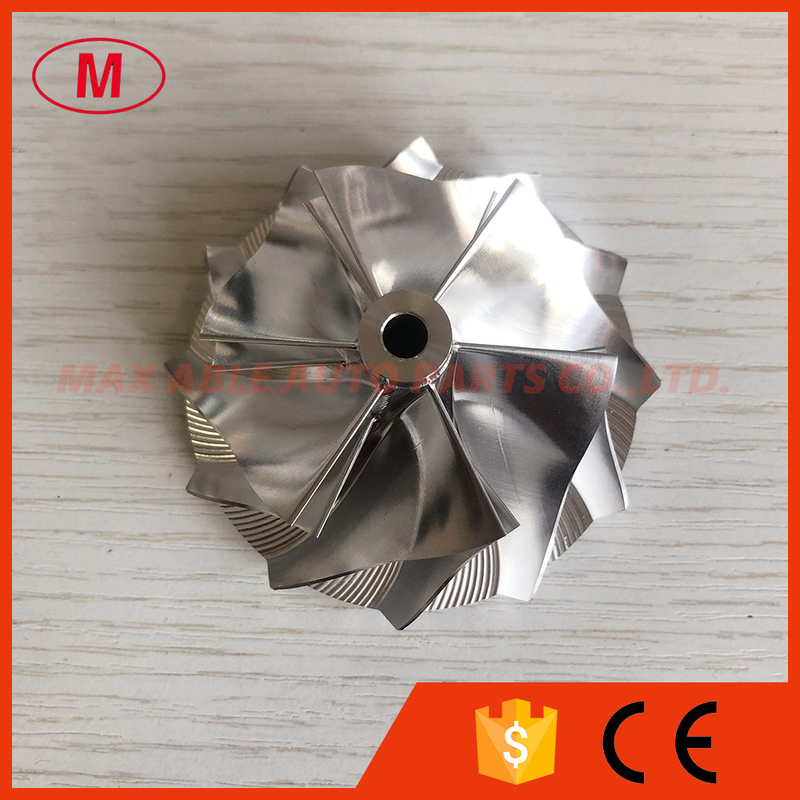

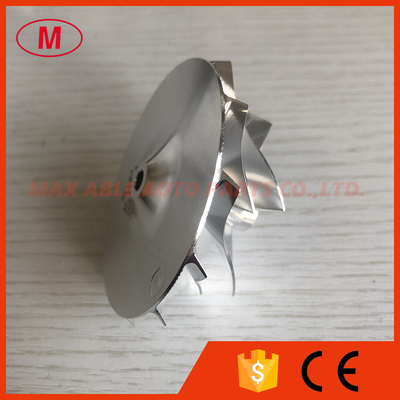

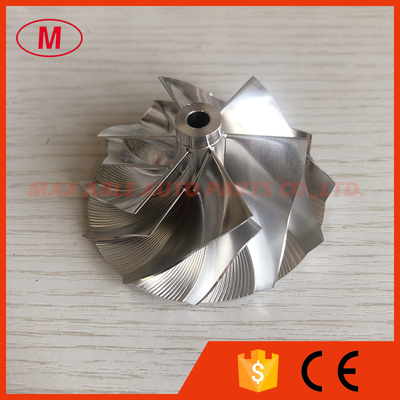

2.RHF5 reverse 49.50/63.80mm 6+6 blades high performance turbo turbocharger aluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:11.19mm
Inducer:49.50mm
exducer:63.80mm
Tapered tip exducer:68.16mm
Tip height :4.78mm
superback:3.40mm
Overall height:31.87mm
Bore size:5.10mm
bore type:through
Trailing Angle:60
Cutback:3.0
SP height angle:-12.00
Blade height:23.48mm
Splitter height;15.10mm
6+6 blades
Tapered tip Angle: 30 degree
It is for Custom size,Please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
We can produce as your requirement.
