| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD04H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD04H 15T Forward

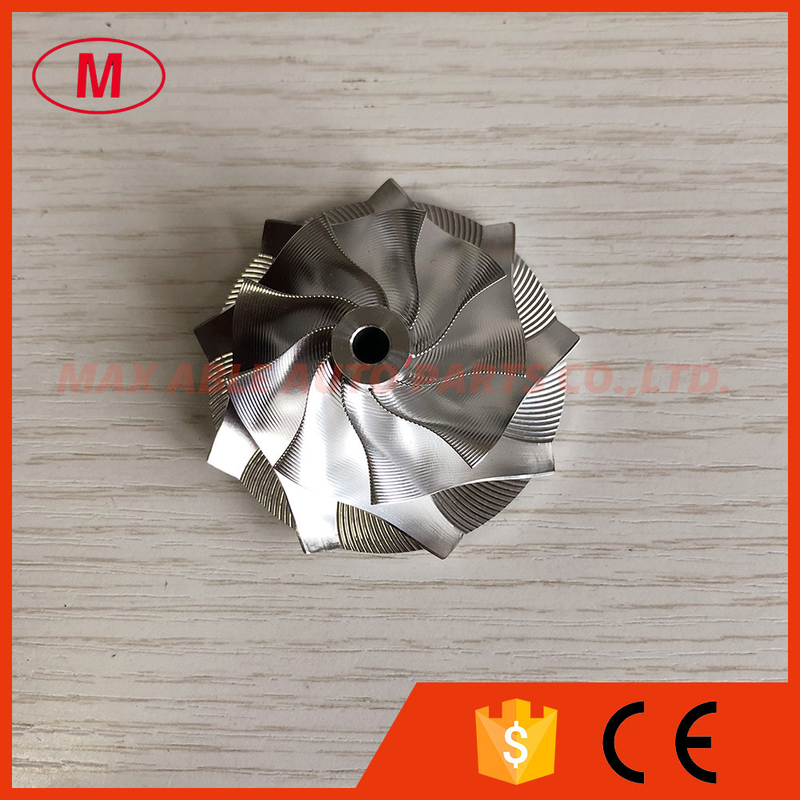

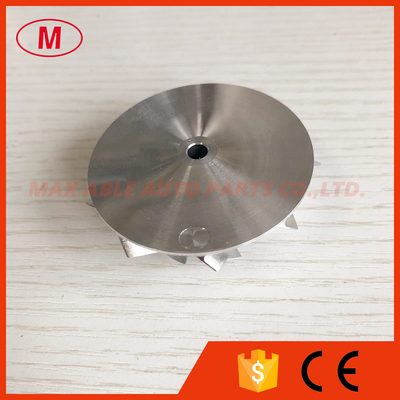

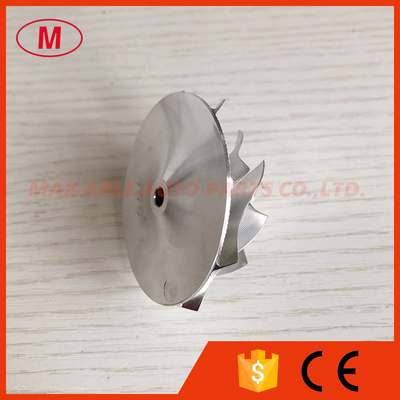

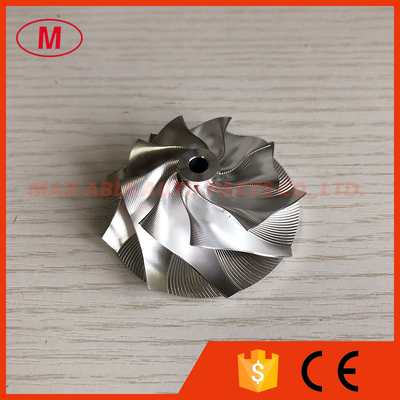

2. TD04H 15T 9+0 blades 41.93/55.69mm Point Milling, Snake Curve,Performance Design, Twisted Blade Design Turbo Billet/Milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:10.70mm
Inducer:41.93mm
Exducer:55.69mm
Tapered tip exducer:59.97mm
Tip height:4.71mm
Superback:1.90mm
Overall height:23.90mm
Bore size:5.00mm
bore type:through
Trailing angle:45 degree
Cutback:6.0
SP height angle:0.0
Blade height:18.00mm
Splitter height:0.00
Tapered tip angle:30 degree
9+0 blades
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me
All the compressor wheels have been balanced.
