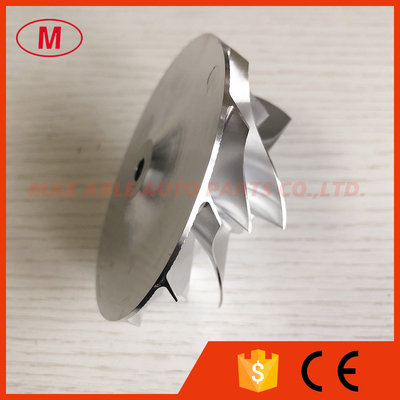

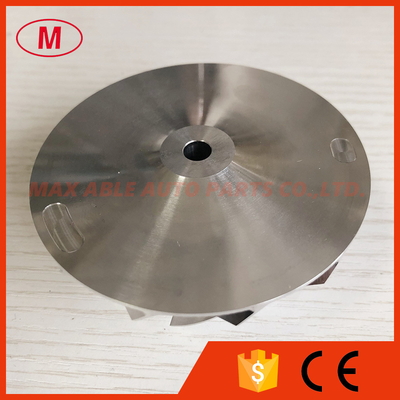

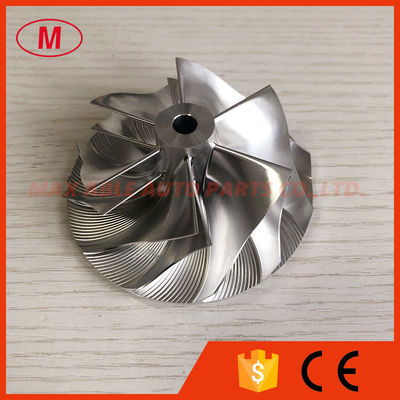

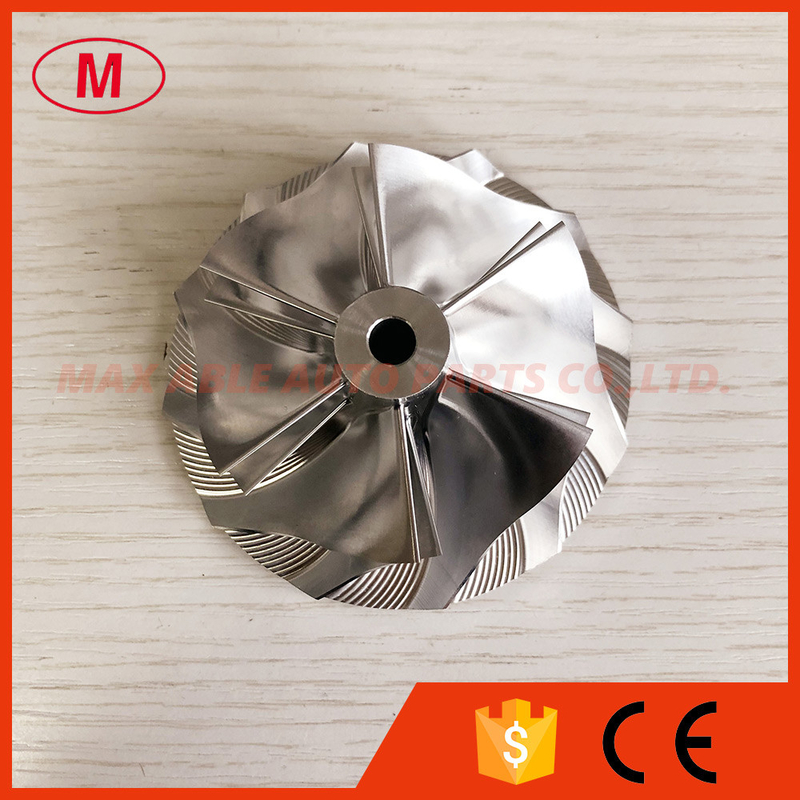

TD05H 25G reverse 60.50/78.00mm 6+6 blades tapered tip angle:0 Turbo Billet/milling/aluminum 2618 compressor wheel

TD05H 25G reverse 60.50/78.00mm 6+6 blades tapered tip angle:0 Turbo Billet/milling/aluminum 2618 compressor wheel

    • TD05H 25G reverse 60.50/78.00mm 6+6 blades tapered tip angle:0 Turbo Billet/milling/aluminum 2618 compressor wheel
    • TD05H 25G reverse 60.50/78.00mm 6+6 blades tapered tip angle:0 Turbo Billet/milling/aluminum 2618 compressor wheel
    • TD05H 25G reverse 60.50/78.00mm 6+6 blades tapered tip angle:0 Turbo Billet/milling/aluminum 2618 compressor wheel
    • TD05H 25G reverse 60.50/78.00mm 6+6 blades tapered tip angle:0 Turbo Billet/milling/aluminum 2618 compressor wheel
    • TD05H 25G reverse 60.50/78.00mm 6+6 blades tapered tip angle:0 Turbo Billet/milling/aluminum 2618 compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: TD05H 25G

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:TD05H 20G UPGRADE/ 25G Reverse rotation
    2.TD05H 25G reverse 60.50/78.00mm 6+6 blades Turbocharger Billet/milling/aluminum 2024 compressor wheel
    3.Size:
    Nose diameter:15.98mm
    Inducer:60.50mm
    exducer:78.00mm
    Tip height:6.80mm
    Superback:2.90mm
    bore size :6.50mm
    Overall height:33.70mm
    Trailing angle:75-90
    Cutback:1.0
    Blade height:26.65mm
    6+6 blades reverse rotation
    Tapered tip angle:0 degree
    It is custom size ,please check carefully before buying
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
