Model Number: | B03G |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
1. MODEL:B03G forward

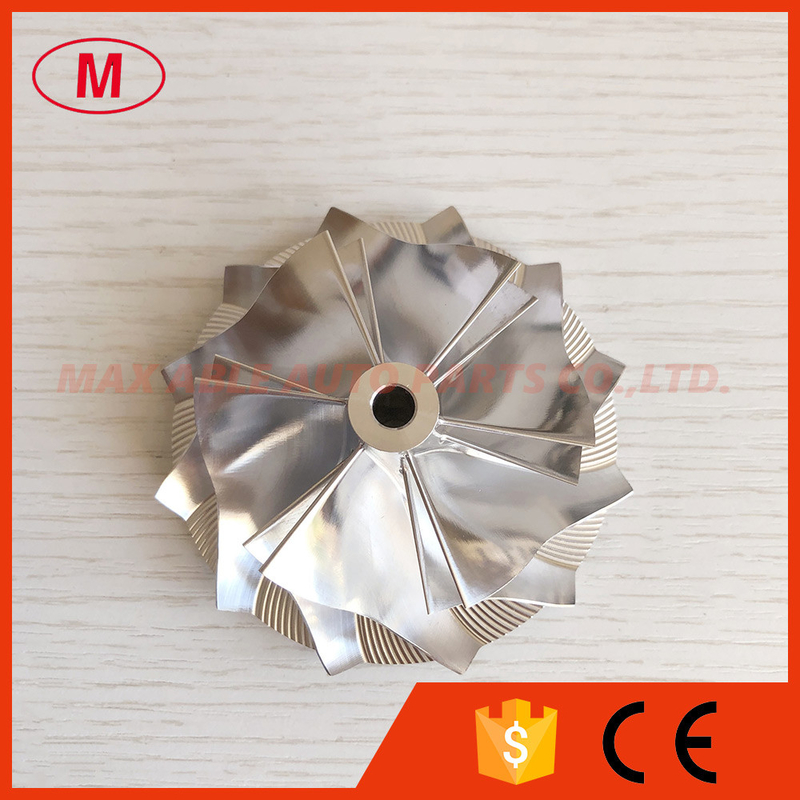

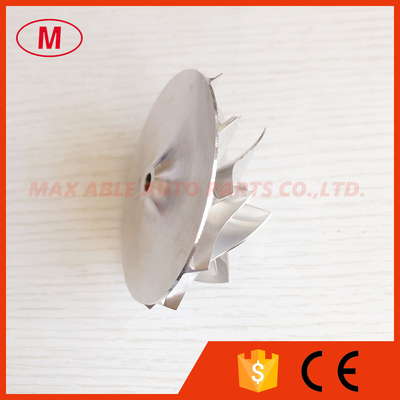

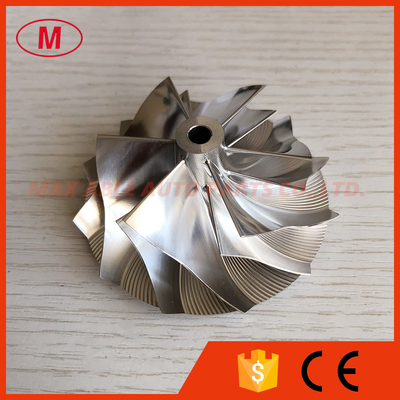

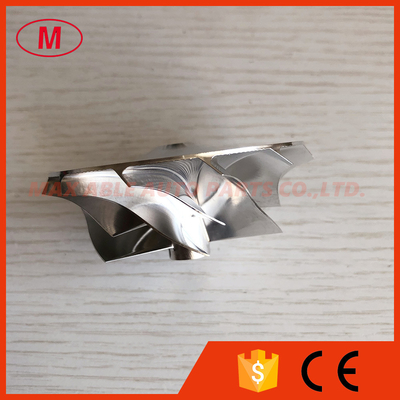

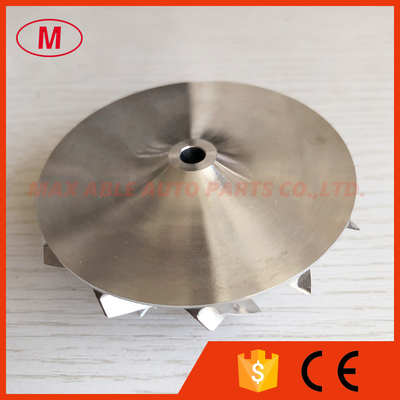

2. B03G 54.87/70.98mm 6+6 blades high performance turbocharger billet/milling/aluminum 2618 Compressor wheel
Size:
Nose diameter:12.30mm
inducer:54.87mm
Exducer:70.98mm
Tapered tip exducer:75.77mm
Tip height:5.15mm
Superback:3.79mm
Overall height:32.40mm
Bore size:5.61mm
Bore type:through
Trailing angle:60 degree
Cutback:3.5mm
SP height angle:0.00
Blade height:25.04mm
Splitter height:16.40mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
3.High quality and competitive price.
4.Any questions please send email to me,we have many size.
All the compressor wheels have been balanced.
