| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

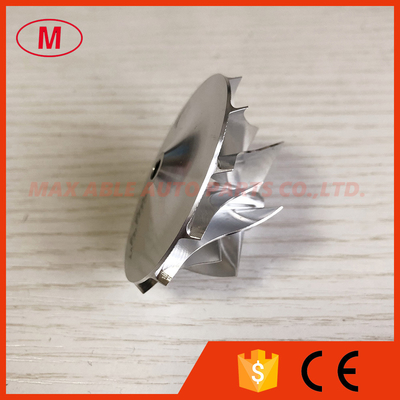

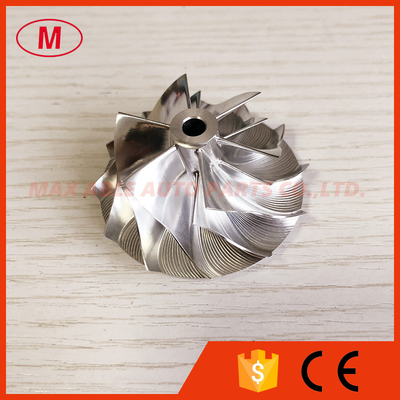

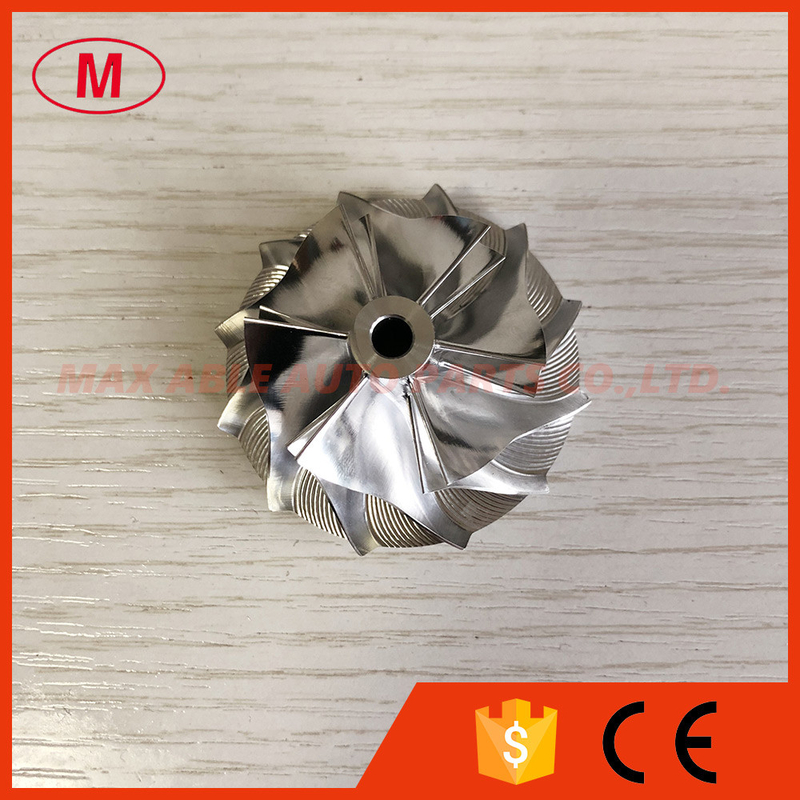

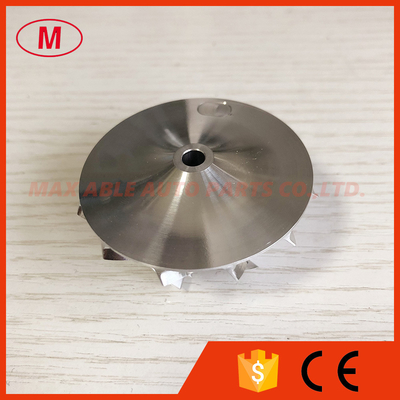

1.Model:GT15-25 forward
3.Size:
Nose diamter:10.65mm
inducer:38.58mm
Exduder:52.00mm
Tapered tip exducer:55.39mm
Tip height:3.94mm
Superback:3.90mm
Overall height:27.00mm
bore size :5.08mm
bore type:through
Trailing angle:60 degree
Cutback:4.5mm
SP height angle:0.00
Blade height:21.40mm
Splitter height:14.30mm
Fit for OE compressor housing
6+6 blades
Forward rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
6.Application:
760699-5004
The more models we also have.
