| Brand Name: | NO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:RHF5 reverse

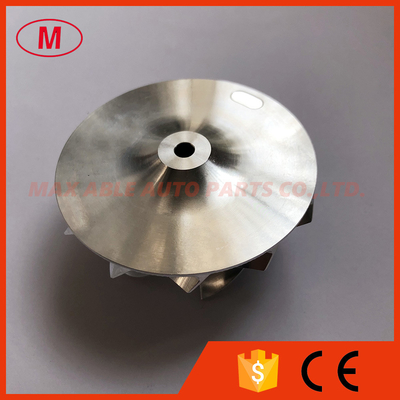

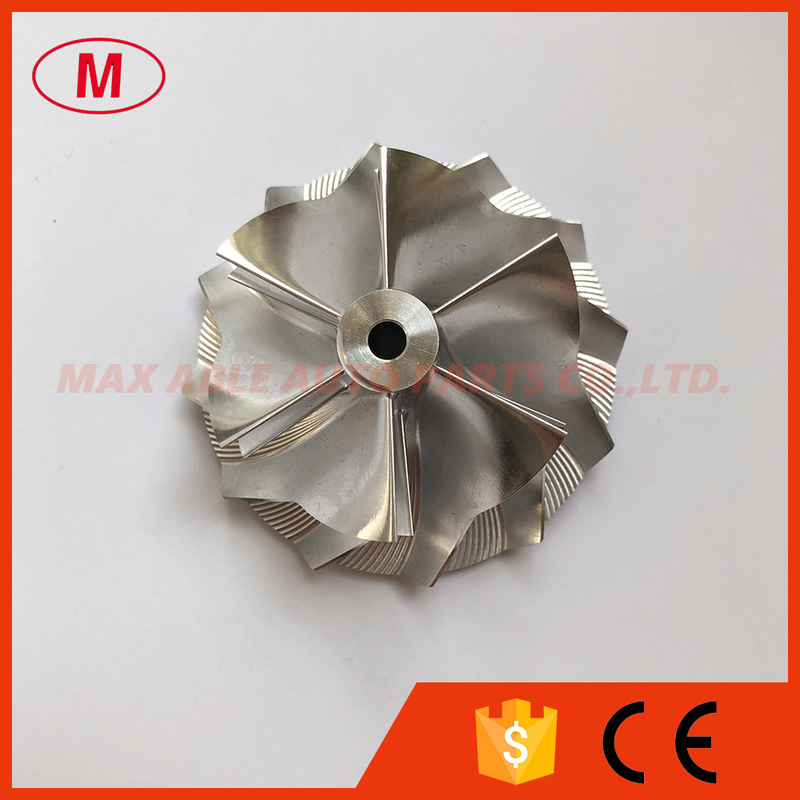

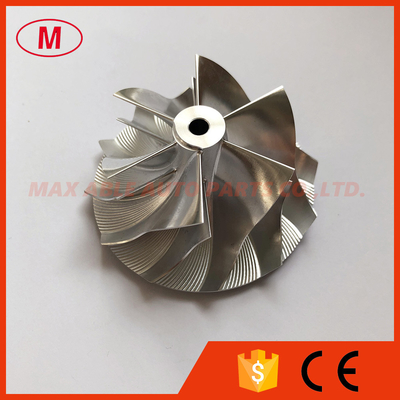

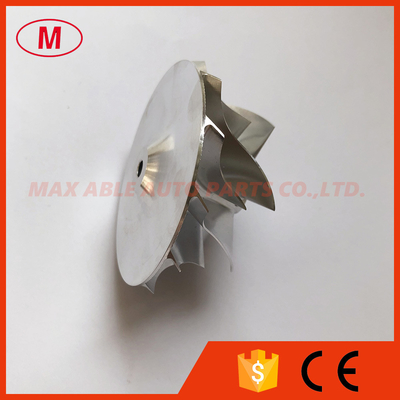

2.RHF5 reverse 52.56/68.00mm 6+6 blades high performance aluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:13.65mm
Inducer:52.56mm
exducer:68.00mm
Tapered tip exducer:71.01mm
Tip height :5.64mm
superback:3.81mm
Overall height:34.15mm
Bore size:5.10mm
Trailing angle:45
Cutback:0.0
SP height angle:-8.90
Splitter height:20.35mm
Blade height:28.87mm
6+6 blades
reverse rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
We can produce as your requirement.
