| Place of Origin: | CHINA |
| Brand Name: | no |
| Certification: | ISO |
| Model Number: | RHF4H |
| Minimum Order Quantity: | 4pcs |
|---|---|
| Packaging Details: | BOSCH PACKING |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:RHF4H forward

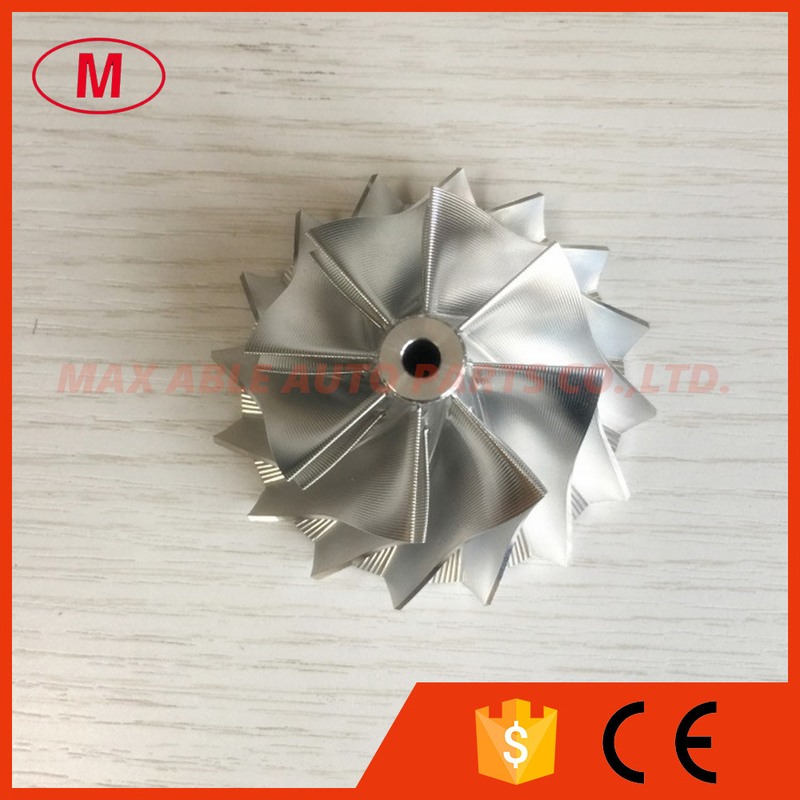

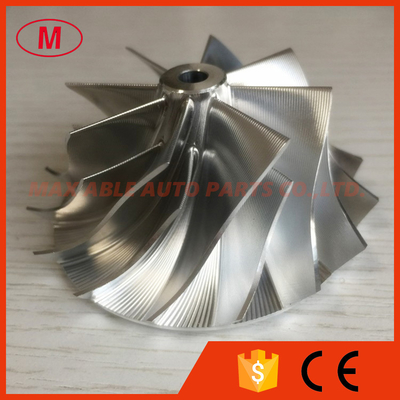

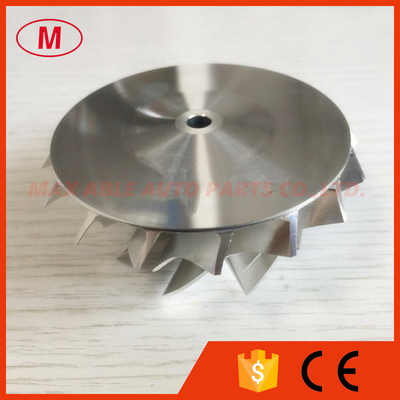

2.RHF4H 37.10/52.51mm 10+0 blades high performance turbo turbocharger aluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:11.20mm
Inducer:37.10mm
exducer:52.51mm
Tapered tip exducer:55.56mm
Tip height :3.65mm
superback:4.50mm
Overall height:30.25mm
Bore size:5.10mm
Trailing angle:45
Cutback:3.0
SP height angle:0.00
Blade height:21.50mm
Splitter height:0.00
10+0 blades
Forward rotation
It is custom size ,please check carefully before buying
Tapered tip angle:30 degree
4.High quality and competitive price.
5.Any questions please send email to me.
