| Model Number: | GTX3076 GEN ll |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Type: | Turbochargers |
|---|

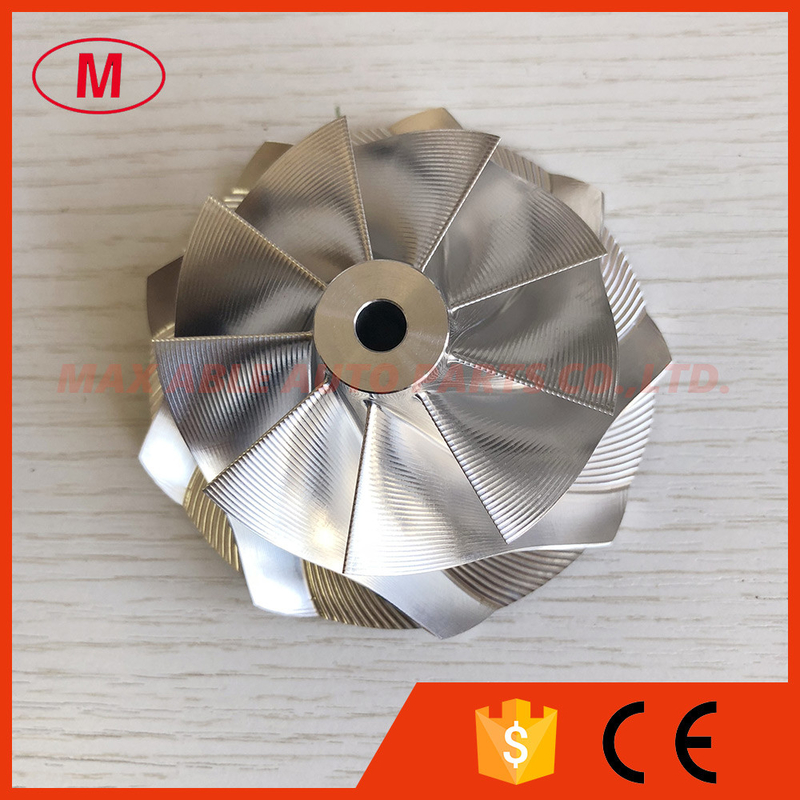

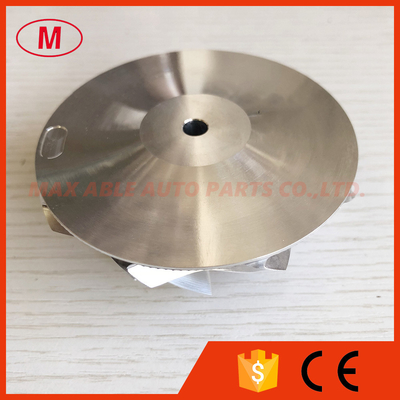

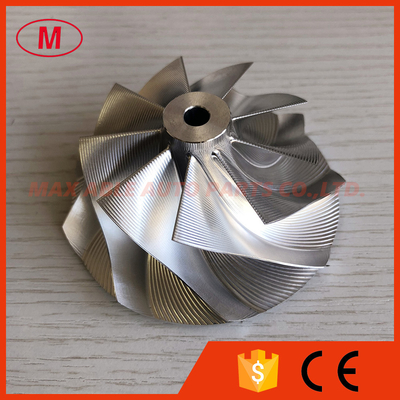

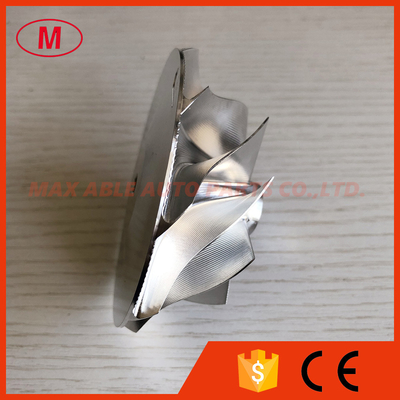

1.GTX3076 GEN ll point milling 58.23/76.43mm 9+0 blades bore:6.00 turbo billet/milling/aluminum 2618 compressor wheel
2.Size:
Nose diameter:16.00mm
inducer:58.23mm
Exducer:76.43mm
Tapered tip exducer:78.98mm
Tip height:6.23mm
Superback:2.18mm
Overall height:35.60mm
Bore size:6.00mm
bore type:through
Trailing angle:35 degree
SP height angle:0.00
Splitter height:0.00
Blade height:29.00mm
Cutback:6.5
9+0 blades
It is for OE compressor housing.
Tapred tip angle:13.5 degree
3.All the compressor wheels have been balanced
4.High quality and competitive price.
5.Any questions please send email to me.
6.Material: Aluminum 2618.
We can produce as your requirement.
