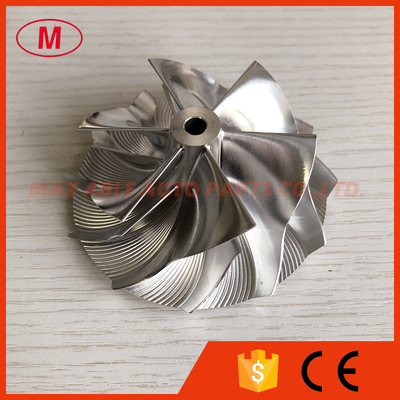

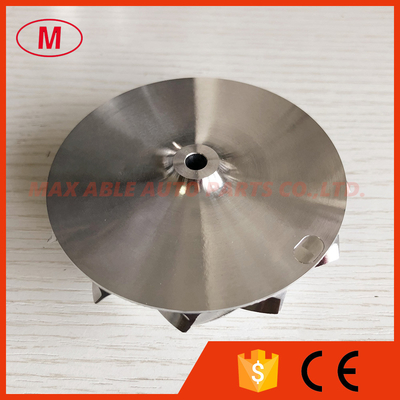

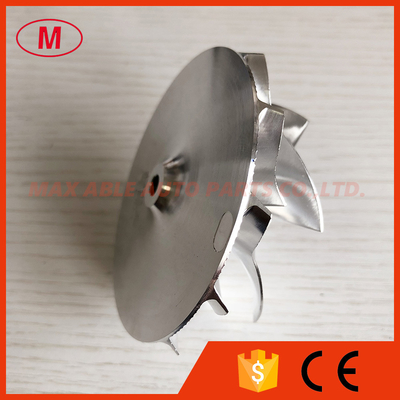

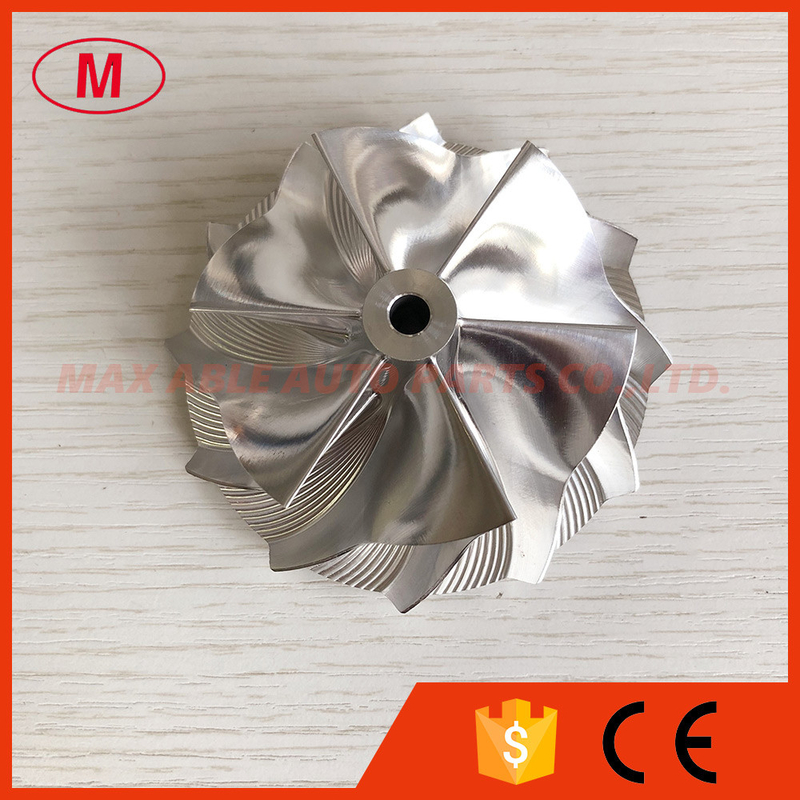

B03G reverse 6+6 blades 61.99/77.05mm High performance Turbo Billet/milling/aluminum 2618 compressor wheel

Contact Now

Detailed Product Description

1. MODEL:B03G reverse

2.B03G reverse 6+6 blades 61.99/77.05mm High performance Turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:13.00mm

Inducer:61.99mm

exducer:77.05mm

Tapered tip exducer:82.32mm

Tip height:5.56mm

Superback:4.00mm

bore size :5.61mm

Overall height:33.54mm

Cutback:2.2

Trailing Angle:60

Sp height angle:-5.50

Splitter height:15.50mm

Blade height:27.68mm

6+6 blades reverse rotation

It is custom size ,please check carefully before buying.

Tapered tip Angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
