| Brand Name: | NO |
| Model Number: | TA31 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 46.41/60.25mm | Type: | Turbochargers |
|---|
1. MODEL:TA31 Forward

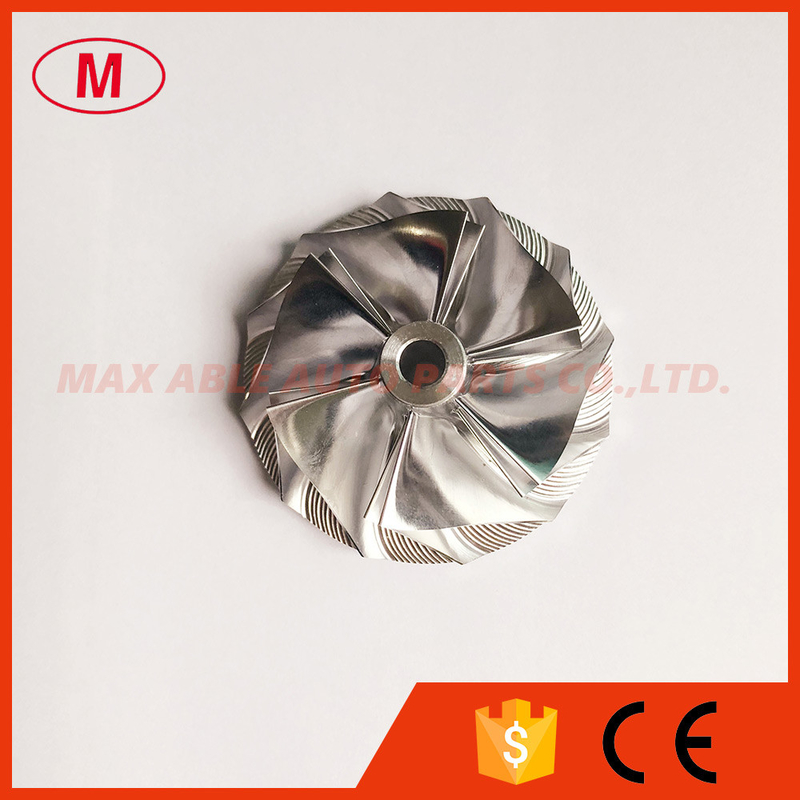

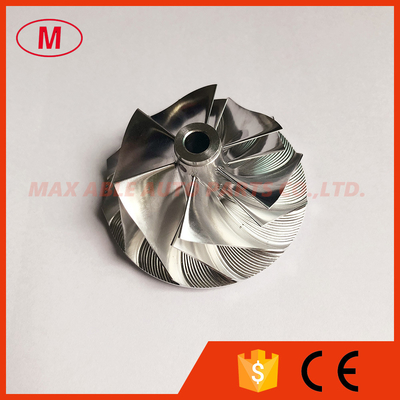

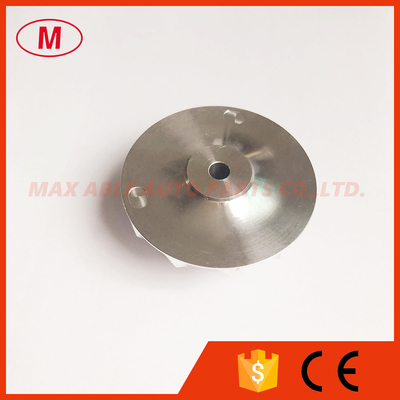

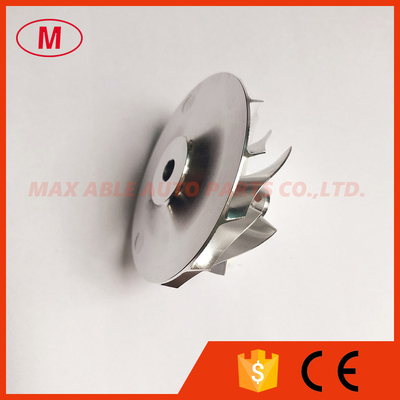

2. TA31 46.41/60.25mm 409096-0013 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for Kobelco 444836-0001/452064-0001/465103-0002/465133-0004/465189-0001/465286-0004/465358-0003/465404-0003/465503-0001/465562-0004/465564-0006/465576-0004/465593-0001
3.Size:
Nose diameter:12.16mm
inducer:46.41mm
Exducer:60.25mm
Tip height:5.89mm
Superback:3.81mm
Overall height:31.00mm
Bore size:6.35mm
Trailing angle:60
Cutback:1.0
Sp height angle:-4.50
Blade height:20.70mm
Splitter height:13.95mm
6+6 blades
Forward rotation
Tapered tip angle:0 degree
It is for OE compressor housing
Aplication:
444836-0001
452064-0001
465103-0002
465133-0004
465189-0001
465286-0004
465358-0003
465404-0003
465503-0001
465562-0004
465564-0006
465576-0004
465593-0001
4.High quality and competitive price.
5.Any questions please send email to me,we have many size.
All the compressor wheel have been balanced.
