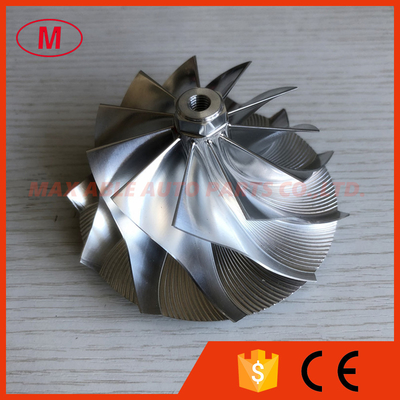

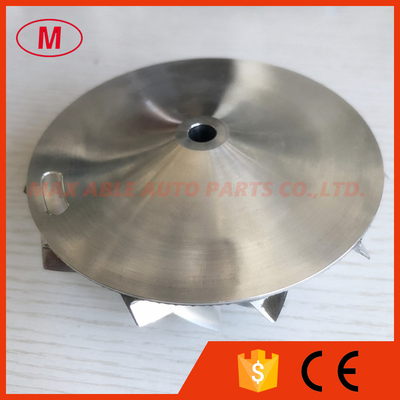

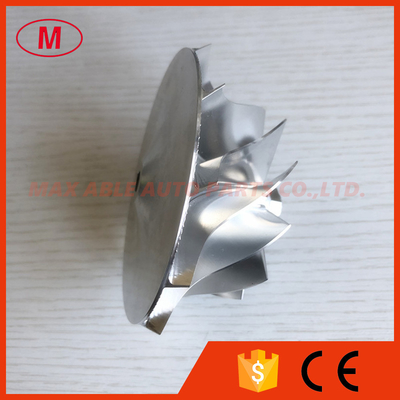

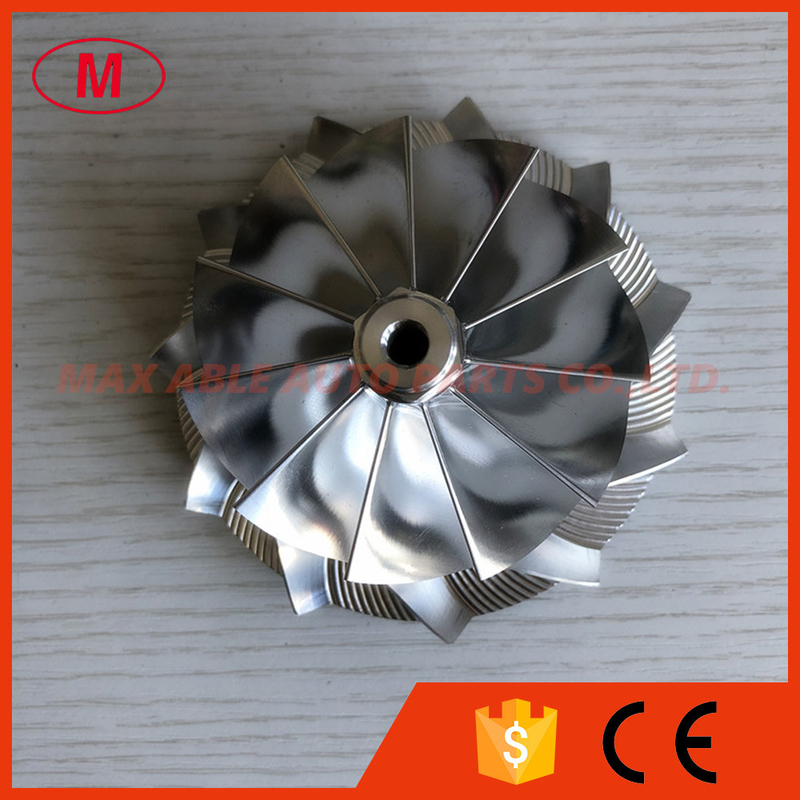

GT3794 70.30/94.00mm 11+0 blades high performance turbo billet/milling/aluminum 2618 compressor wheel

GT3794 70.30/94.00mm 11+0 blades high performance turbo billet/milling/aluminum 2618 compressor wheel

    • GT3794 70.30/94.00mm 11+0 blades high performance turbo billet/milling/aluminum 2618 compressor wheel
    • GT3794 70.30/94.00mm 11+0 blades high performance turbo billet/milling/aluminum 2618 compressor wheel
    • GT3794 70.30/94.00mm 11+0 blades high performance turbo billet/milling/aluminum 2618 compressor wheel
    • GT3794 70.30/94.00mm 11+0 blades high performance turbo billet/milling/aluminum 2618 compressor wheel
    • GT3794 70.30/94.00mm 11+0 blades high performance turbo billet/milling/aluminum 2618 compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: GT3794

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1.Model:GT3794 Forward


    2.GT3794 70.30/94.00mm 11+0 blades high performance turbo
    billet/milling/aluminum 2618 compressor wheel

    3.Size:
    Nose diameter:16.38mm
    Inducer:70.30mm
    Exducer:94.00mm
    Tapered tip exducer:100.50mm
    Tip height:6.63mm
    Superback:5.55mm
    Overall height:53.50mm
    Bore size:7.48mm
    Trailing angle:60
    Bore type:Threaded-M7x1.0LHT
    Cutback:6.0
    SP Height angle:0.00
    Blade height:40.21mm
    Splitter height:0.00mm
    11+0 blades
    Forward rotation
    Tapered tip angle:30 degree
    It is custom size,please check carefully before buying.

    4.High quality ,competitive price and good service.

    5.We can also produce as your requirement.
    All the compressor wheel have been balanced.

    6.If you want more details, please send email to me or talk to me online.
    We will try our best to meet your needs.
