Home ProductsBillet compressor wheel

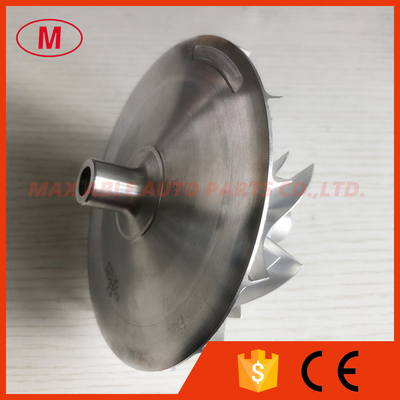

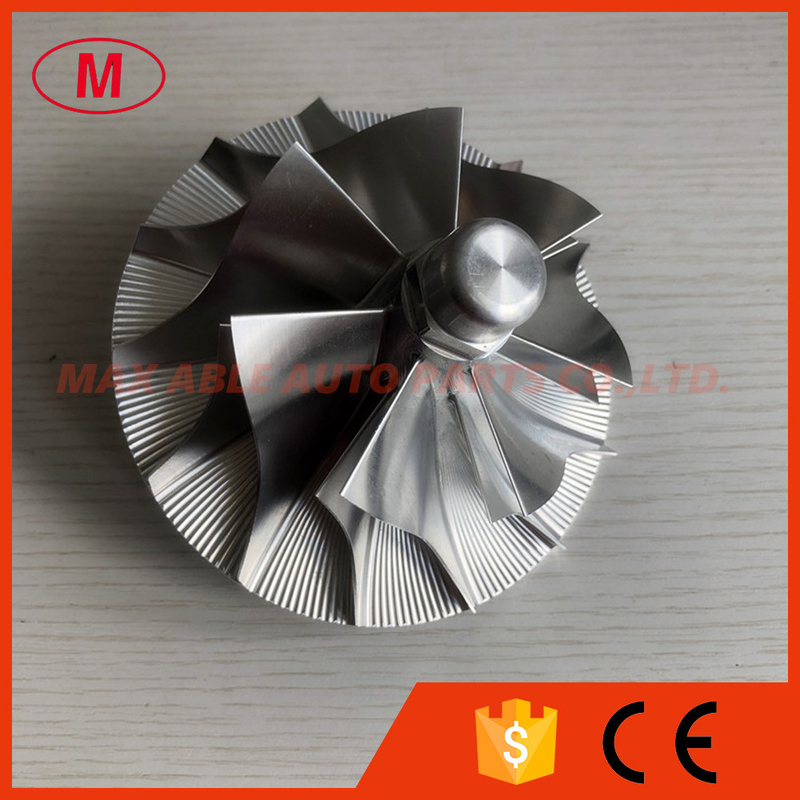

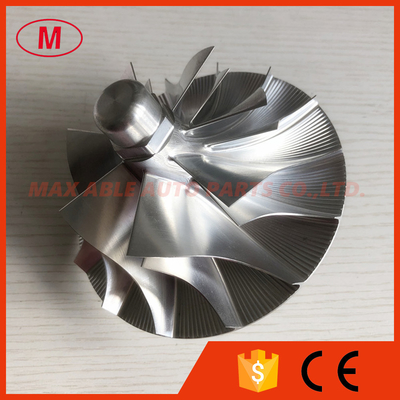

GTA5523 729947-0003 85.55/123.50mm 7+7 blades Turbo Aluminum 2618/Milling/Billet compressor wheel

GTA5523 729947-0003 85.55/123.50mm 7+7 blades Turbo Aluminum 2618/Milling/Billet compressor wheel

    • GTA5523 729947-0003 85.55/123.50mm 7+7 blades Turbo Aluminum 2618/Milling/Billet compressor wheel
    • GTA5523 729947-0003 85.55/123.50mm 7+7 blades Turbo Aluminum 2618/Milling/Billet compressor wheel
    • GTA5523 729947-0003 85.55/123.50mm 7+7 blades Turbo Aluminum 2618/Milling/Billet compressor wheel
  • GTA5523 729947-0003 85.55/123.50mm 7+7 blades Turbo Aluminum 2618/Milling/Billet compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: GTA5523

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1.Model:GTA5523 forward

    2.GTA5523 729947-0003 85.55/123.50mm 7+7 blades Turbo Aluminum 2618/Milling/Billet compressor wheel

    3.Size

    Nose Diameter:23.90mm

    Inducer:85.55mm

    Base Exducer:123.50mm

    Tip height:8.96mm

    Superback:26.87mm

    Overall height:92.65mm

    Bore size:BL

    Thriling Angle:45

    Cutback:6.00

    Height Angle:0.00

    Bore Type:Boreless-3/8-16G-LHT

    Blade height:42.98mm

    7+7 blades

    Forward rotation

    Tapered tip angle:0 degree

    It is for OE compressor housing

    4.High quality ,competitive price and good service.

    5.We can also produce as your requirement.
    All the compressor wheel have been balanced.

    6.If you want more details, please send email to me or talk to me online.
    We will try our best to meet your needs.
