| Brand Name: | NO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GT15-25 FORWARD

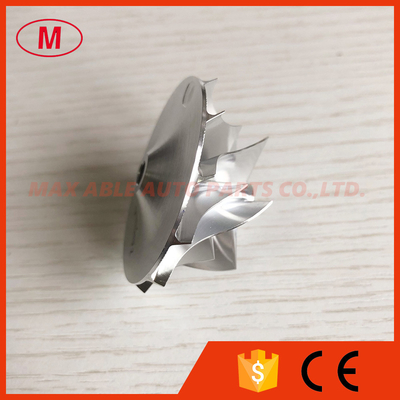

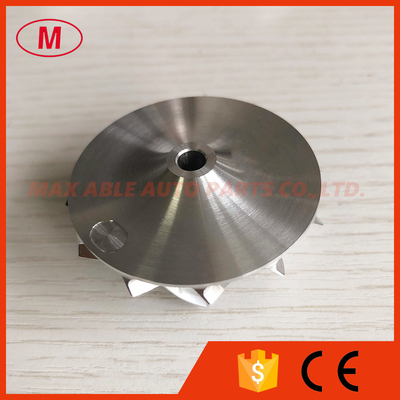

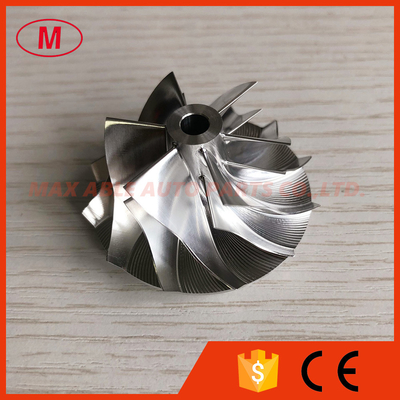

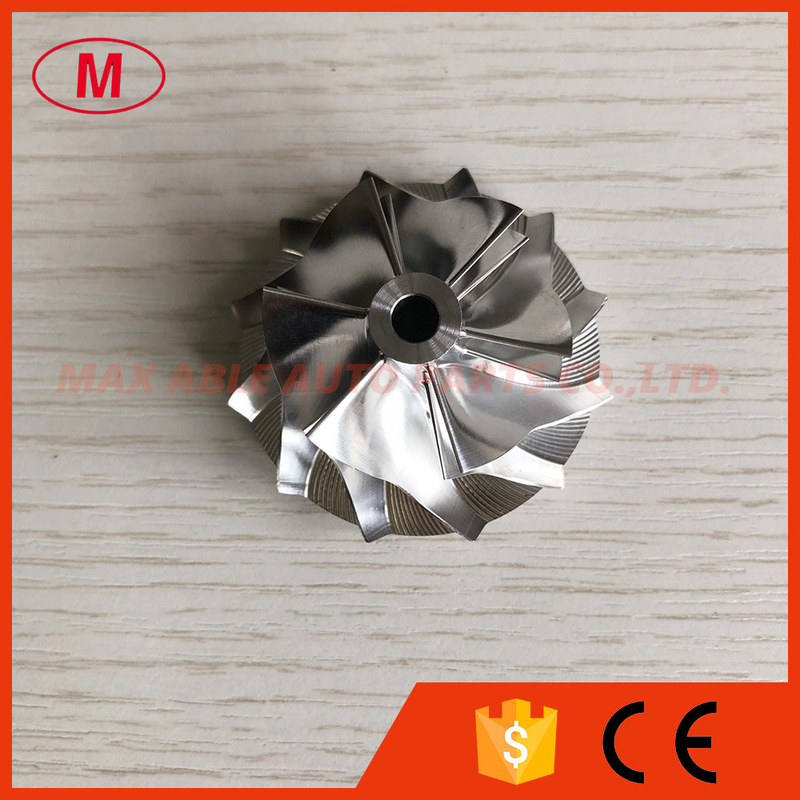

2.GT15-25 6+6 blades 34.10/46.00mm high performance turbo billet/milling/aluminum 2618 compressor wheel for 737686-0002/767686-0002
3.Size:
Nose diameter:9.96mm
inducer:34.10mm
Exduder:46.00mm
Tapered tip exducer:49.16mm
Tip height:3.74mm
Superback:3.90mm
Overall height:25.20mm
bore size :5.08mm
bore type:through
Trailing Angle:55 degree
Cutback:0.00
Blade height:19.64mm
Splitter height:13.50mm
SP height angle:-3.60
Tapered tip Angle:30 degree
6+6 blades
Forward rotation
Fit for OE compressor housing
Application:
737686-0002
767686-0002
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
