| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
|

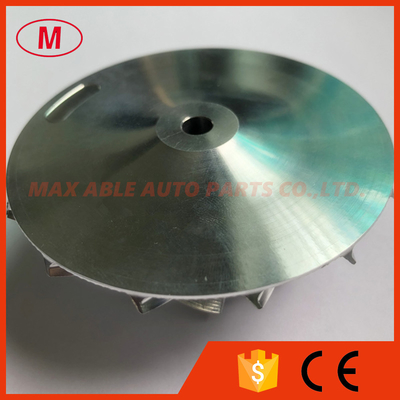

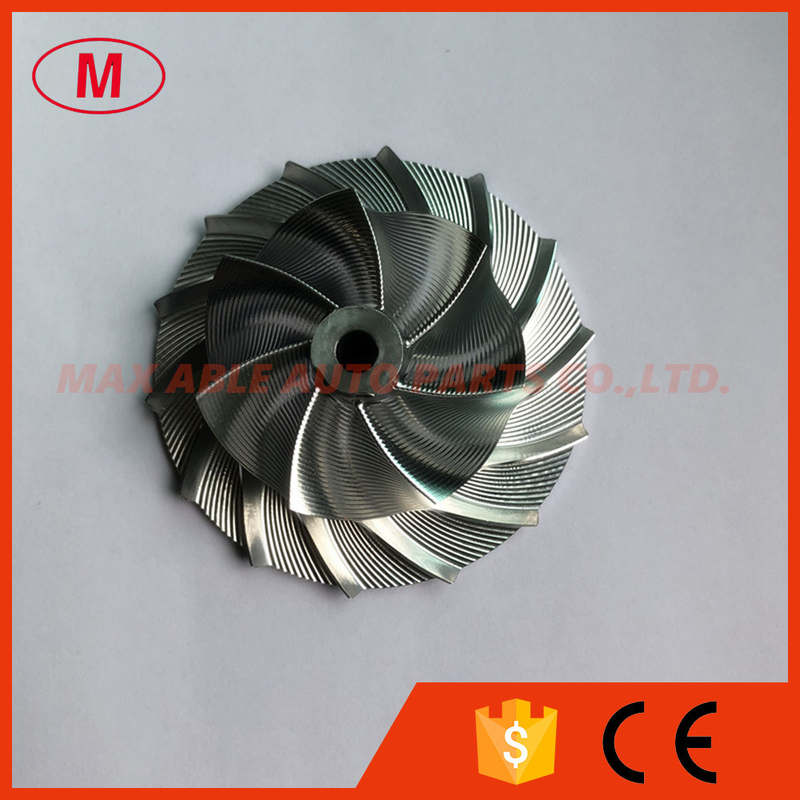

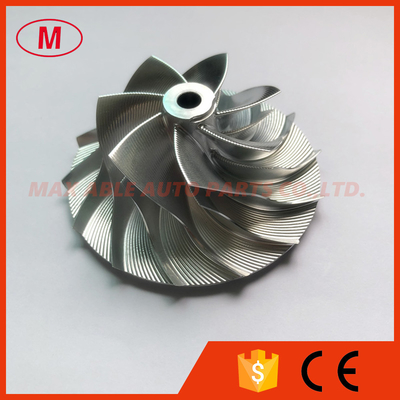

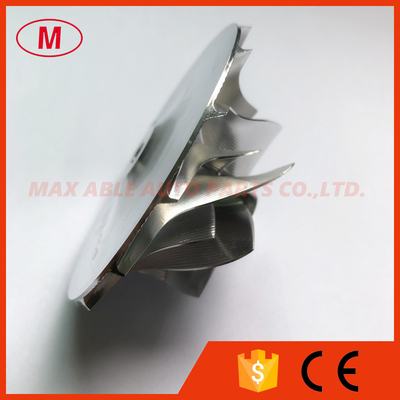

1. MODEL:TD05H foward 2.TD05H 52.56/80.00mm 7+7 blades high performance point milling Turbo Billet/milling/aluminum 2618 compressor wheel 3.Size: Nose diameter:14.40mm Inducer:52.56mm Exducer:80.00mm Tapered tip exducer:83.04mm Tip height:3.63mm Superback:2.90mm Overall height:34.00mm bore size :6.50mm Trailing Angle:60 Cutback:0.0 SP height angle:-5.90 Splitter height:18.86mm Blade height :28.00mm Tapered tip Angle:30 degree 7+7 BLADES. Forward rotation It is custom size ,please check carefully before buying. 4.High quality and competitive price. 5.if you want more details, please send email to me. All the compressor wheel have been balanced. 6.Material:Aluminum 2618 |
