| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | S200 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:S200 forward

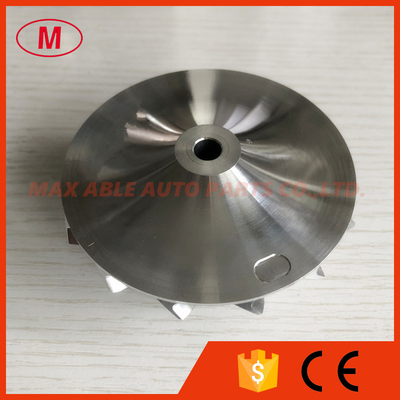

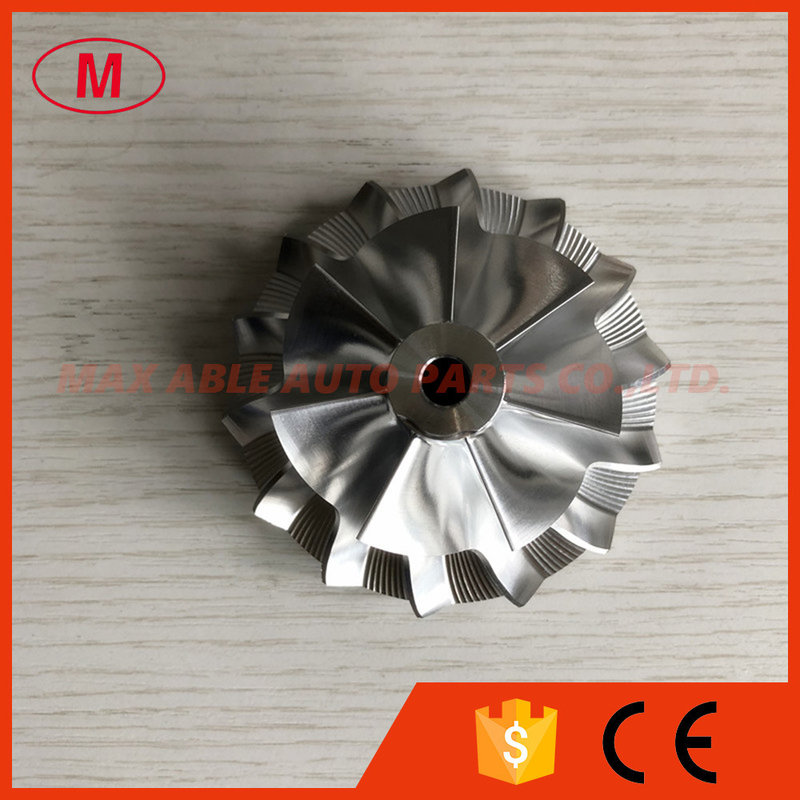

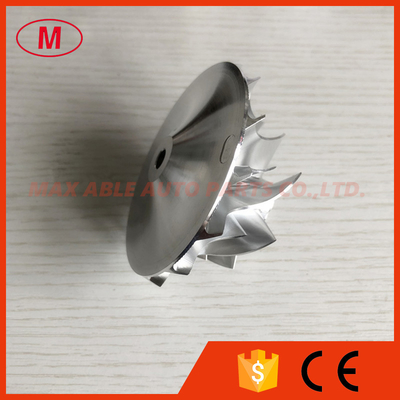

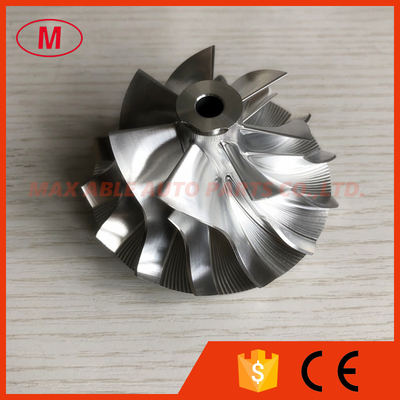

2.S200 169937 53.25/76.30mm 7+7 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel for DEUTZ 318815 /04259318k
3.Size:
Nose diameter:17.20mm
Inducer:53.25mm
Exducer:76.30mm
Tapered tip exducer:80.05mm
Tip height:5.79mm
Overall height:43.17m
Superback:6.46mm
Bore size:7.00mm
Trailing angle:50
Cutback:0.0
SP height angle:-12.00
Splitter height:21.54
Blade height:31.74mm
7+7 blades
forward rotation
Tapered tip angle:21.4 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me
