| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H 20G UPGRADE |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Type: | Turbochargers |
|---|
1. MODEL:TD05H 20G upgrade reverse

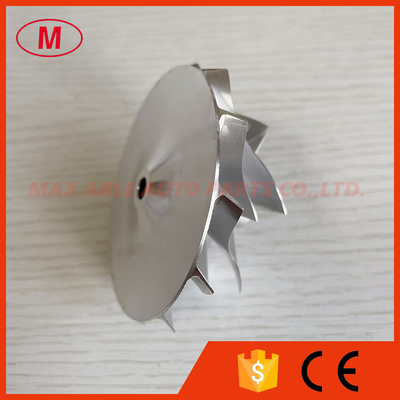

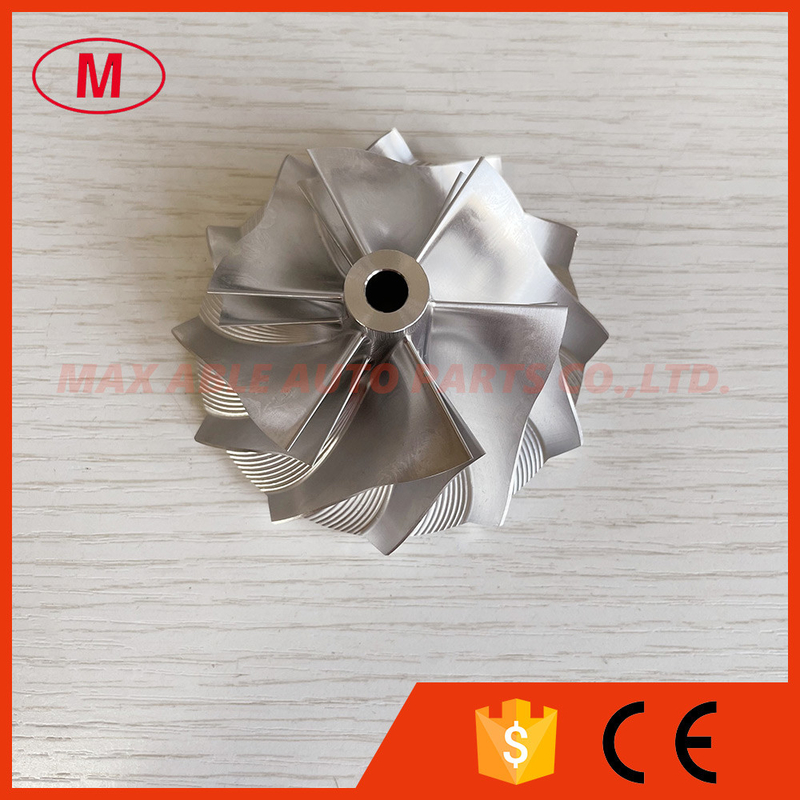

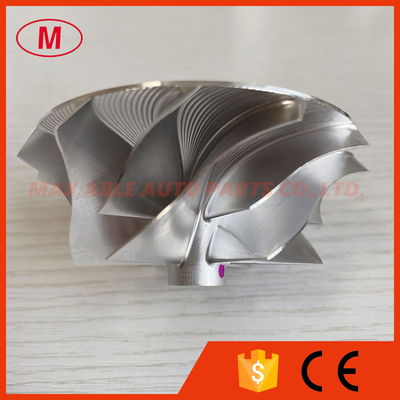

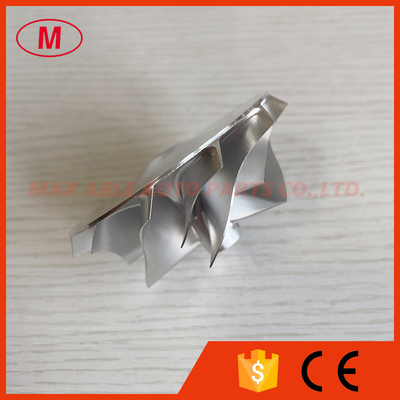

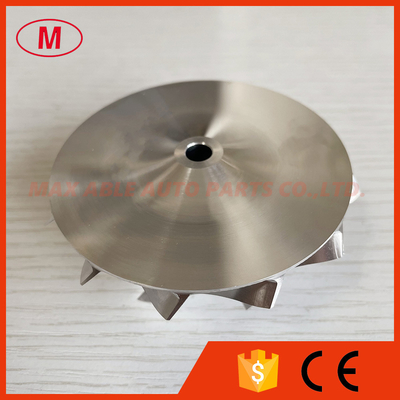

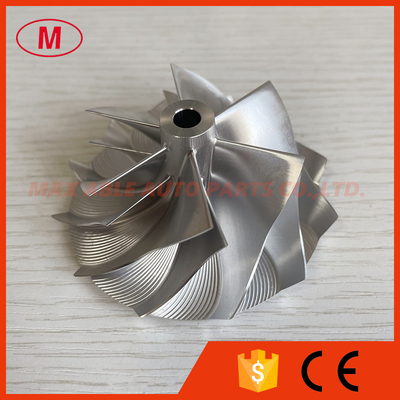

2.TD05H 20G upgrade reverse 56.58/73.04mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:13.13mm
inducer:56.58mm
Inducer:73.04mm
Tapered tip exducer:79.34mm
Tip height:6.46mm
Superback:2.90mm
Overall height:35.04mm
bore size :6.50mm
bore type:through
Trailing Angle:55 degree
Cutback:0.00
Blade height:27.50mm
cutback:0.0mm
Splitter height:19.00mm
Sp height angle:-2.50
Tapered tip Angle:30 degree
6+6 blades
It is Custom size,Please check carefully before buying
Reverse rotation
4.High quality and competitive price.
