| Model Number: | k04 reverse |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:K04 reverse

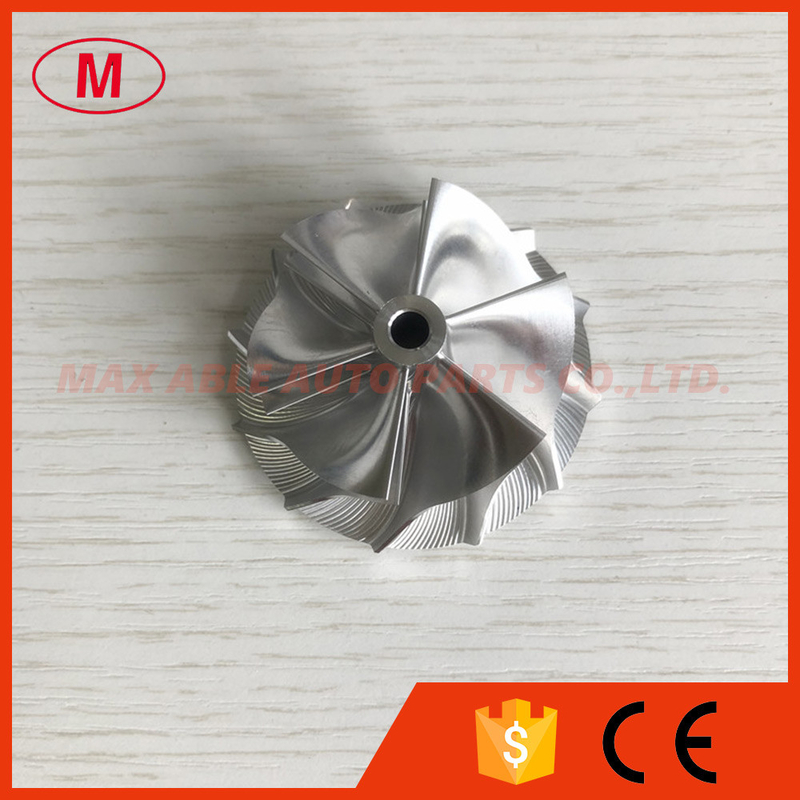

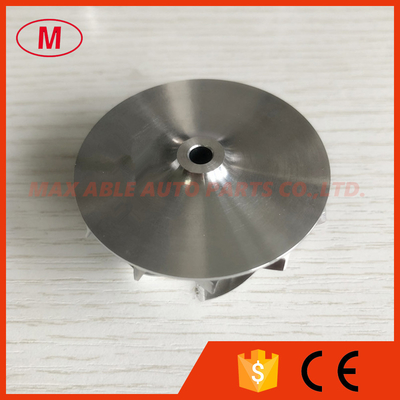

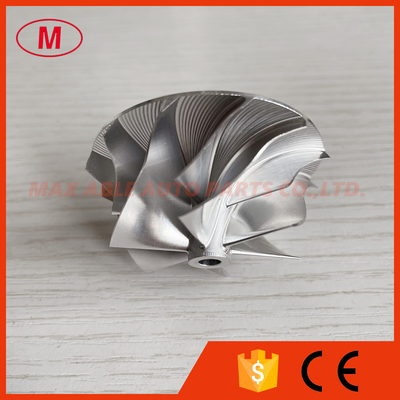

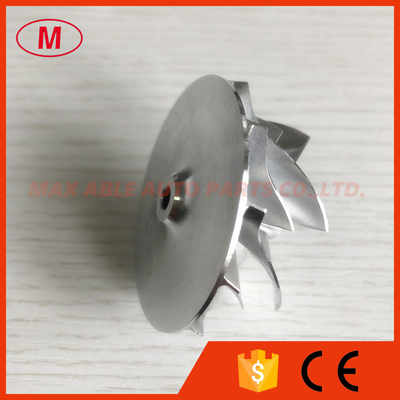

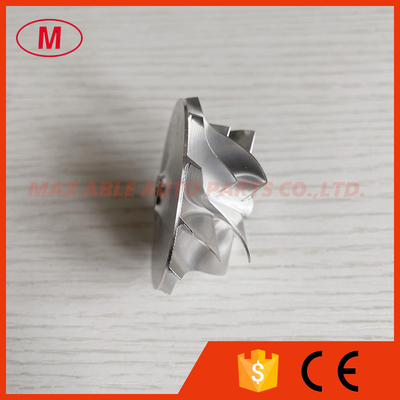

2.K04 reverse 40.64/50.80mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel for 5303-970-0048 reverse
3.Size:
Nose diameter:8.84mm
Inducer:40.64mm
Exducer:50.80mm
Tapered tip exducer:52.91mm
Tip height:4.04mm
Superback:2.60mm
Bore size:4.61mm
bore type:through
Overall height:25.90mm
Trailing Angle:55 degree
Cutback:0.0
Blade height:21.21mm
Splitter height:14.00mm
Sp height angle:-4.50
Tapered tip Angle:18 degree
6+6 blades
reverse rotation
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.Any questions please send email to me
All the billet wheels have been balanced.
