| Model Number: | K16 20G reverse |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | NEUTRAL PACKING |
| Delivery Time: | 3-4 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 100PCS |
1. MODEL:K16 20G reverse

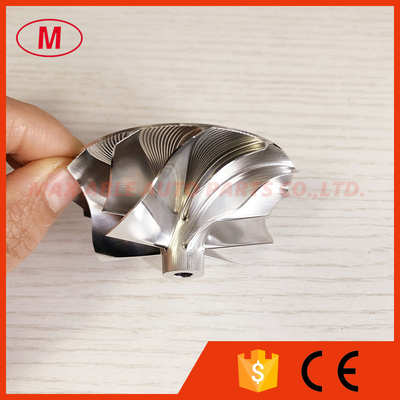

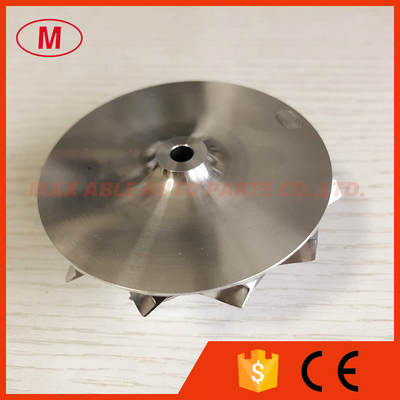

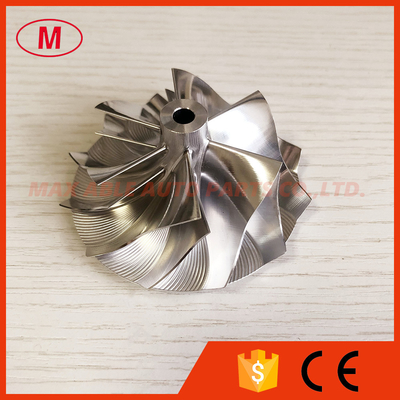

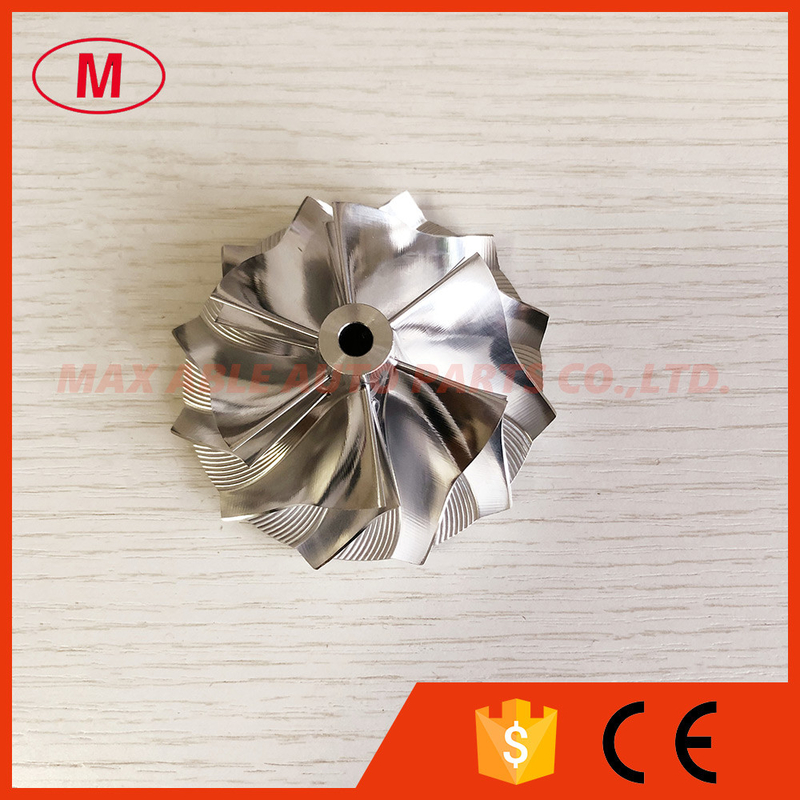

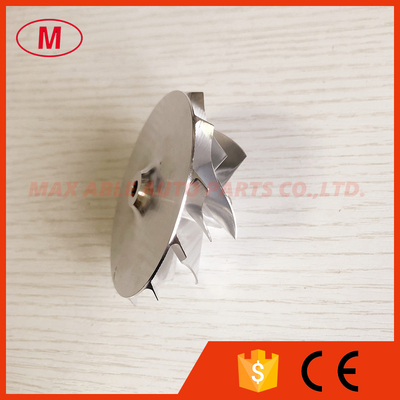

2. K16 20G reverse 52.56/68.00mm 6+6 blades Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.00mm
Inducer:52.56mm
Exducer:68.00mm
Tapered tip exducer:73.04mm
Tip height:5.37mm
Superback:3.81mm
Overall height:33.40mm
bore size :5.41mm
bore type:through
Trailing angle:45 degree
Cutback:0.0
SP height angle:-1.00
Splitter height:15.70mm
Blade height :22.94mm
6+6 BLADES.
reverse rotation
Tapered tip angle:30 degree
It is Custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
