| Brand Name: | NO |
| Model Number: | K16 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | NETRUAL PACKING |
| Delivery Time: | 3-4 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000PCS |
1. MODEL:K16 forward

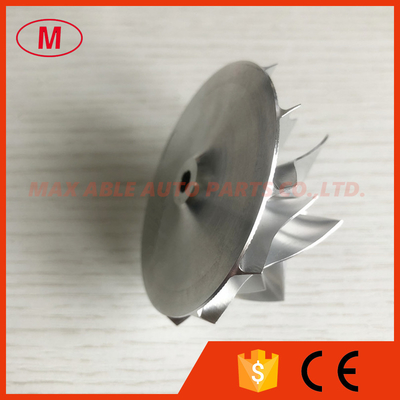

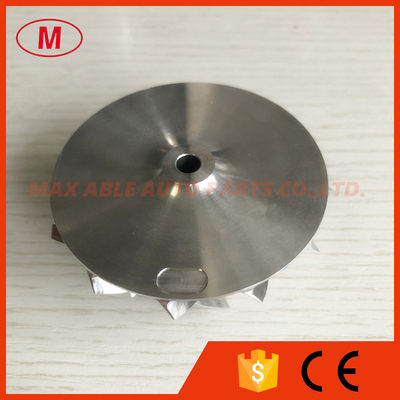

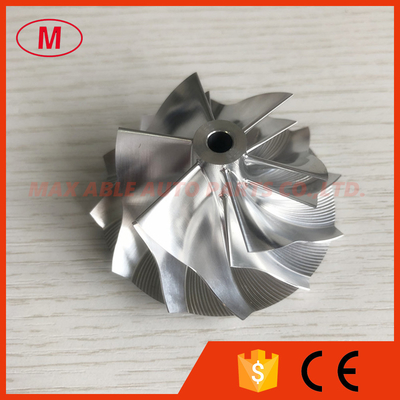

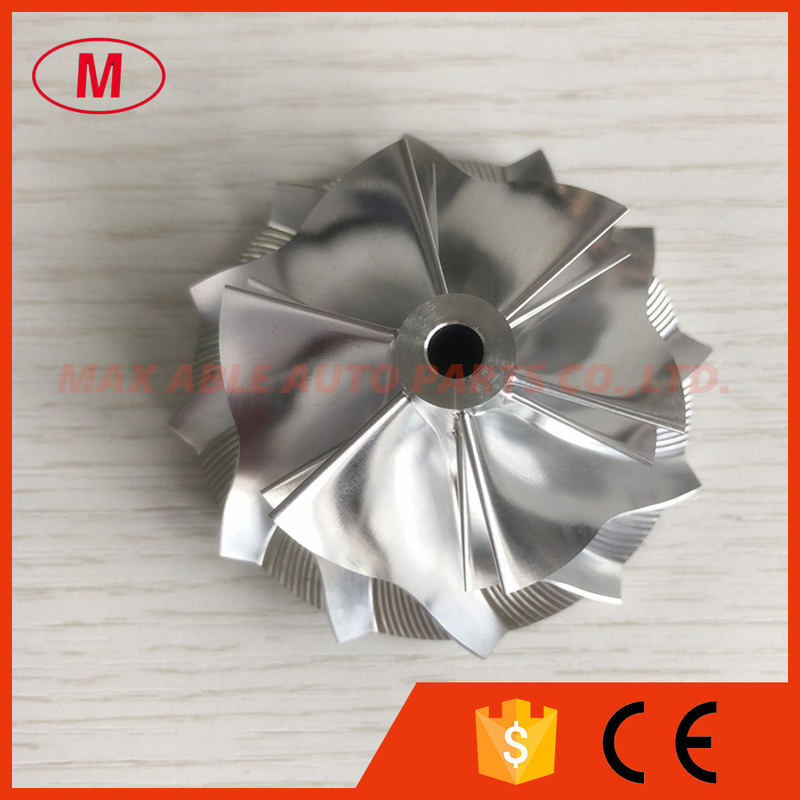

2.K16 5324-123-2203 6+6 blades 47.70/61.98mm high performance turbo billet/milling/aluminum 2618 compressor wheel for Mercedes AMG SL65 5324-970-7703/7706
3.Size:
Nose diameter:11.59mm
inducer:47.70mm
Exduder:61.98mm
Tapered tip exducer:66.27mm
Tip height:4.71mm
Superback:2.67mm
Overall height:32.35mm
bore size :5.41mm
bore type:through
Trailing Angle:50 degree
Cutback:8.00
Blade height:27.43mm
Splitter height:17.20mm
Sp height angle:-2.00
6+6 blades
Forward rotation
Fit for OE compressor housing
Tapred tip angle:30 degree
Application:
5324-970-7703
5324-970-7706
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
