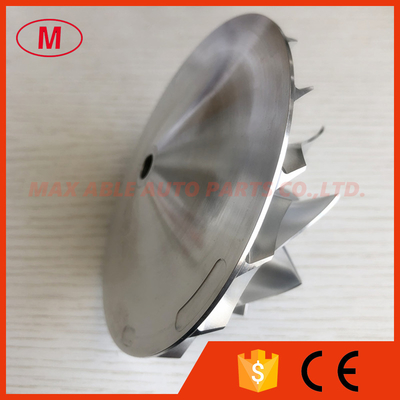

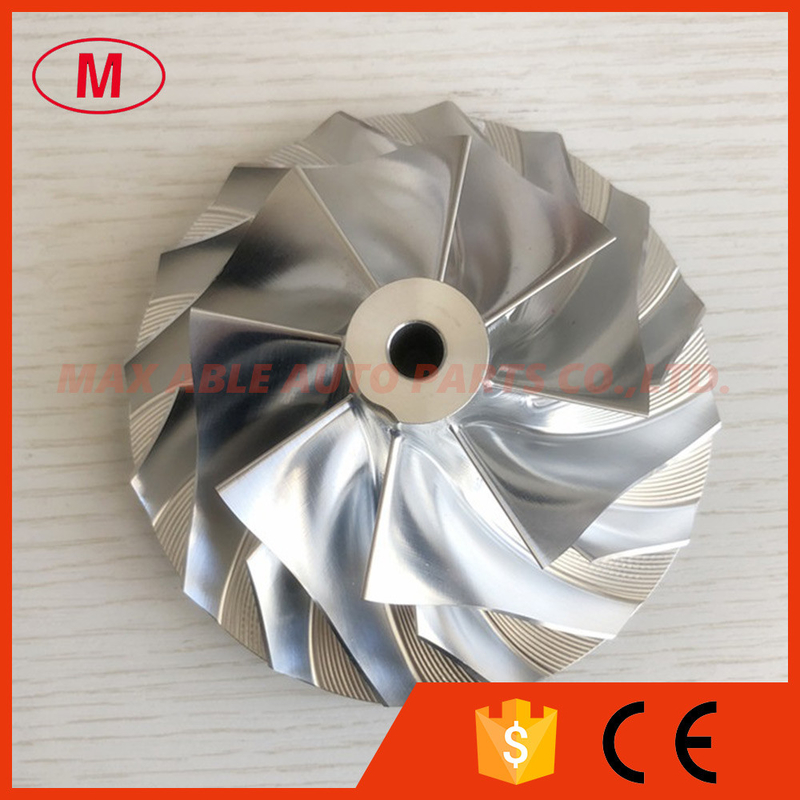

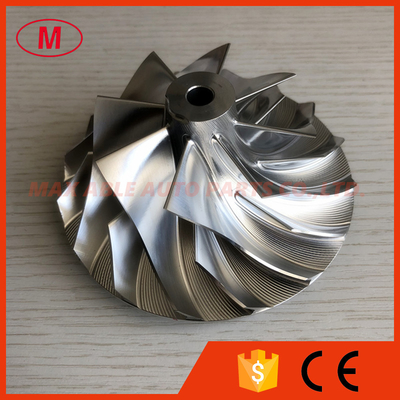

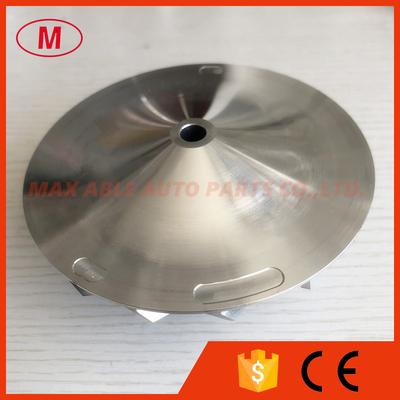

HE551/HX55 71.75/109.00mm 8+8 blades turbo milling/aluminum 2618/billet compressor wheel

HE551/HX55 71.75/109.00mm 8+8 blades turbo milling/aluminum 2618/billet compressor wheel

    • HE551/HX55 71.75/109.00mm 8+8 blades turbo milling/aluminum 2618/billet compressor wheel
    • HE551/HX55 71.75/109.00mm 8+8 blades turbo milling/aluminum 2618/billet compressor wheel
    • HE551/HX55 71.75/109.00mm 8+8 blades turbo milling/aluminum 2618/billet compressor wheel
    • HE551/HX55 71.75/109.00mm 8+8 blades turbo milling/aluminum 2618/billet compressor wheel
  • HE551/HX55 71.75/109.00mm 8+8 blades turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: HE551/HX55

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Size: 71.75/109.00mm Type: Turbochargers

    1.Model:HE551/HX55 forward


    2.HE551/HX55 71.75/109.00mm 8+8 blades turbo billet/milling/aluminum 2618 compressor wheel

    3.SIZE:

    Nose Diameter:20.97mm

    inducer:71.75mm

    Exducer:109.00mm

    Tip height:7.80mm

    Superback:9.68mm

    Overall height:54.00mm

    bore size :8.01mm

    bore type:through

    Trailing Angle:45 degree

    Cutback:2.5mm

    Splitter height:16.15mm

    Sp height angle:-2.50

    Blades height:36.79mm

    8+8 blades

    Forward rotation

    Tapered tip angle:0 degree

    It is for OE compressor housing

    4.Good quality and competitive price

    5. aluminum 2618/milling/ billet high performance compressor wheel



    7.Please send email to me or talk to me on online ,if you want to know more details.

    All the compressro wheels have been balanced

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    HE551/HX55 71.75/109.00mm 8+8 blades turbo milling/aluminum 2618/billet compressor wheelHE551/HX55 71.75/109.00mm 8+8 blades turbo milling/aluminum 2618/billet compressor wheelHE551/HX55 71.75/109.00mm 8+8 blades turbo milling/aluminum 2618/billet compressor wheelHE551/HX55 71.75/109.00mm 8+8 blades turbo milling/aluminum 2618/billet compressor wheelHE551/HX55 71.75/109.00mm 8+8 blades turbo milling/aluminum 2618/billet compressor wheel
