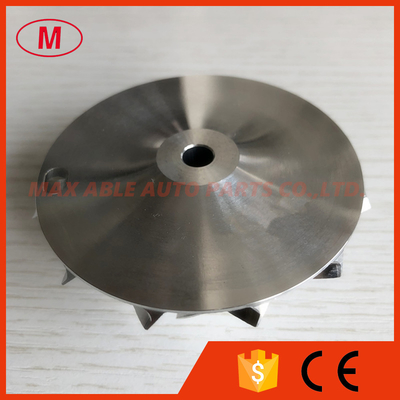

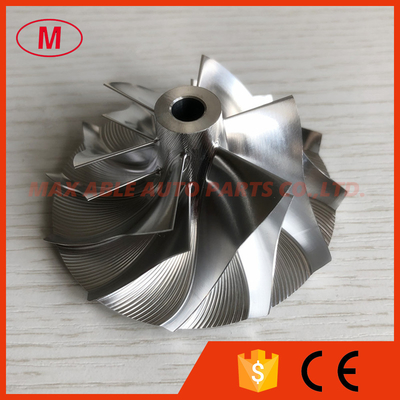

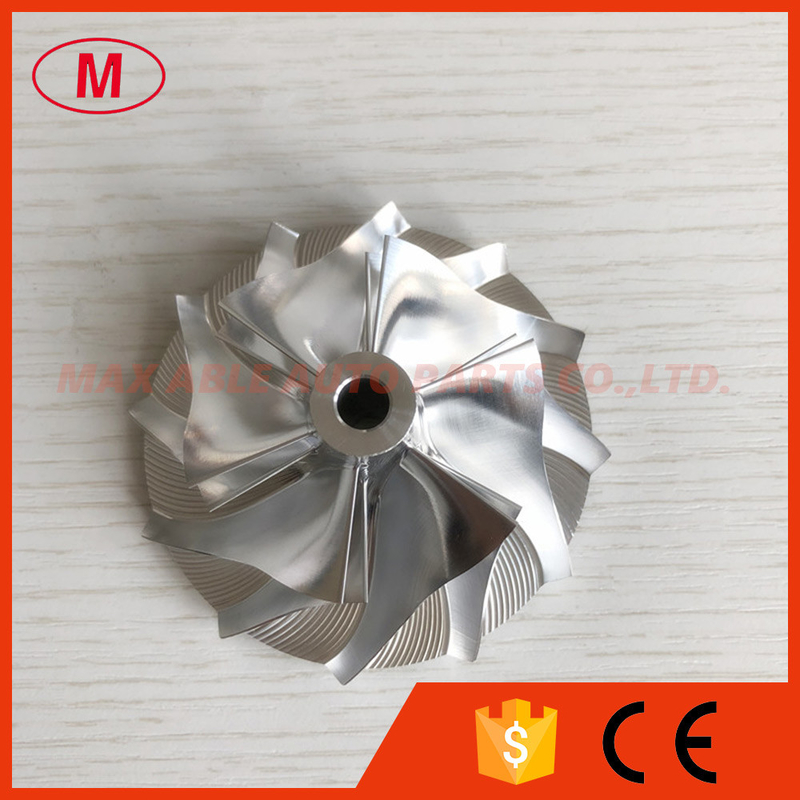

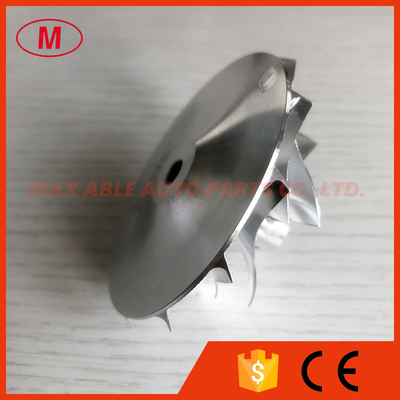

TD05H 16G 48.30/68.01mm 6+6 blades 49178-01560 reverse high performance standard blade Billet/milling compressor wheel

1.  MODEL:TD05H 16G Reverse

2.TD05H 16G 48.30/68.01mm 6+6 blades 49178-01560  reverse high performance standard blade Turbo Billet/milling/Aluminum 2618 compressor wheel

3.Size:

Nose diameter:13.72 mm

inducer:48.30mm

Inducer:68.01mm

Tapered tip exducer:72.18mm

Tip height:4.61mm

Superback:2.90mm

Overall height:31.50mm

 bore size :6.50mm

Trailing angle:60

Blade height:23.60mm

Tapered tip Angle: 30 degree

Cutback:0.0

6+6 blades

​Reverse rotation

It is for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
