| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GT15-25 forward

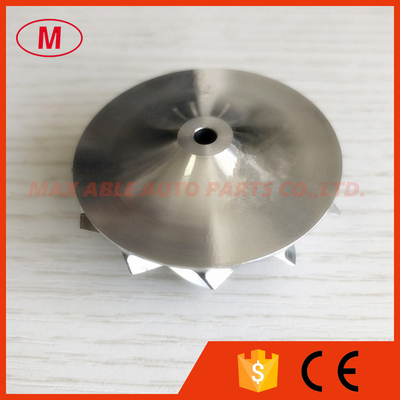

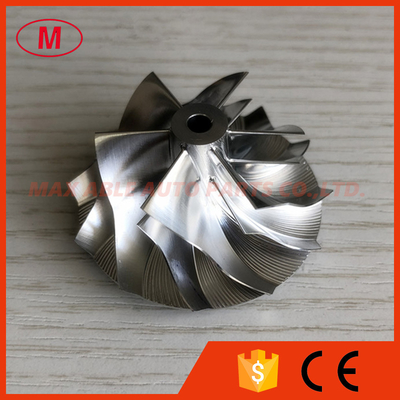

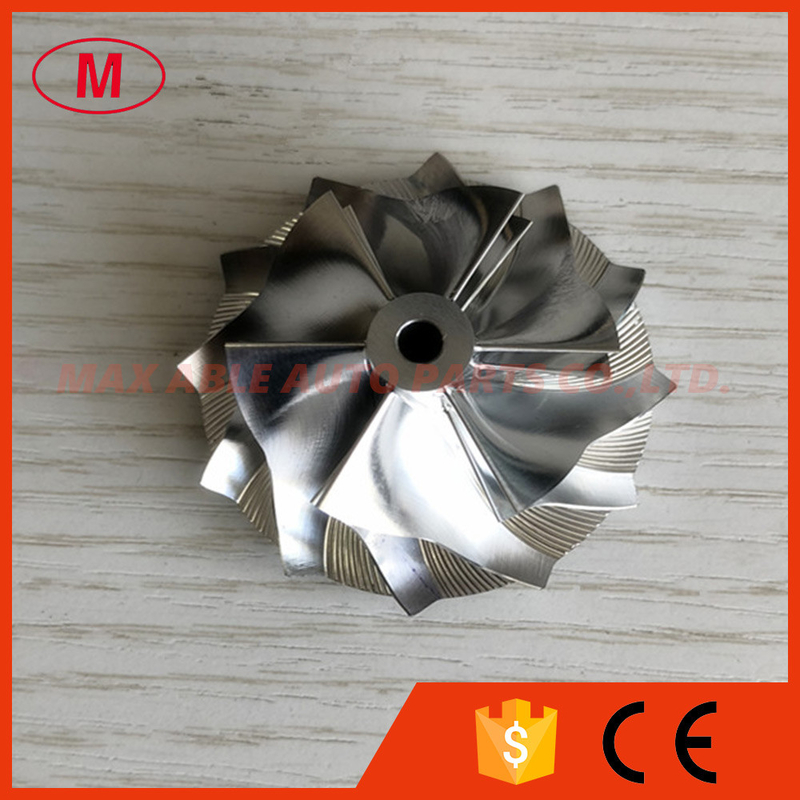

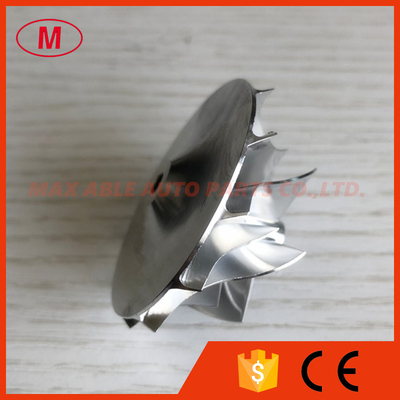

2.GT15-25 36.30/49.00mm 735492-0002J 11+0 blades turbo billet/milling/aluminum 2618 compressor wheel for 757042-0011/0013/0014
3.Size:
Nose diameter:9.70mm
inducer:36.30mm
Exduder:49.00mm
Tapered tip exducer:52.21mm
Tip height:3.78mm
Superback:3.90mm
Overall height:26.40mm
bore size :5.08mm
bore type:through
Trailing Angle:55 degree
Cutback:4.5
SP height angle:0.00
Blade height:20.31mm
Splitter height:0.00
11+0 blades
Forward rotation
Fit for OE compressor housing
Tapered tip Angle:30 degree
Application:
757042-0011
757042-0013
757042-0014
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
ALL the billet compressor wheels have been balanced.
The more models we also have.
