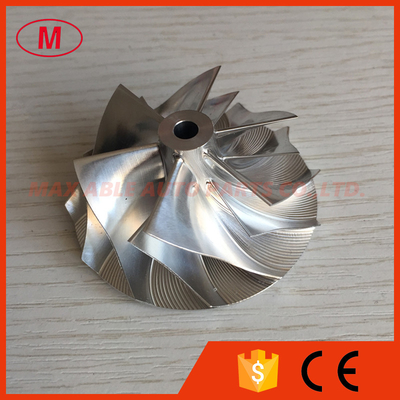

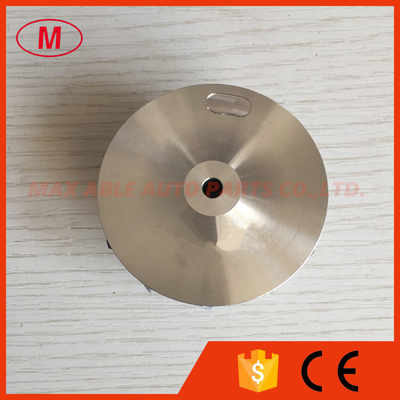

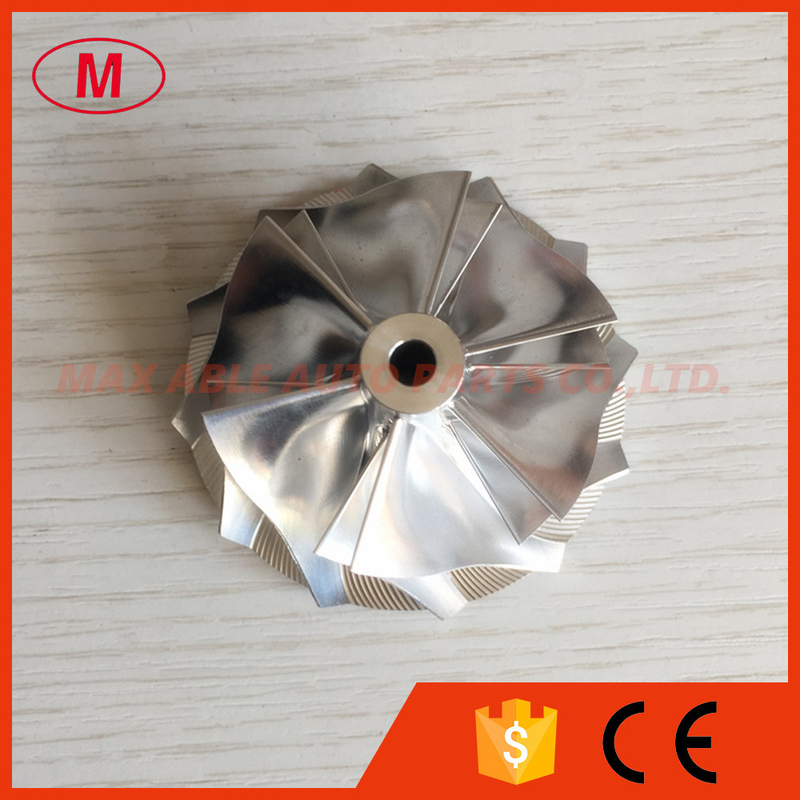

TD04HL 20T 6+6 blades 49189-X 47.04/58.00mm turbo Billet/milling/aluminum 2618 compressor wheel for 49189-07220

TD04HL 20T 6+6 blades 49189-X 47.04/58.00mm turbo Billet/milling/aluminum 2618 compressor wheel for 49189-07220

    • TD04HL 20T 6+6 blades 49189-X 47.04/58.00mm turbo Billet/milling/aluminum 2618 compressor wheel for 49189-07220
    • TD04HL 20T 6+6 blades 49189-X 47.04/58.00mm turbo Billet/milling/aluminum 2618 compressor wheel for 49189-07220
    • TD04HL 20T 6+6 blades 49189-X 47.04/58.00mm turbo Billet/milling/aluminum 2618 compressor wheel for 49189-07220
    • TD04HL 20T 6+6 blades 49189-X 47.04/58.00mm turbo Billet/milling/aluminum 2618 compressor wheel for 49189-07220

    Product Details:

    Brand Name: NO
    Model Number: TD04HL 20T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: NETRUAL PACKING
    Delivery Time: 3-4 DAYS
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1. MODEL:TD04HL 20T forward
    2.TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel for 49189-07220 for Chrysler
    3.Size:
    Nose Diameter:11.37mm
    Inducer:47.04mm
    exducer:58.00mm
    Tapered tip exducer:60.37mm
    Tip height:4.65mm
    Superback:1.90mm
    bore size :5.00mm
    Overall height:26.13mm
    Trailing Angle:60
    Cutback:0.0
    SP height angle:-3.00
    Splitter height:14.90mm
    Blade height:22.10mm
    6+6 blades forward
    ​Tapered tip Angle: 18 degreee
    It is for OE compressor housing
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
