| Brand Name: | NO |
| Model Number: | GTX3583 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 66.30/84.00mm | Type: | Turbochargers |
|---|
1. MODEL:GTX3583 Forward

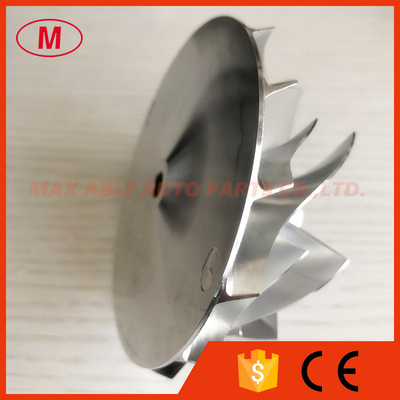

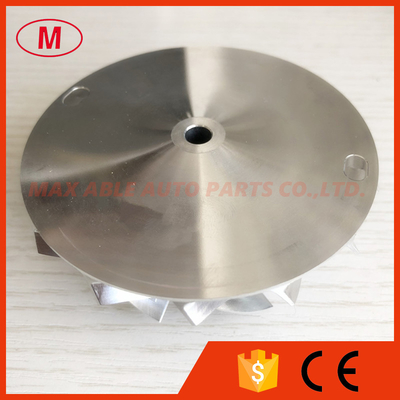

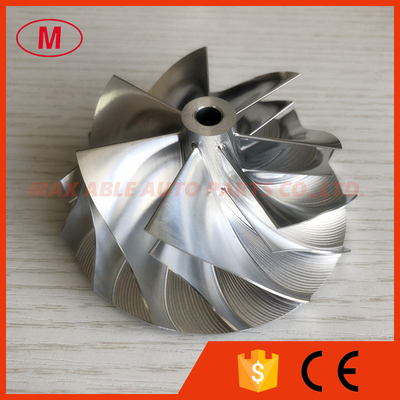

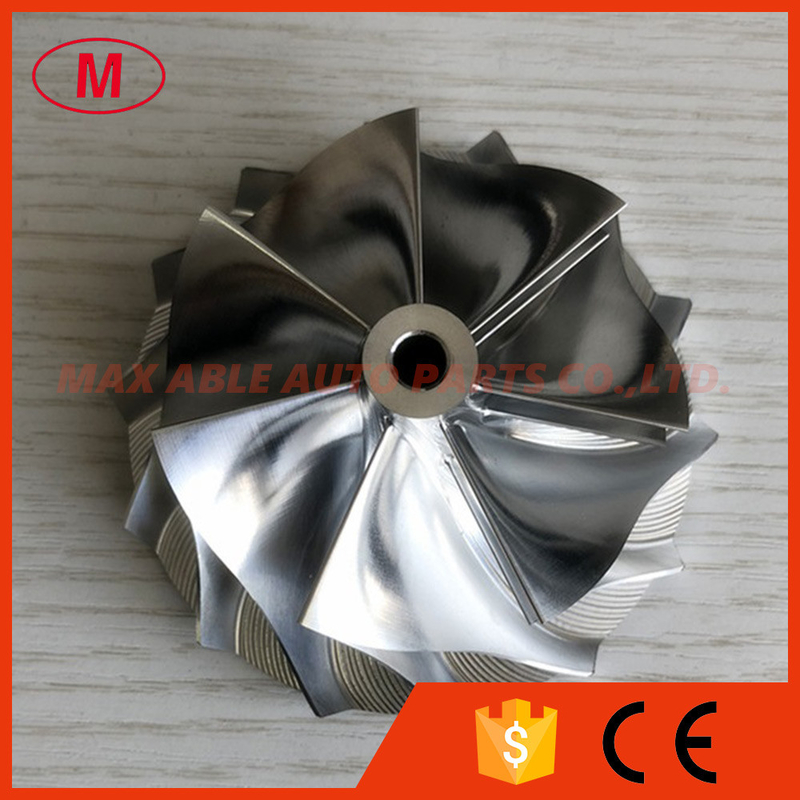

2.GTX3583 66.30/84.00mm 7+7blades turbo billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diamter:13.82mm
inducer:66.30mm
Exduder:84.00mm
Tapered tip:87.87mm
Tip height:6.96mm
Superback:2.35mm
Overall height:38.48mm
bore size :6.35mm
Traling angle:60
Cutback:0.0
SP height angle:-8.80
Splitter height:21.08
Blade height:31.64mm
7+7 blades
Forward rotation
Tapered tip angle:18 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
