| Brand Name: | NO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 50.20/65.00mm | Type: | Turbochargers |
|---|
1.Model:GT15-25 FOWARD

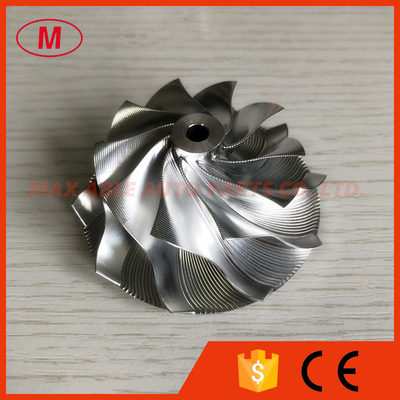

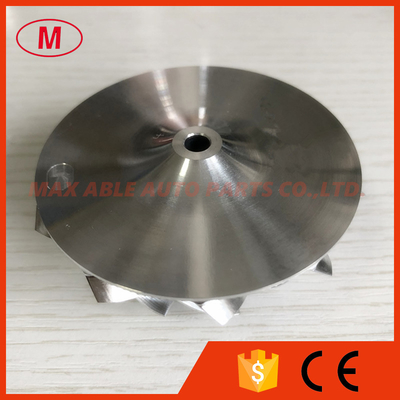

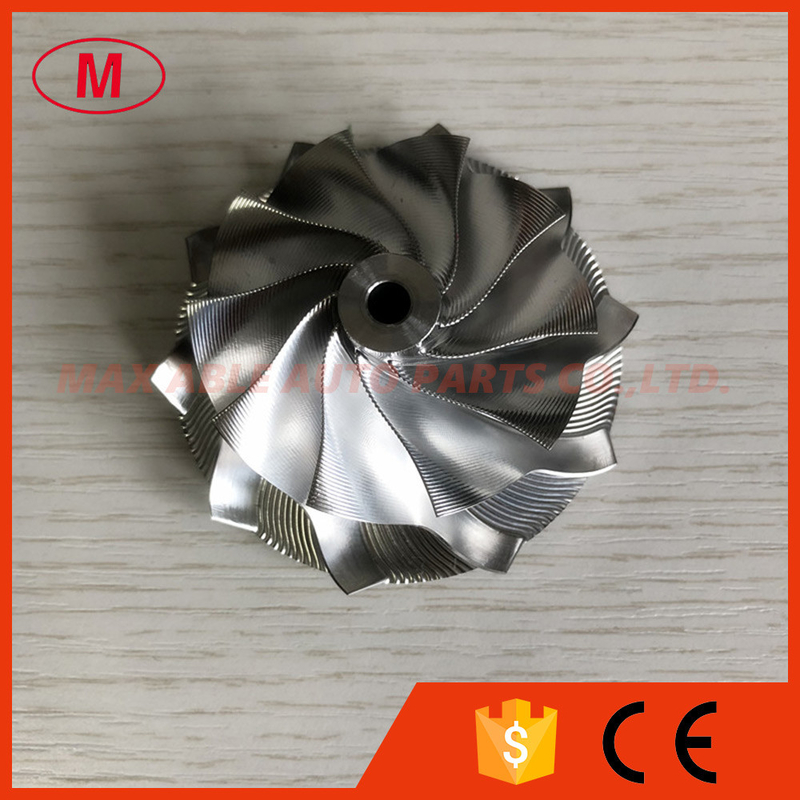

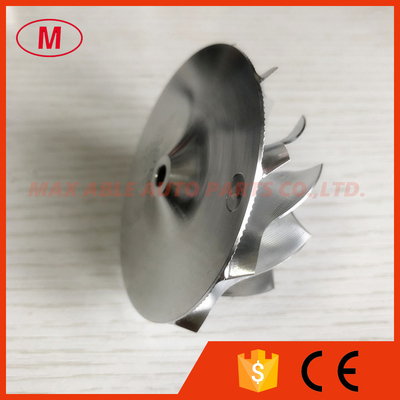

2. GT15-25 point milling 50.20/65.00mm 10+0 Blades 702549-0008HF V1 high performance turbo billet/aluminum 2618/Milling compressor wheel
3.Size:
Nose diameter:11.98mm
Inducer:50.20mm
Exducer:65.00mm
Tapered tip exducer:69.83mm
Tip height:5.19mm
Superback:3.68mm
Overall height:32.28mm
Bore:5.08mm
Trailing angle:45
Cutback:6.0
Blade height:22.50mm
Splitter height:0.00
Splitter height:0.00
10+0 blades foward
Tapered tip angle:30 degree
Forward rotation
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
6.Application:
702549-0008HF
All the compressor wheel have been balanced.
