| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT/western union/paypal |
| Supply Ability: | 1000 |
1. MODEL:RHF5 Forward

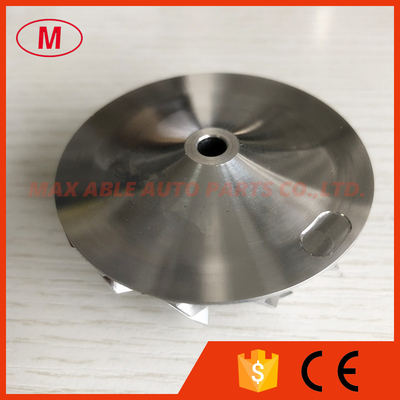

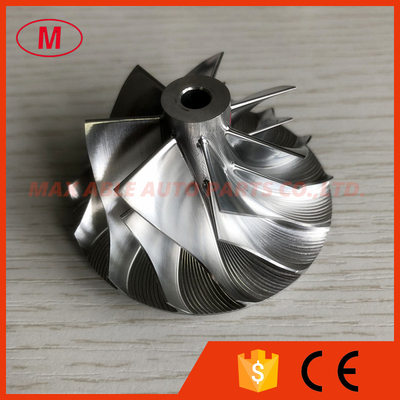

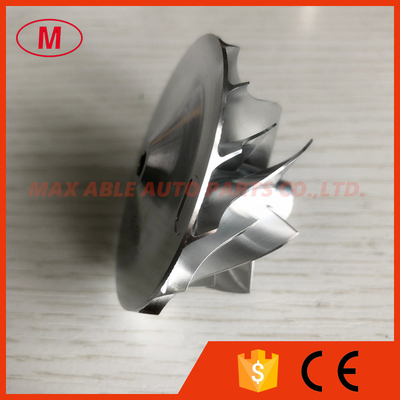

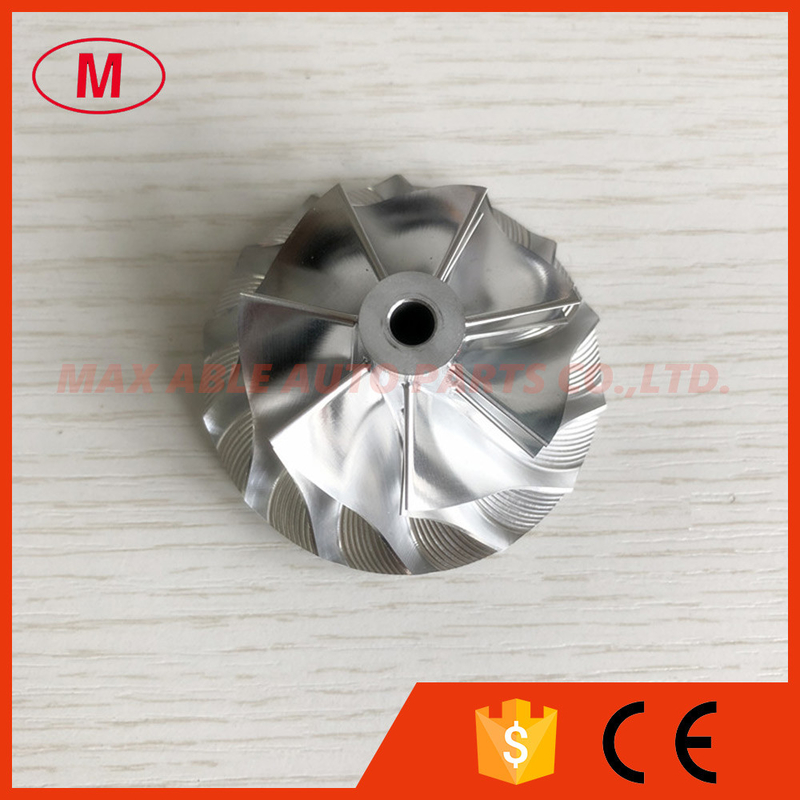

2.RHF5 41.24/56.00mm 7+7 blades Turbo Billet/milling/aluminum 2618 compressor wheel for VIFB
3.Size:
Nose diameter:12.17mm
Inducer:41.24mm
Exducer:56.00mm
Tip height:4.69mm
super back:4.00mm
overall height:31.80mm
bore size :5.10mm
bore type:through
Trailing angle:45
Cutback:4.0
SP height angle:-3.00
Splitter height:14.50mm
Blades height:23.37mm
7+7 blades
forward rotation
Tapered tip angle:0 degree
It is for OE compressor housing
4.Application:
VIFB
5.High quality and competitive price.
6.Any questions please send email to me.
All the compressor wheel have been balanced.
