| Model Number: | RHF55 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:RHF55 forward

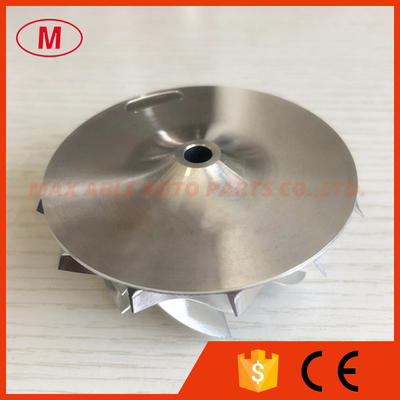

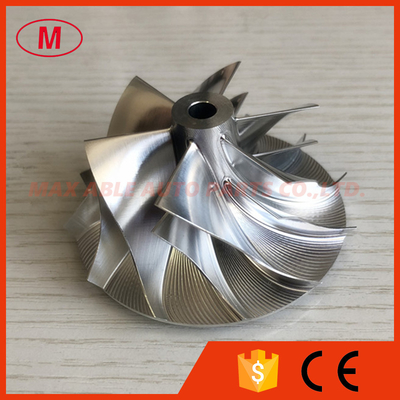

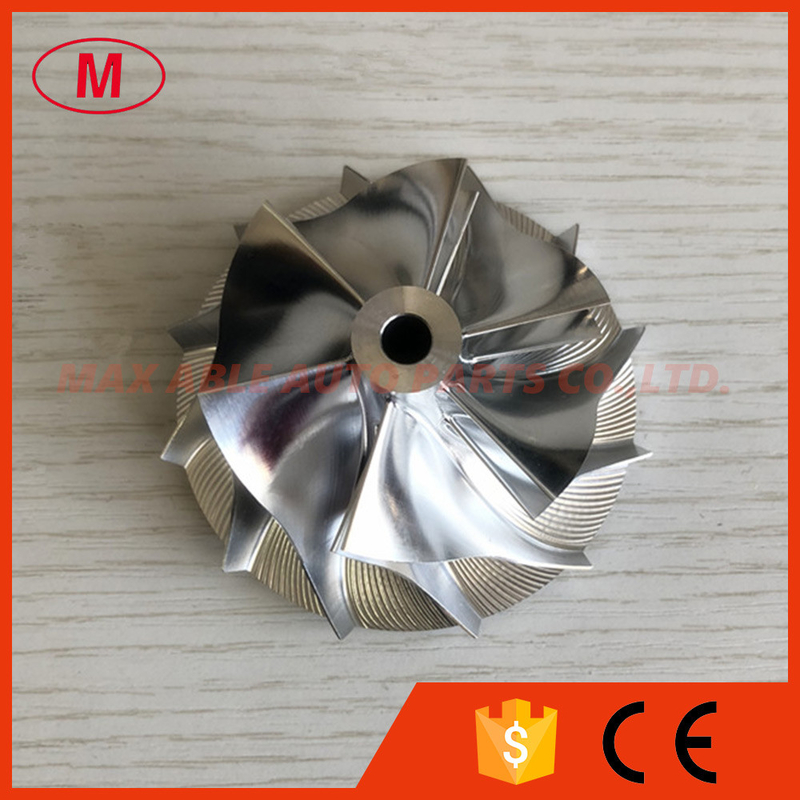

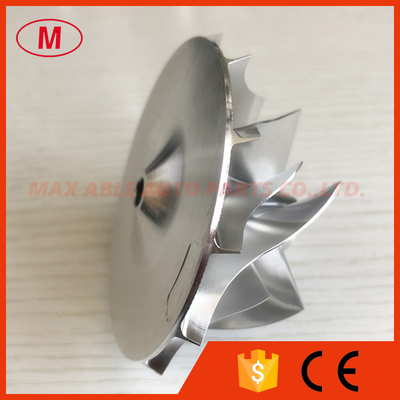

2. RHF55 20G 52.56/68.01mm 6+6 Blades high performance billet/milling/aluminum 2618 turbo compressor wheel
3.Size:
Nose diameter:13.50mm
Inducer:52.56mm
Exducer:68.01mm
Tapered tip exducer :72.85mm
Tip height:5.20mm
Superback:3.68mm
Overall height:35.98mm
Bore Size:6.10mm
bore type:through
Trailing angle:75 degree
Cutback:0.0
SP height angle:-7.50
Splitter height:19.95mm
Blades height:28.90mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price.
5.if you want to know more details ,please send email to me !
We have more model you want.
All the compressor wheels have been balanced.
